Rear Fender Liner: Service and Repair

Rear Fender Cover Replacement

Left side

NOTE:

- Put on gloves to protect your hands.
- Take care not to scratch the rear bumper.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

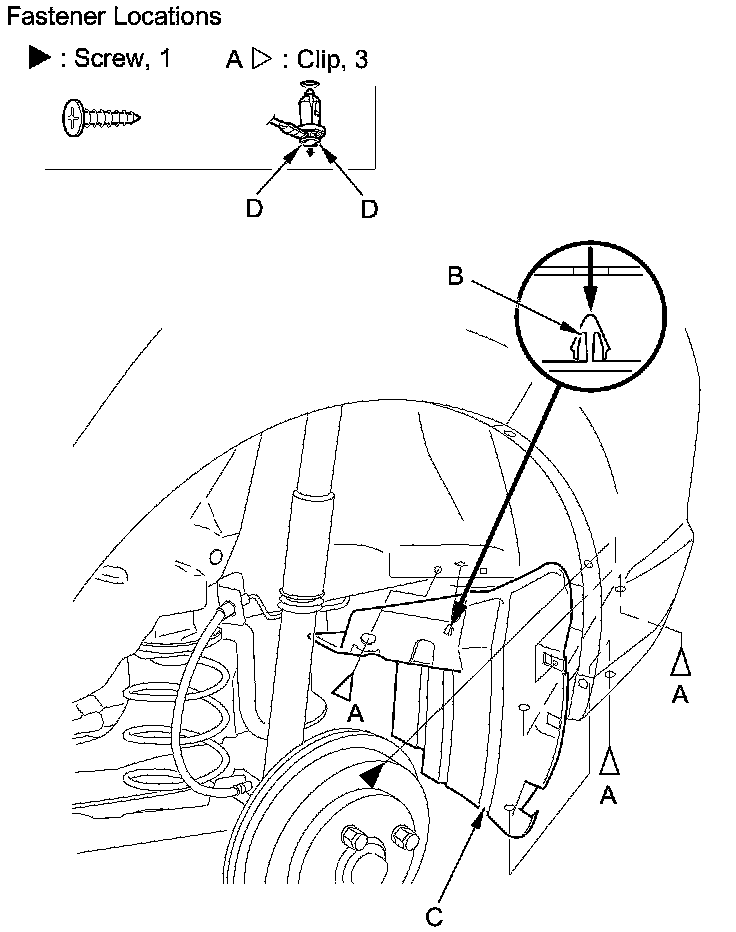

1. Remove the screw and the clips (A, B), then remove the rear fender cover (C).

NOTE: To release the clips, pry up on the center pin at the notch (D).





2. Install the rear fender cover in the reverse order of removal, and note these items:

- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.

Right side

NOTE:

- Put on gloves to protect your hands.
- Take care not to scratch the rear bumper.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

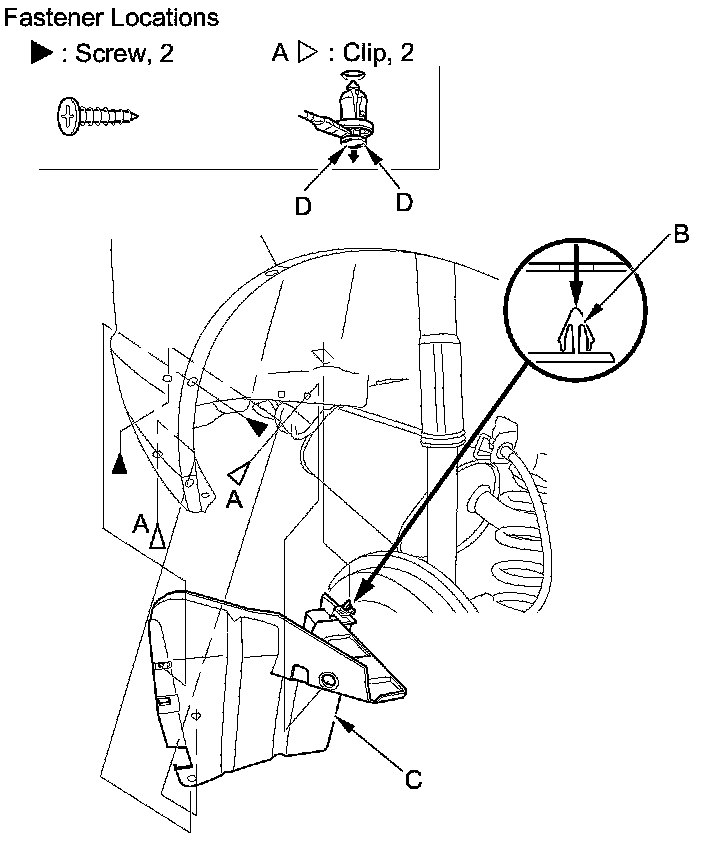

1. Remove the screws and the clips (A, B), then remove the rear fender cover (C).

NOTE: To release the clips, pry up on the center pin at the notch (D).





2. Install the rear fender cover in the reverse order of removal, and note these items:

- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
