Rocker Arm Assembly Installation

Rocker Arm Assembly Installation

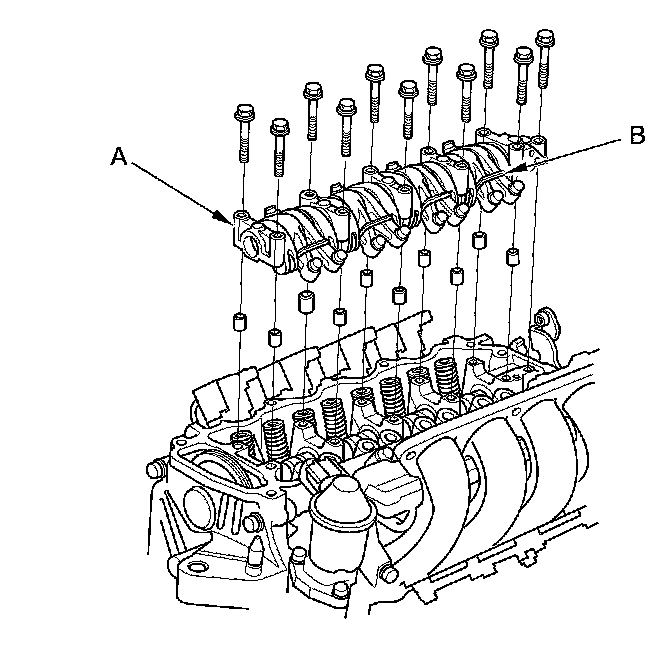

1. Install the rocker arm assembly (A), then remove the rubber bands (B).

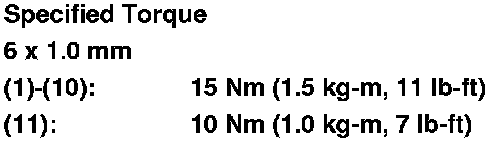

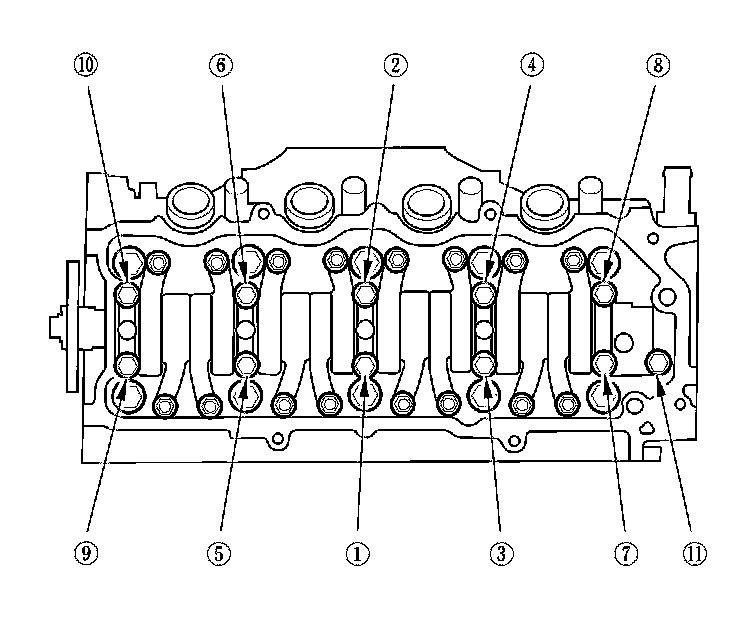

2. Tighten each bolt two turns at a time in sequence.









3. Adjust the valve clearance Adjustments.

4. Install the cylinder head cover Cylinder Head Cover Installation.
