Locations
>>
Connector And Harness Locations
>>
Subharness
>>
Front Fog Light Subharness (Canada Models)
Front Fog Light Subharness (Canada Models)

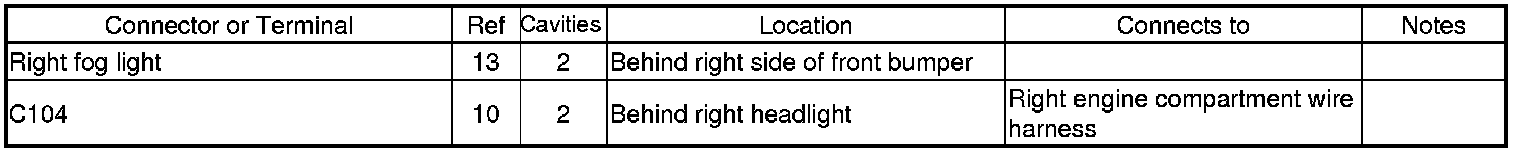

Connector and Harness Locations

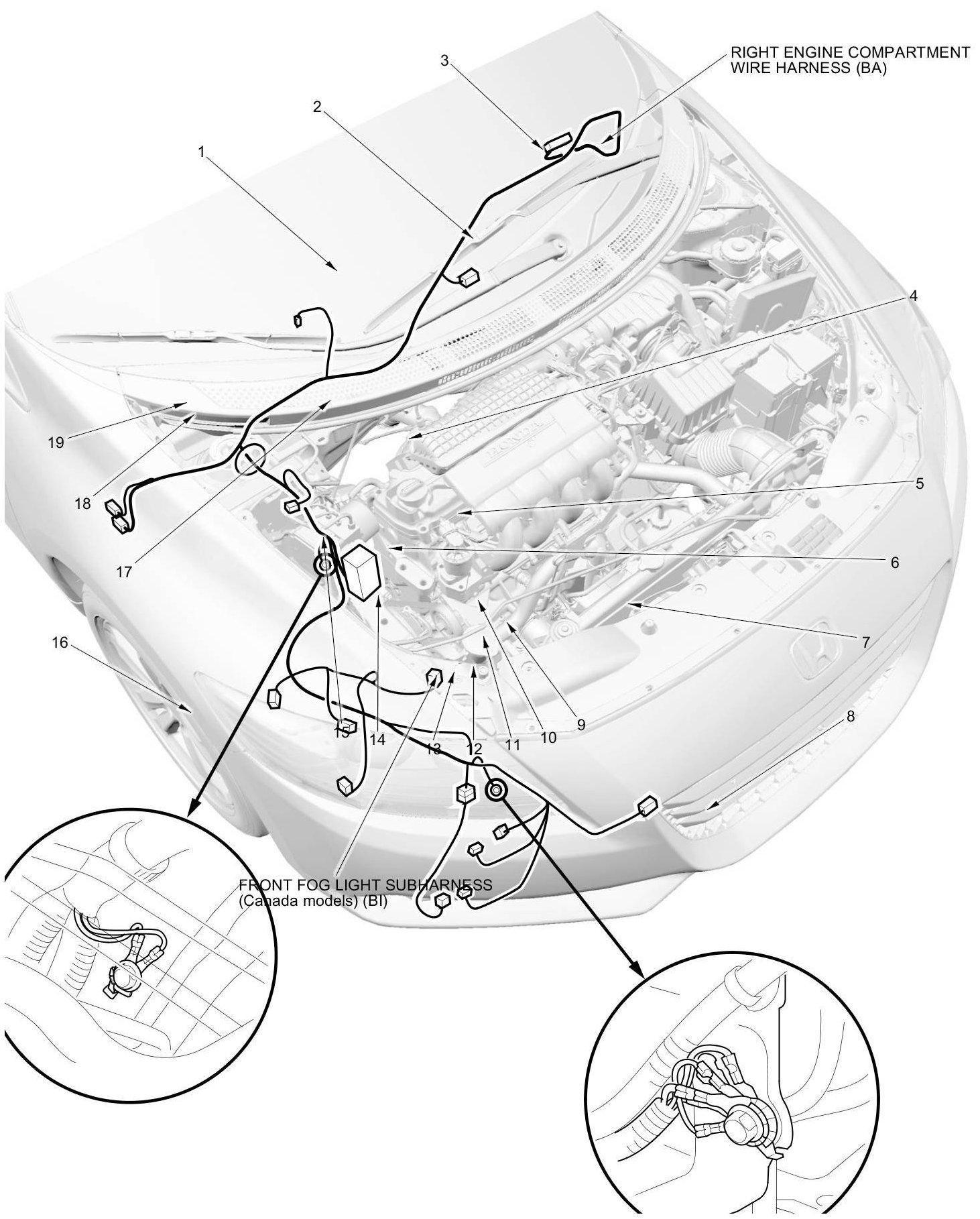

Front Fog Light Subharness (Canada models) (BI)
