Rear Seat-Back Striker Replacement

Rear Seat-Back Striker Replacement

1. Remove these items:

- Cargo area side trim panel both sides
- IPU module air duct IPU Module Air Duct Removal/Installation

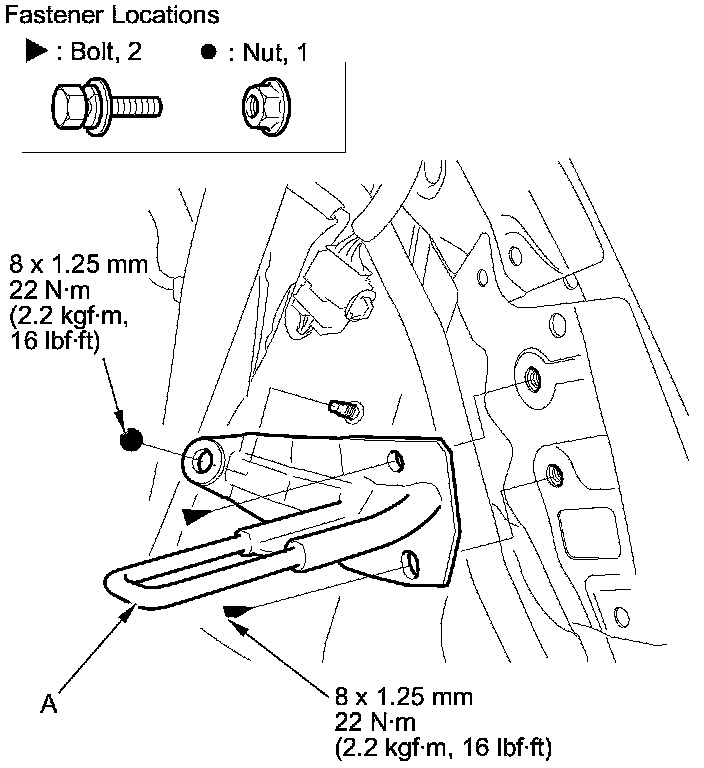

2. Left side: Remove the bolts and nut, then remove the rear seat-back striker (A).

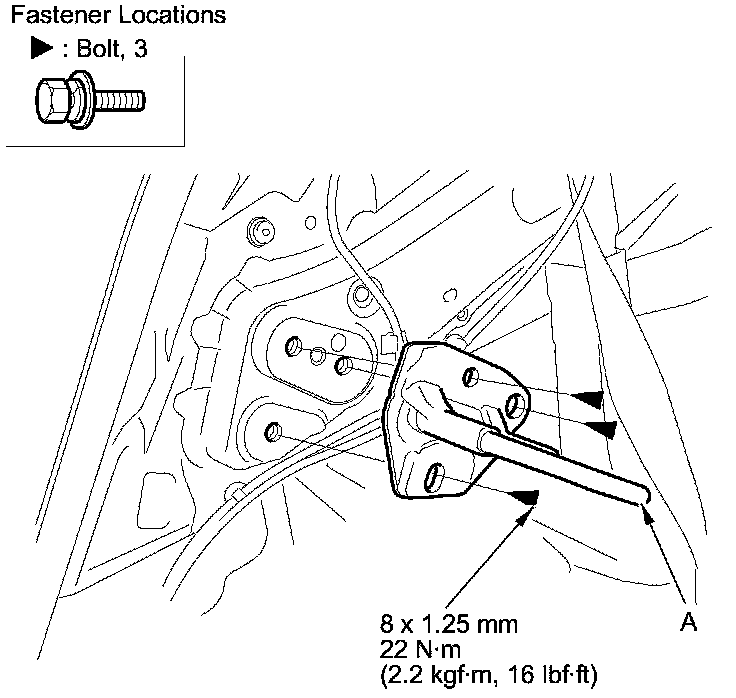

3. Right side: Remove the bolts, then remove the rear seat-back striker (A).

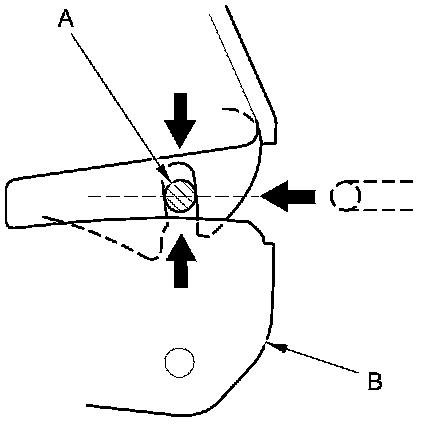

4. Install the striker in the reverse order of removal, and move the striker (A) up or down until it is centered in the seat-back latch (B).
