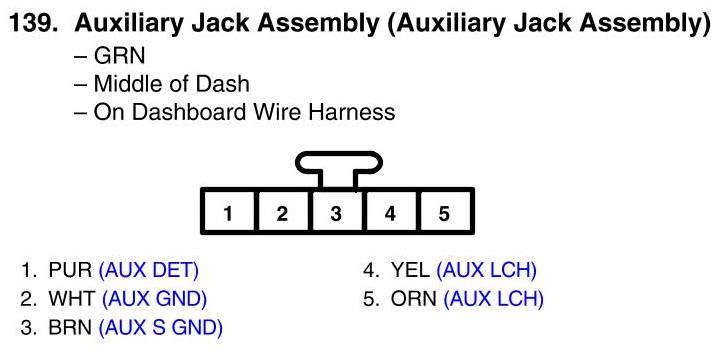

View 139 - Auxiliary Jack Assembly Connector View (Auxiliary Jack Assembly)
View 139 - Auxiliary Jack Assembly Connector View (Auxiliary Jack Assembly)
