Overhaul

Steering Wheel Disassembly and Reassembly

Disassembly

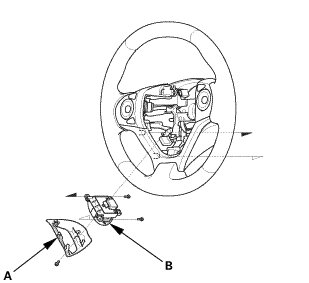

1. HFL Switch





1. Remove the lid (A).

2. Remove the HFL switch (B).

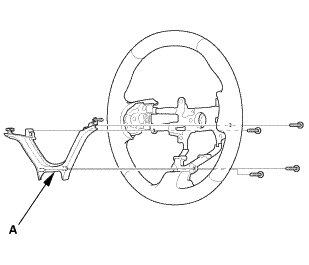

2. Steering Wheel Rear Cover





1. Remove the steering wheel rear cover (A).

3. Steering Wheel Harness





1. Remove the cable reel subharness (A).

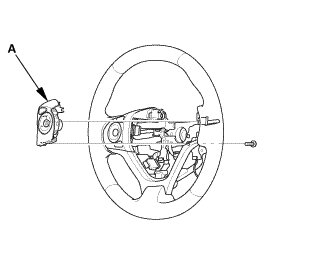

4. Audio Remote Switch





1. Remove the audio remote switch (A).

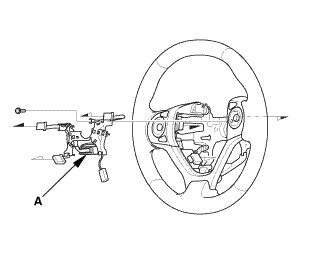

5. Cruise Control/Speed Limiter Switch (Except Si)/Cruise Control Combination Switch(Si)





1. Remove the cruise control/speed limiter switch (except Si)/cruise control combination switch (Si) (A).

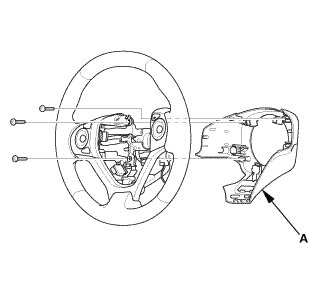

6. Steering Wheel Trim Assembly





1. Remove the steering wheel trim (A).

Reassembly

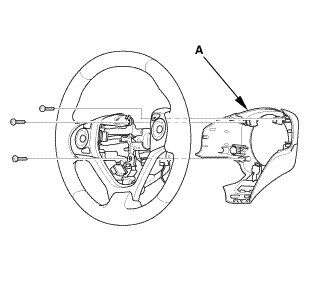

1. Steering Wheel Trim Assembly





1. Install the steering wheel trim (A).

2. Cruise Control/Speed Limiter Switch (Except Si)/Cruise Control Combination Switch(Si)





1. Install the cruise control/speed limiter switch (except Si)/cruise control combination switch (Si) (A).

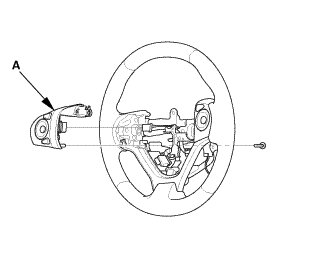

3. Audio Remote Switch





1. Install the audio remote switch (A).

4. Steering Wheel Harness





1. Install the cable reel subharness (A).

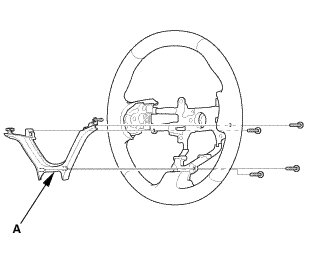

5. Steering Wheel Rear Cover





1. Install the steering wheel rear cover (A).

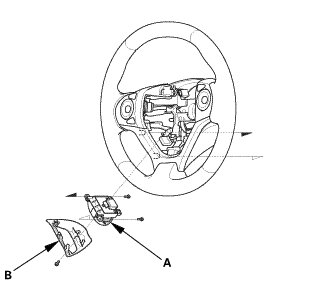

6. HFL Switch





1. Install the HFL switch (A).

2. Install the lid (B).
