Camshaft Gear/Sprocket: Specifications

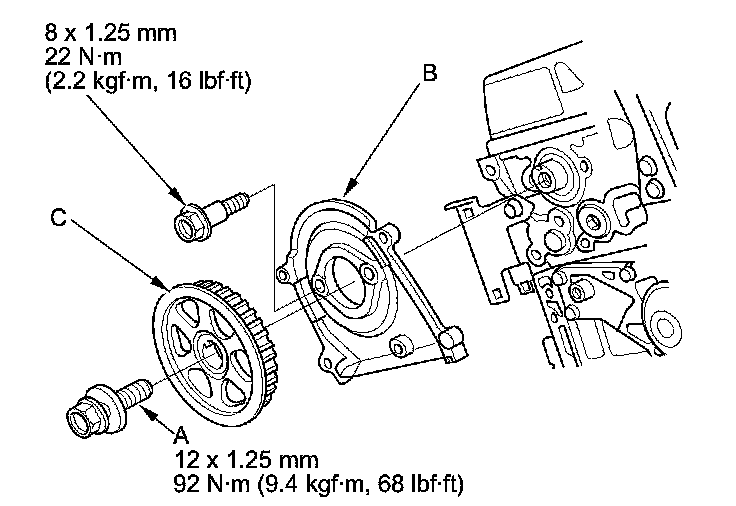

Front

Camshaft pulley mounting bolt (A). Install the back cover (B), then install the camshaft pulley (C).

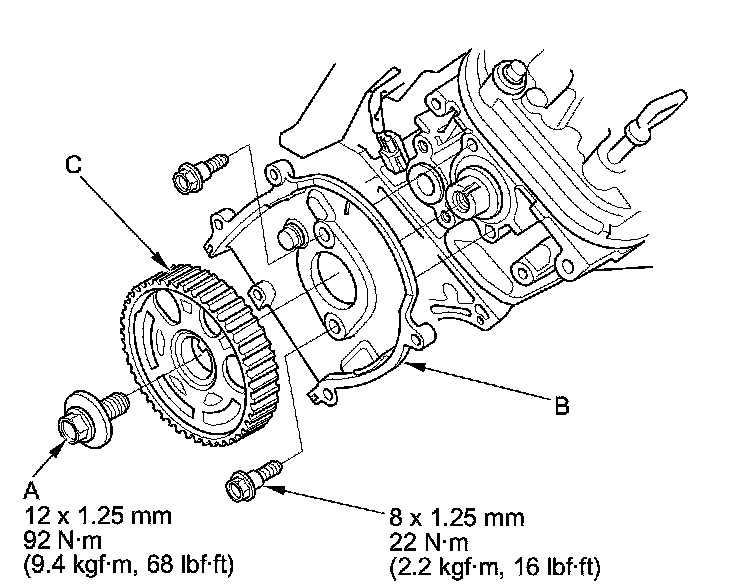

Rear

Camshaft pulley mounting bolt (A). Install the back cover (B), then install the camshaft pulley (C).
