Home >> Hummer >> 2006 >> H2 V8-6.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Compressor/Pump, Suspension Control >> Air Suspension Compressor - 1 (Except Early Production SUV)

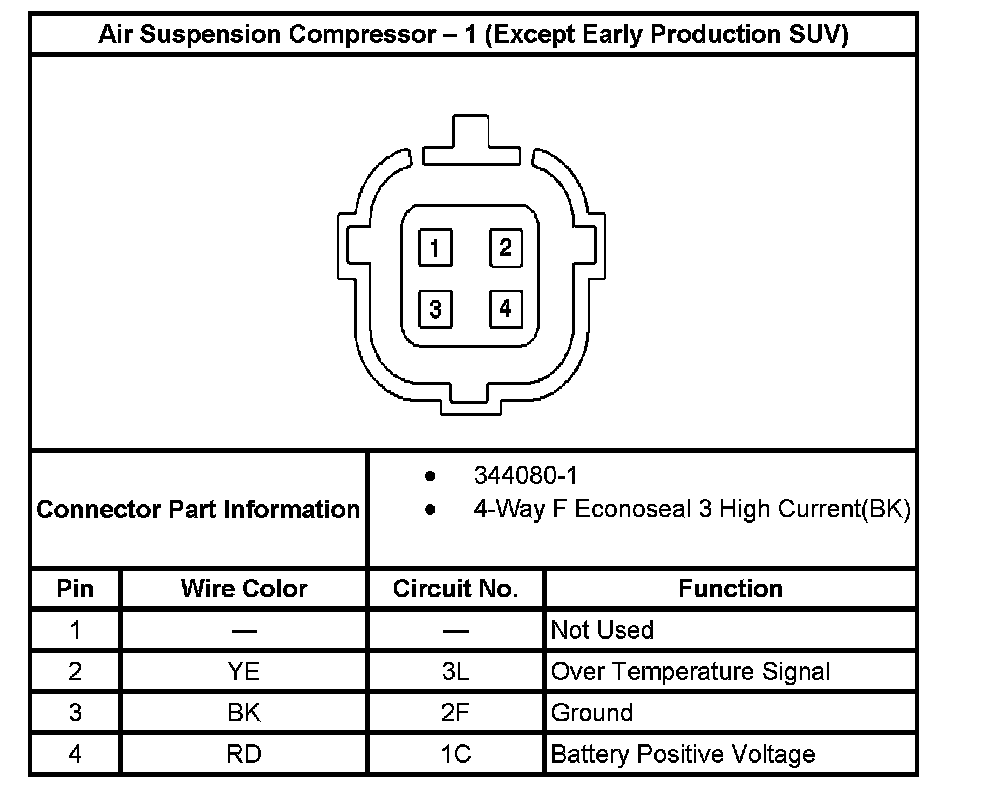

Air Suspension Compressor - 1 (Except Early Production SUV)

Air Suspension Compressor - 1 (Except Early Production Suv):
