Door Courtesy Lamp - Right Rear
Door Courtesy Lamp - Right Rear

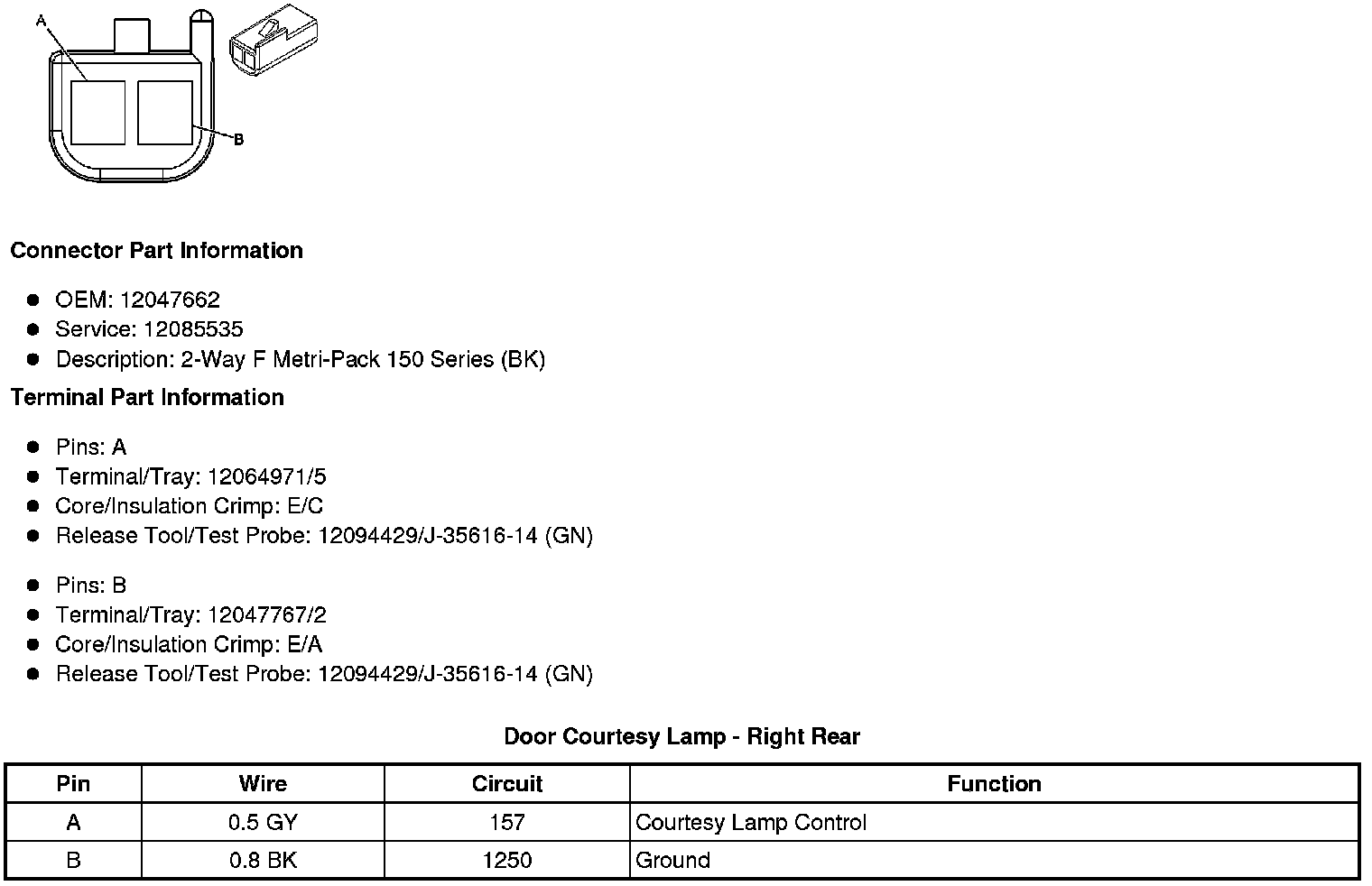

Component Connector End Views
Door Courtesy Lamp - Right Rear
