Hood Rear Seal Replacement

Hood Rear Seal Replacement

Removal Procedure

1. Open the hood.

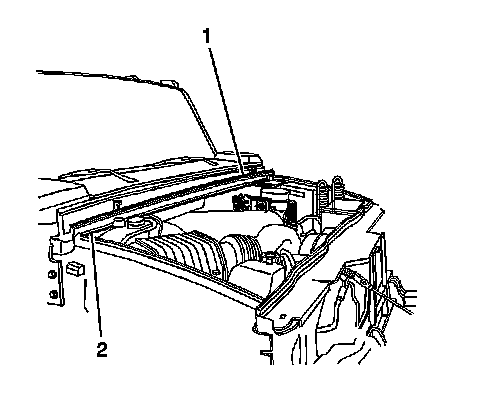

2. Remove the rear hood seal (1) by pulling up on the seal from one end.

Installation Procedure

1. Open the hood.




2. Install the rear hood seal (1) by pressing the seal onto the flange (2). Ensure that the seal is fully seated.
3. Close the hood.
