X248

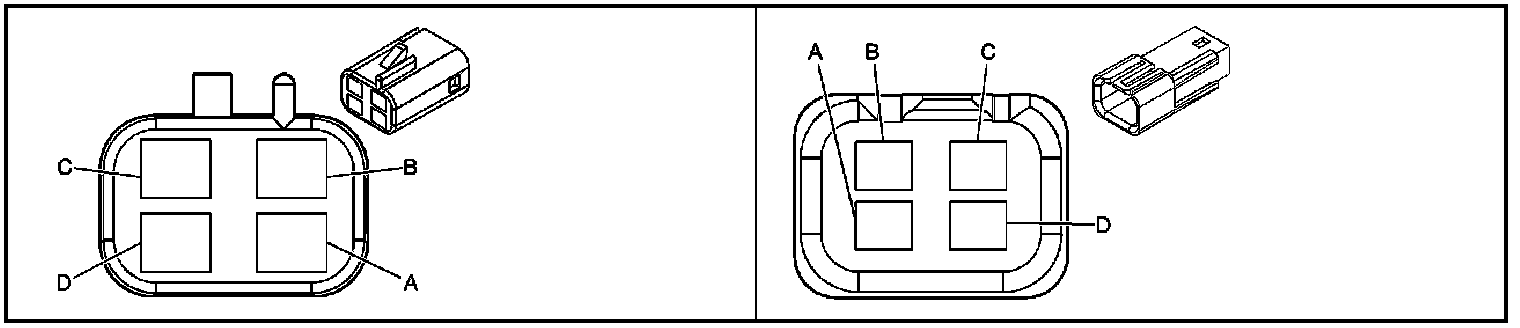

Inline Harness Connector End Views

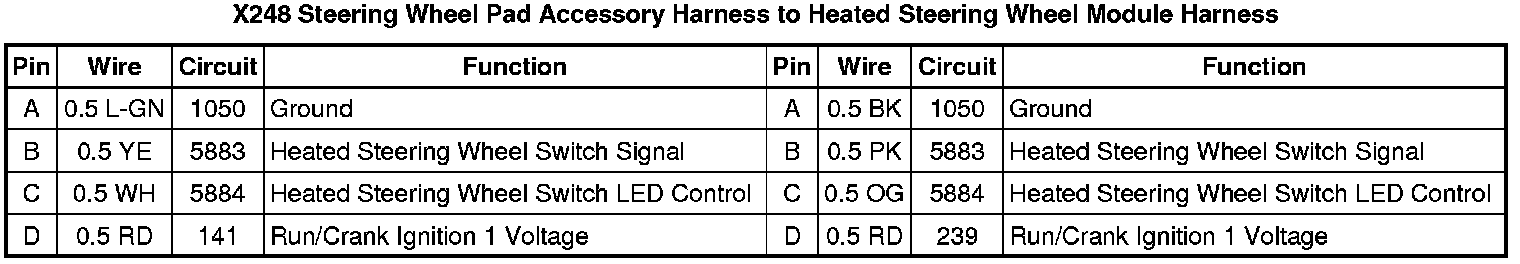

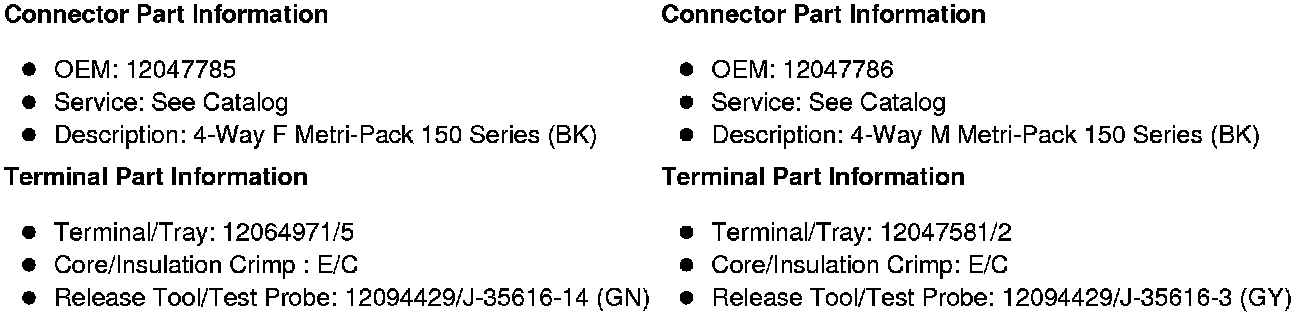

X248 Steering Wheel Pad Accessory Harness to Heated Steering Wheel Module Harness
