Home >> Hummer >> 2009 >> H2 V8-6.2L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> X100 - X199 >> X158

X158

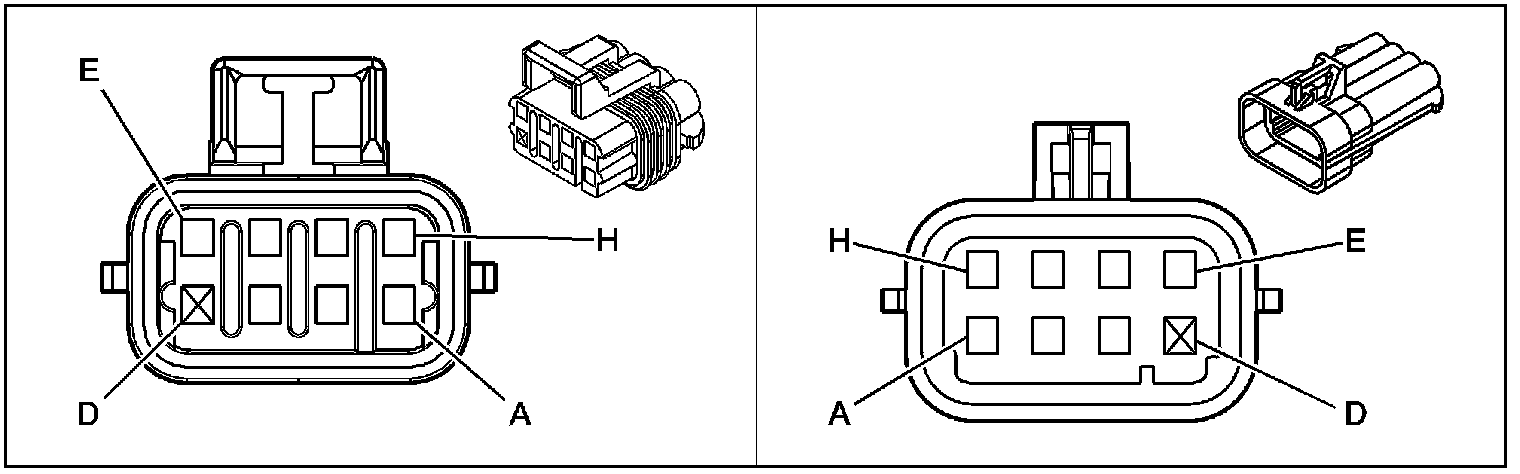

Inline Harness Connector End Views

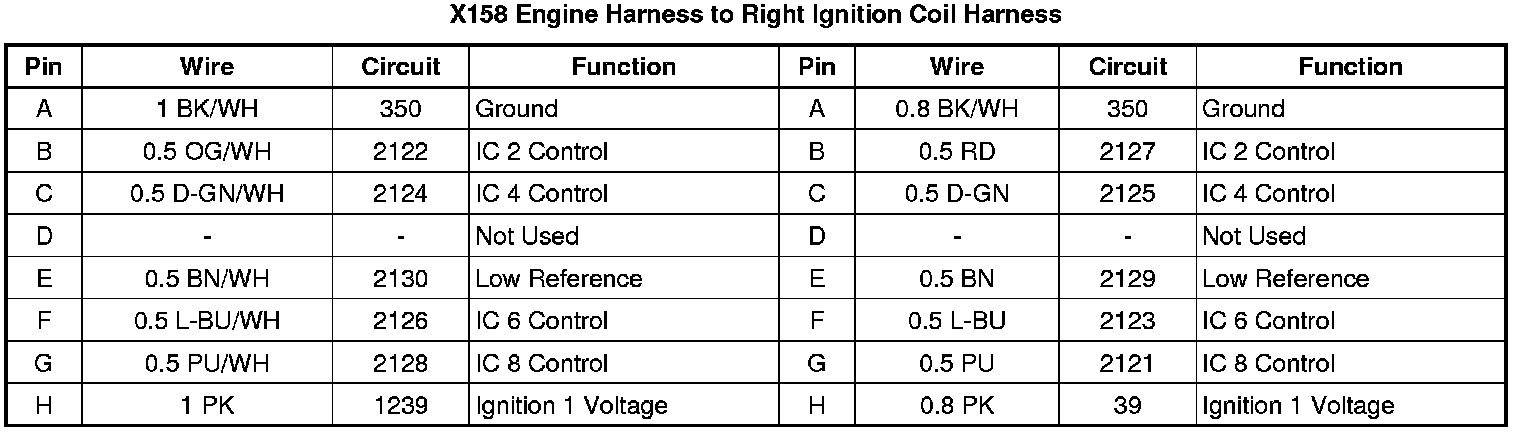

X158 Engine Harness to Right Ignition Coil Harness
