X246

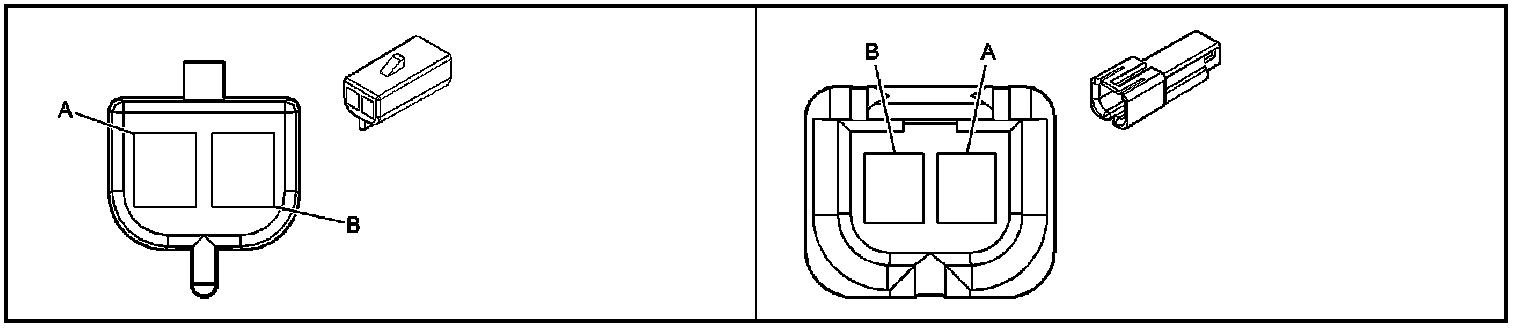

Inline Harness Connector End Views

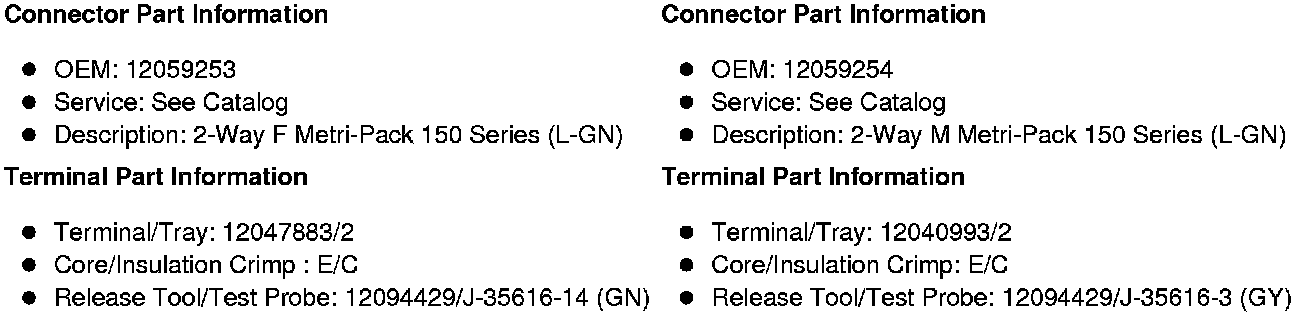

X246 Steering Column Coil Harness to Steering Column Harness
