X247

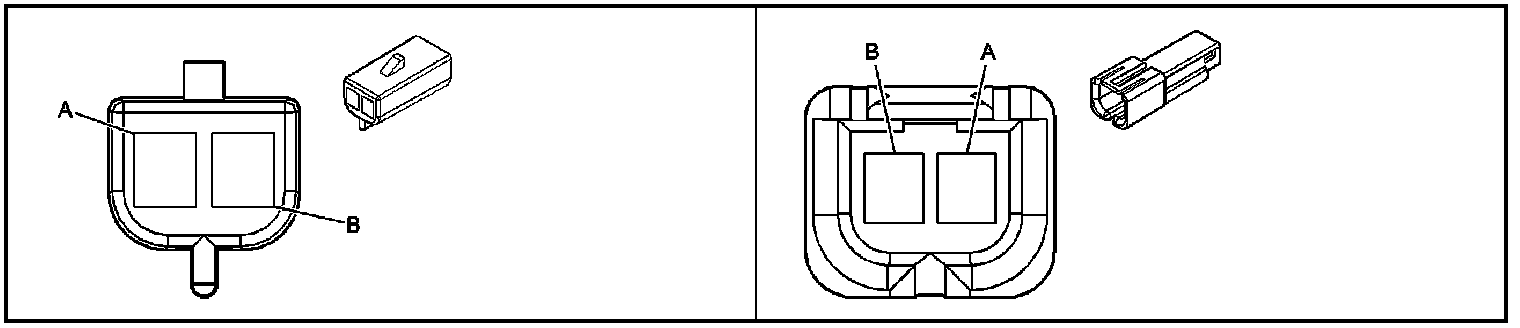

Inline Harness Connector End Views

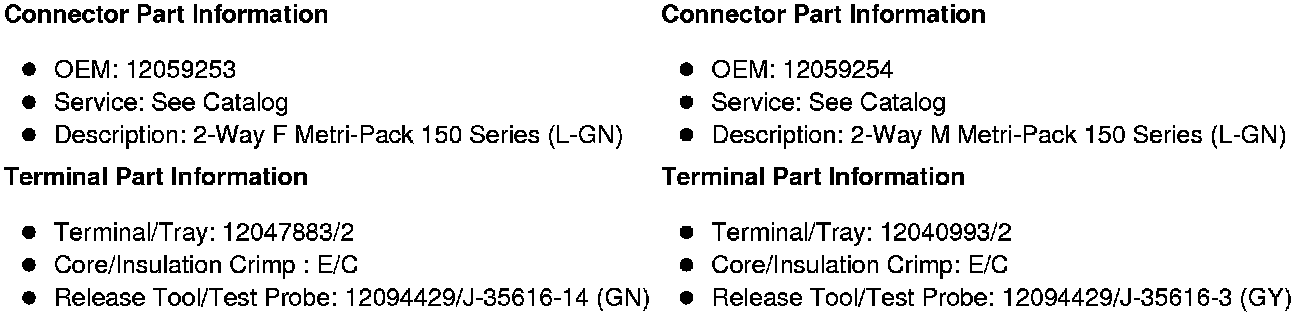

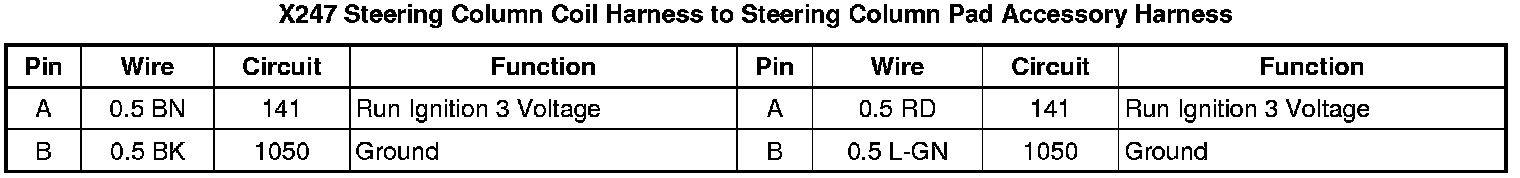

X247 Steering Column Coil Harness to Steering Column Pad Accessory Harness
