Home >> Hummer >> 2009 >> H2 V8-6.2L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> X400 - X499 >> X450

X450

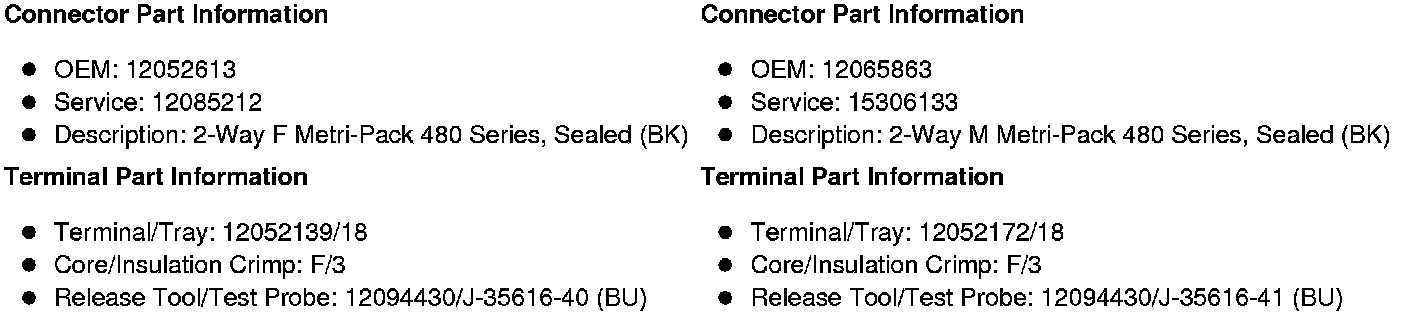

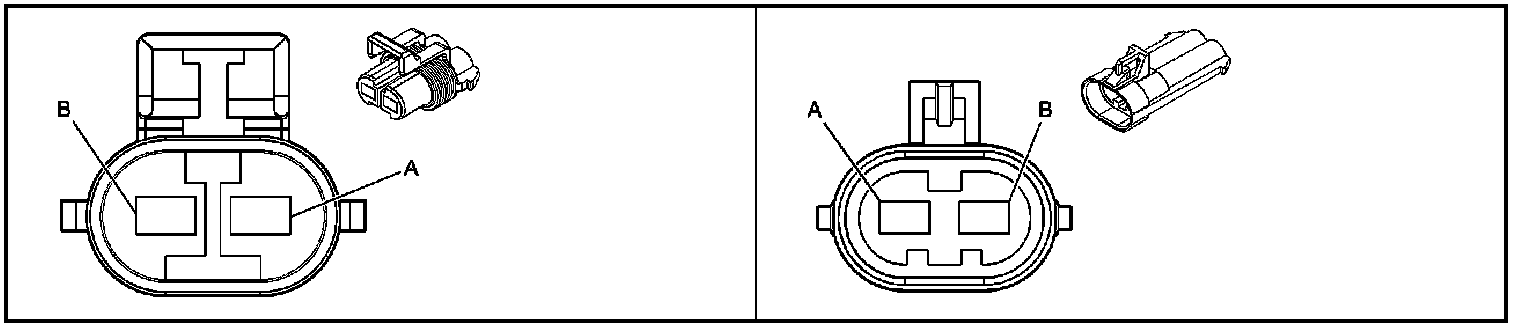

Inline Harness Connector End Views

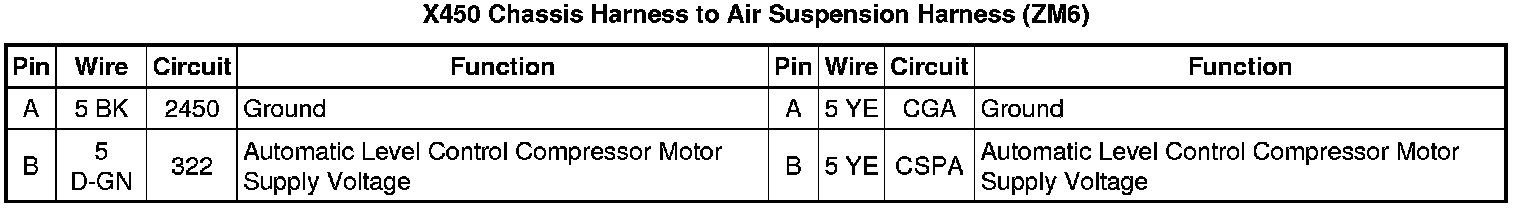

X450 Chassis Harness to Air Suspension Harness (ZM6)
