C Connectors (Control Harness)

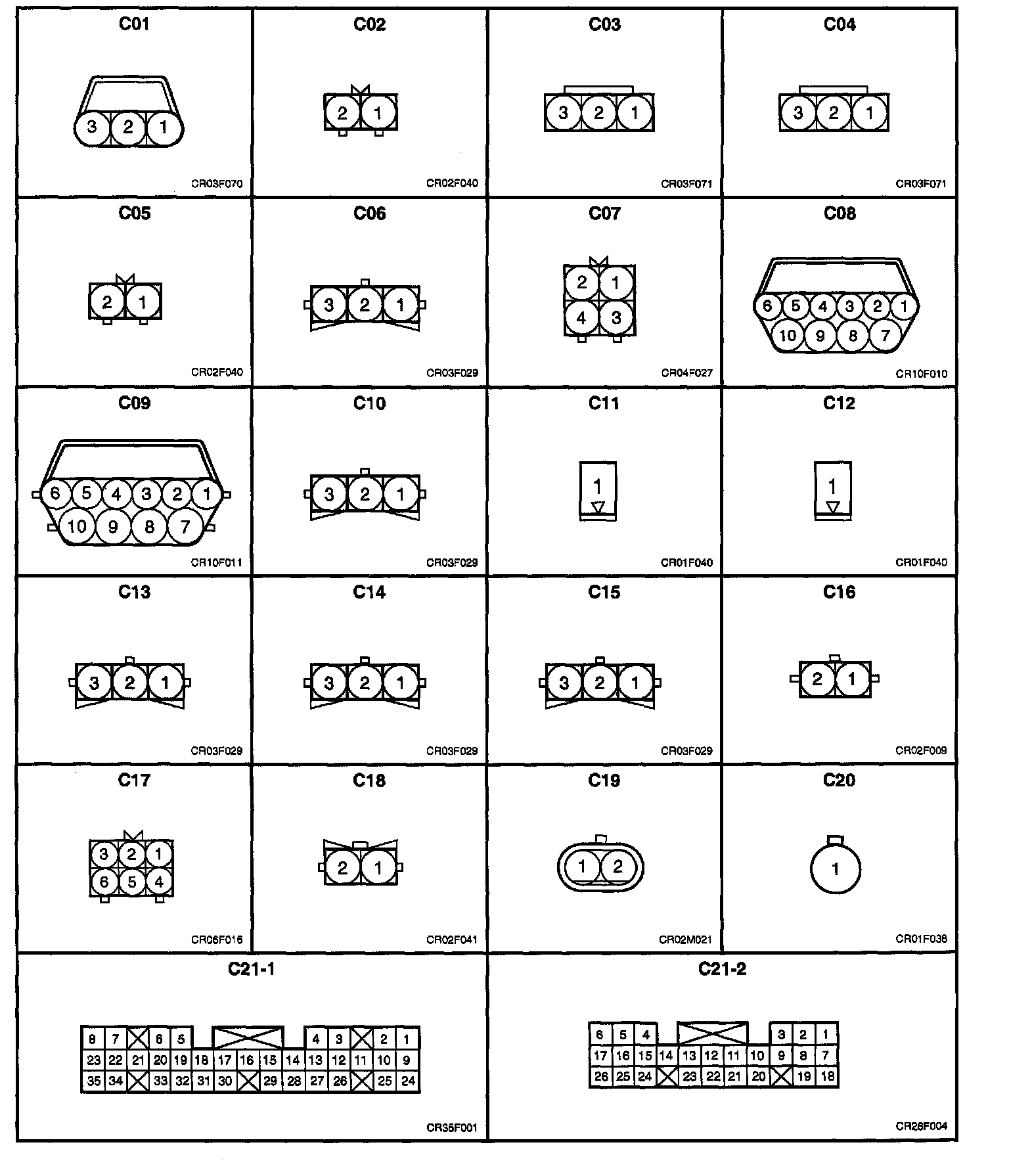

C01 - C20, C21-1 - C21-2:

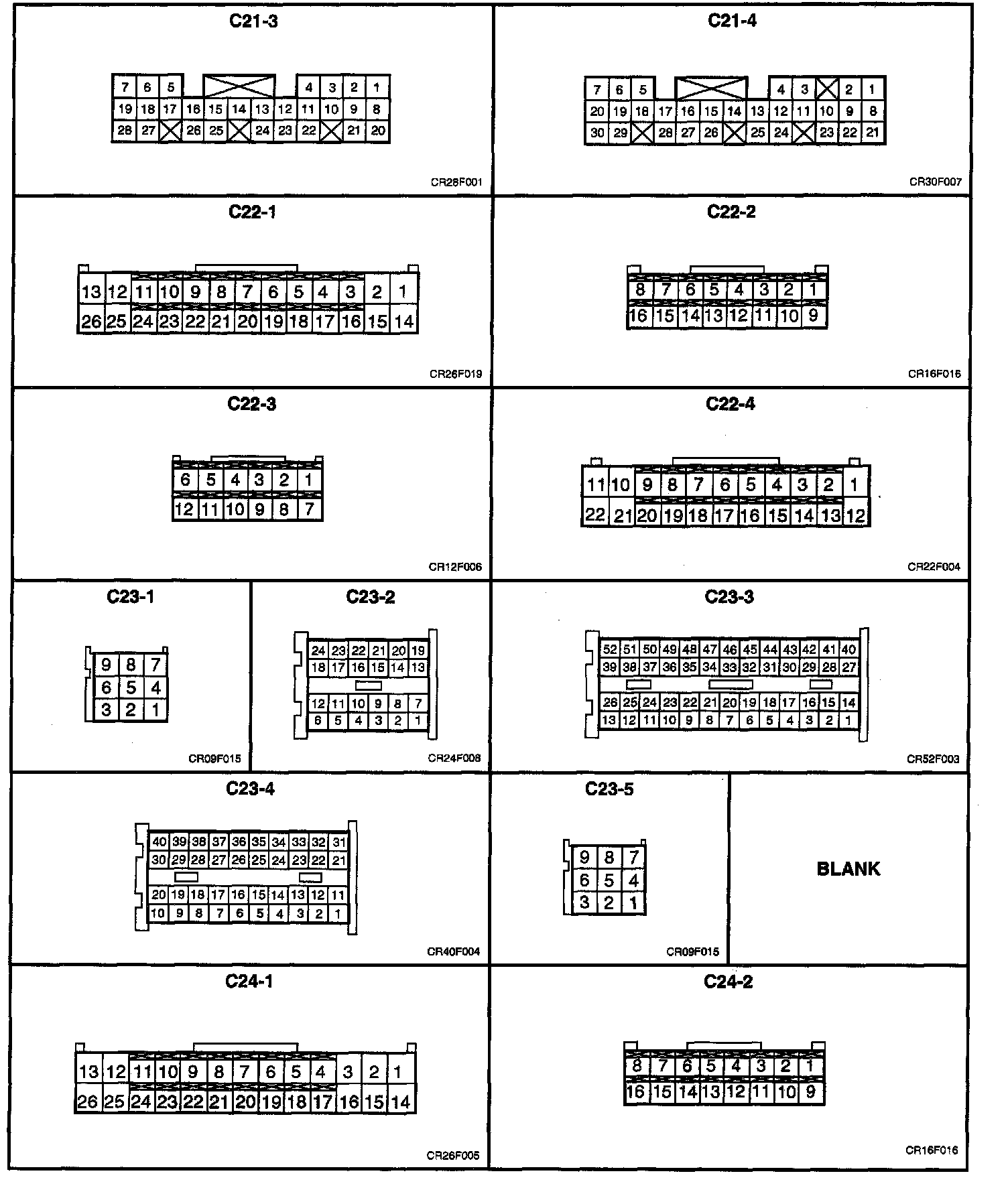

C21-3 - C21-4, C22-1 - C22-4, C23-1 - C23-5, C24-1 - C24-2:

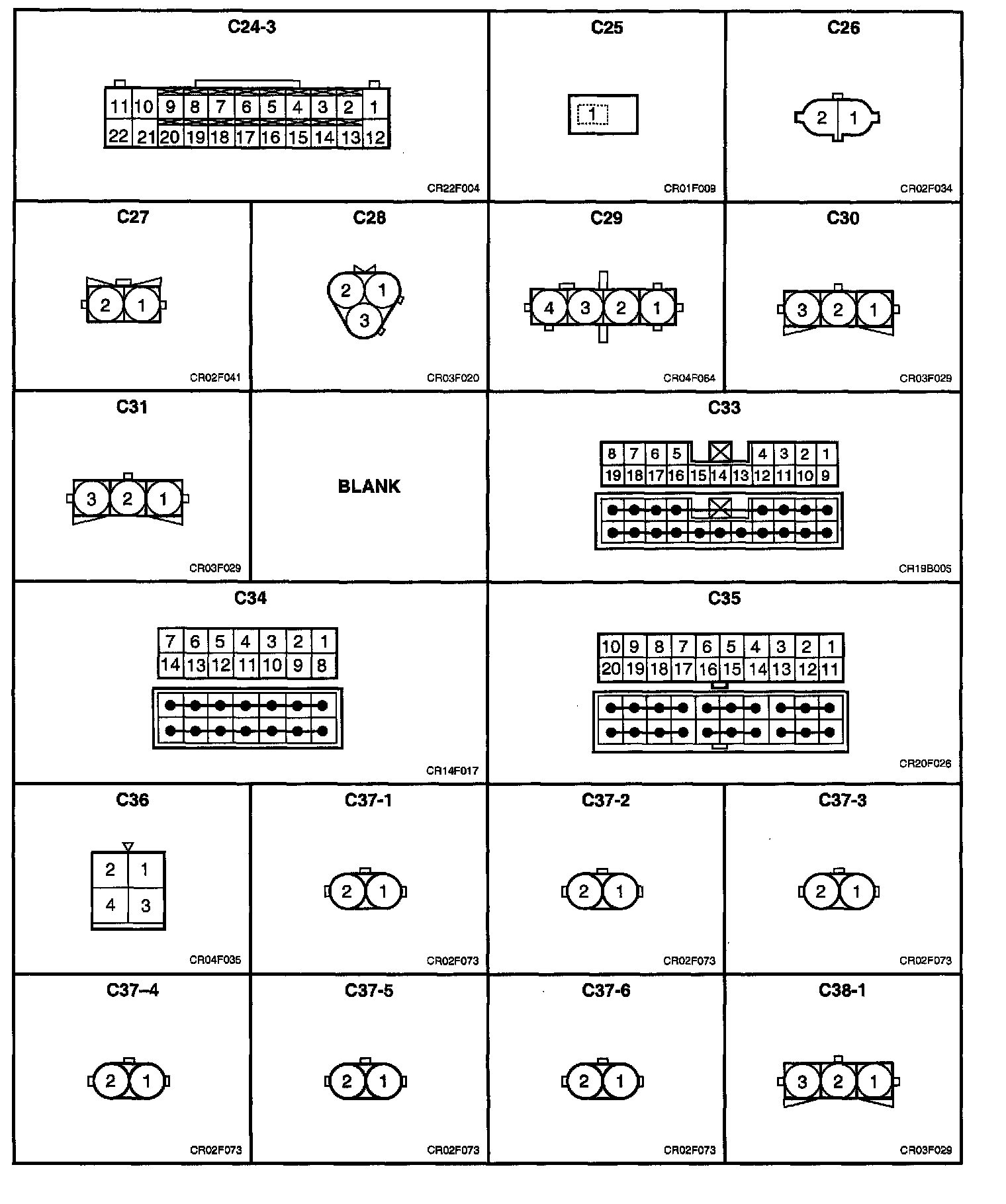

C24-3, C25 - C36, C37-1 - C37-6, C38-1:

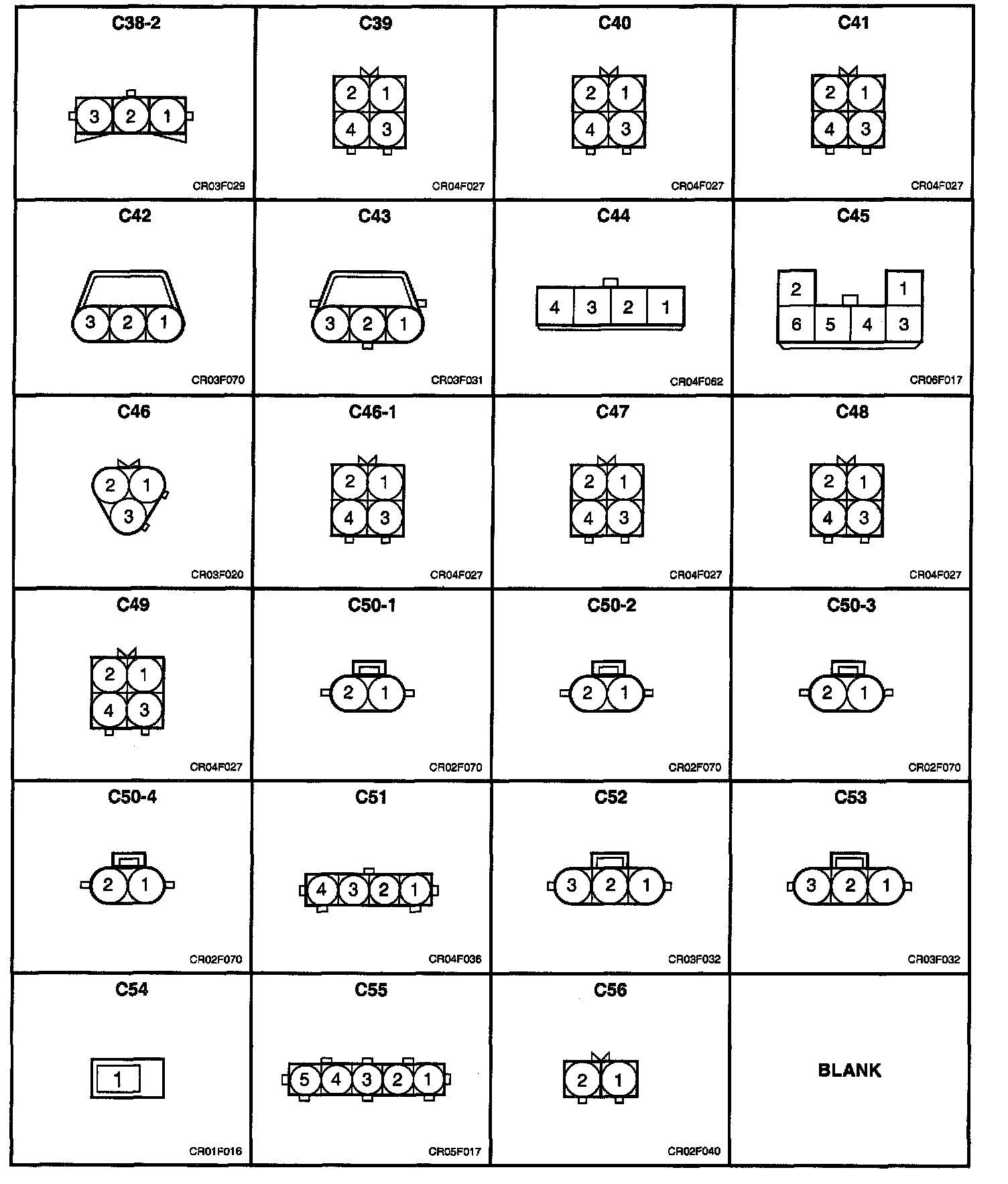

C38-2, C39 - C56:

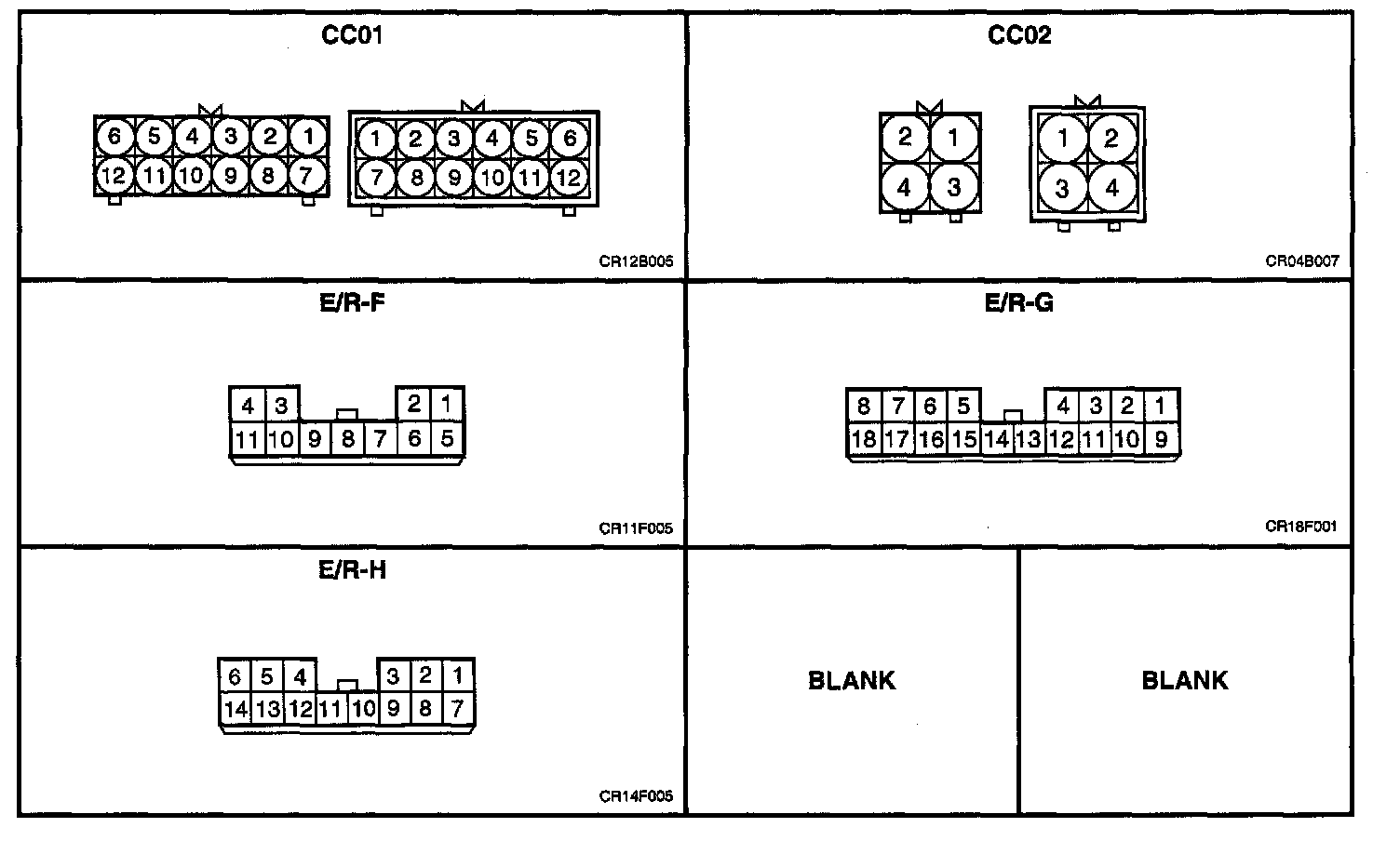

CC01 - CC02, E/R-F - E/R-H:
