Mechanical Specifications

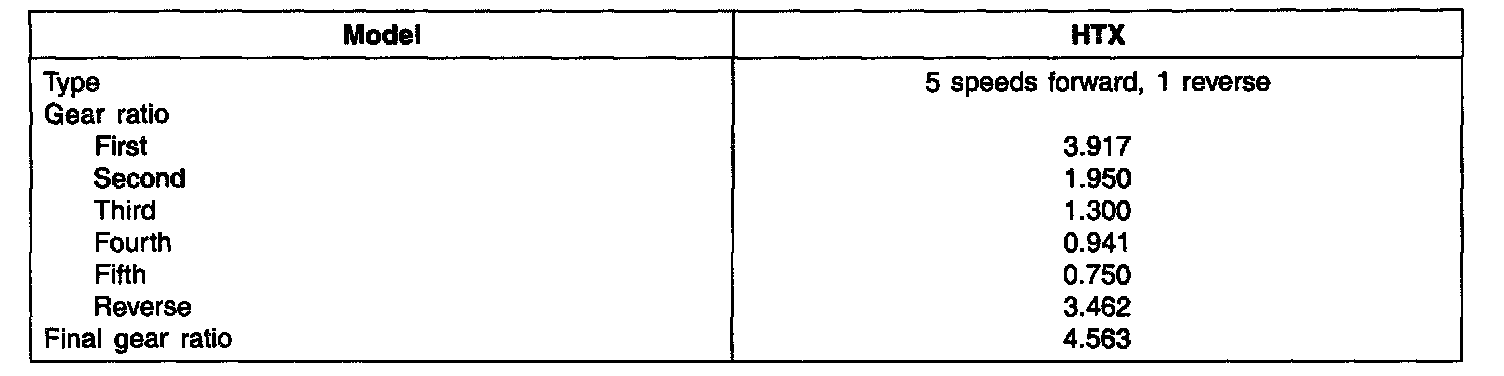

SPECIFICATIONS (M/T)
Type 5 speeds forward, 1 reverse
Gear ratio
First 3.917
Second 1.950
Third 1.300
Fourth 0.941
Fifth 0.750
Reverse 3.462
Final gear ratio 4.563

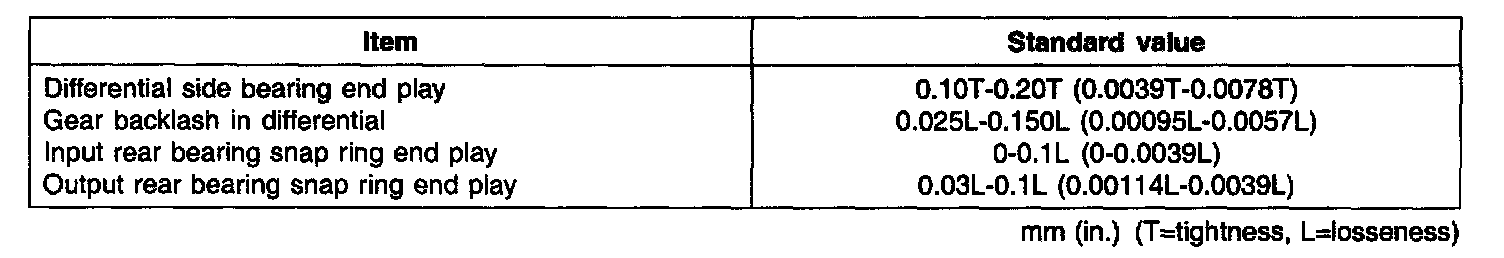

SERVICE STANDARD
Differential side bearing end play 0.10T - 0.20T (0.0039T - 0.0078T)
Gear backlash in differential 0.025L - 0.150L (0.00095L - 0.0057L)
Input rear bearing snap ring end play 0 - 0.1L (0 - 0.0039L)
Output rear bearing snap ring end play 0.03L - 0.1L (0.00114L - 0.0039L)
mm (inch) (T = tightness, L = Looseness)

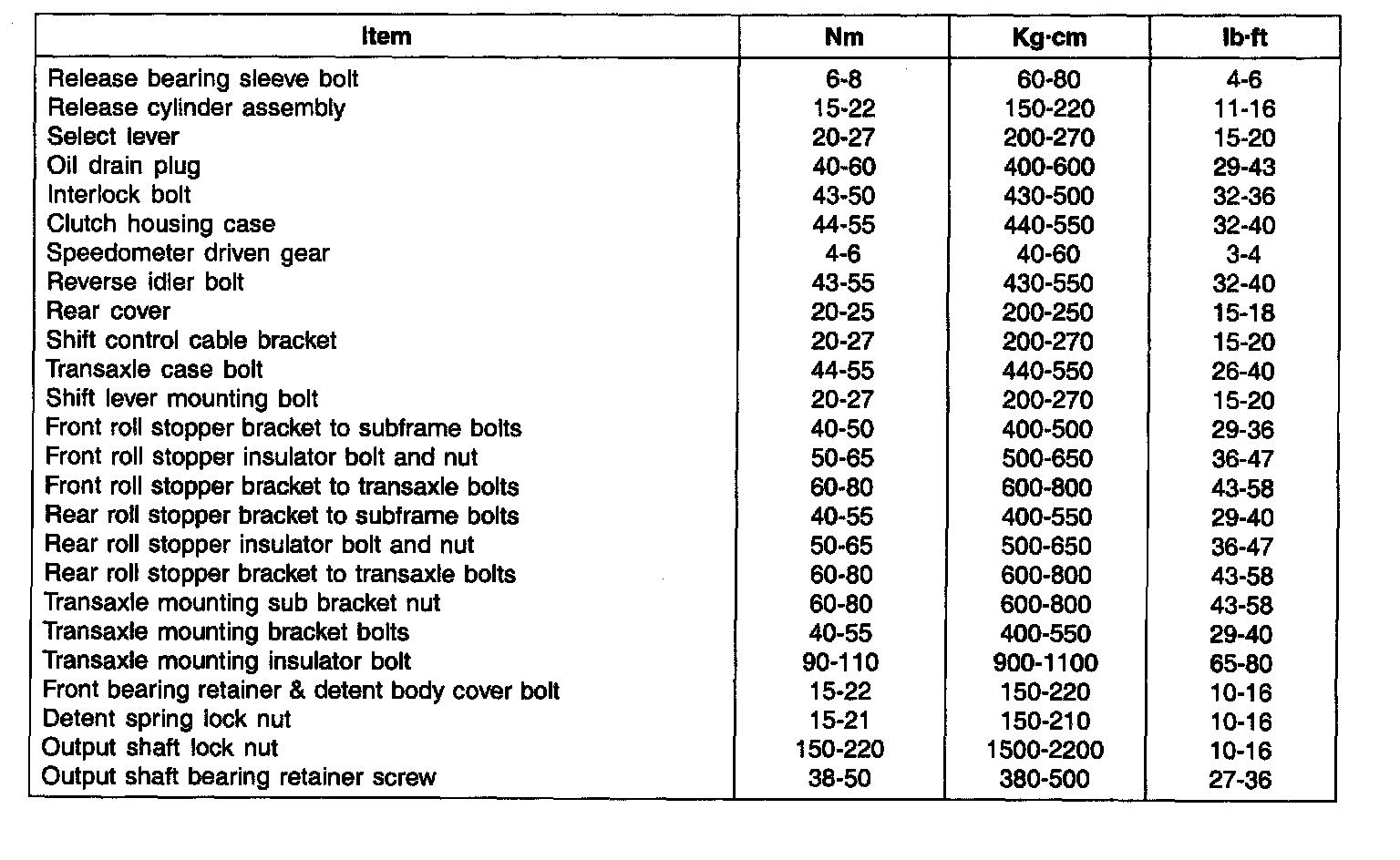

TIGHTENING TORQUE
Release bearing sleeve bolt 6 - 8 Nm (4 - 6 ft. lbs.)
Release cylinder assembly 15 - 22 Nm (11 - 16 ft. lbs.)
Select lever 20 - 27 Nm (15 - 20 ft. lbs.)
Oil drain plug 40 - 60 Nm (29 - 43 ft. lbs.)
Interlock bolt 43 - 50 Nm (32 - 36 ft. lbs.)
Clutch housing case 44 - 55 Nm (32 - 40 ft. lbs.)
Speedometer driven gear 4 - 6 Nm (3 - 4 ft. lbs.)
Reverse idler bolt 43 - 55 Nm (32 - 40 ft. lbs.)
Rear cover 20 - 25 Nm (15 - 18 ft. lbs.)
Shift control cable bracket 20 - 27 Nm (15 - 20 ft. lbs.)
Transaxle case bolt 44 - 55 Nm (26 - 40 ft. lbs.)
Shift lever mounting bolt 20 - 27 Nm (15 - 20 ft. lbs.)
Front roll stopper bracket to subframe bolts
40 - 50 Nm (29 - 36 ft. lbs.)
Front roll stopper insulator bolt and nut
50 - 65 Nm (36 - 47 ft. lbs.)
Front roll stopper bracket to transaxle bolts
60 - 80 Nm (43 - 58 ft. lbs.)
Rear roll stopper bracket to subframe bolts
40 - 55 Nm (29 - 40 ft. lbs.)
Rear roll stopper insulator bolt and nut
50 - 65 Nm (36 - 47 ft. lbs.)
Rear roll stopper bracket to transaxle bolts
60 - 80 Nm (43 - 58 ft. lbs.)
Transaxle mounting sub bracket nut 60 - 80 Nm (43 - 58 ft. lbs.)
Transaxle mounting bracket bolts 40 - 55 Nm (29 - 40 ft. lbs.)
Transaxle mounting insulator bolt 90 - 110 Nm (65 - 80 ft. lbs.)
Front bearing retainer & detent body cover bolt
15 - 22 Nm (10 - 16 ft. lbs.)
Detent spring lock nut 15 - 21 Nm (10 - 16 ft. lbs.)
Output shaft lock nut 150 - 220 Nm (10 - 16 ft. lbs.)
Output shaft bearing retainer screw 38 - 50 Nm (27 - 36 ft. lbs.)

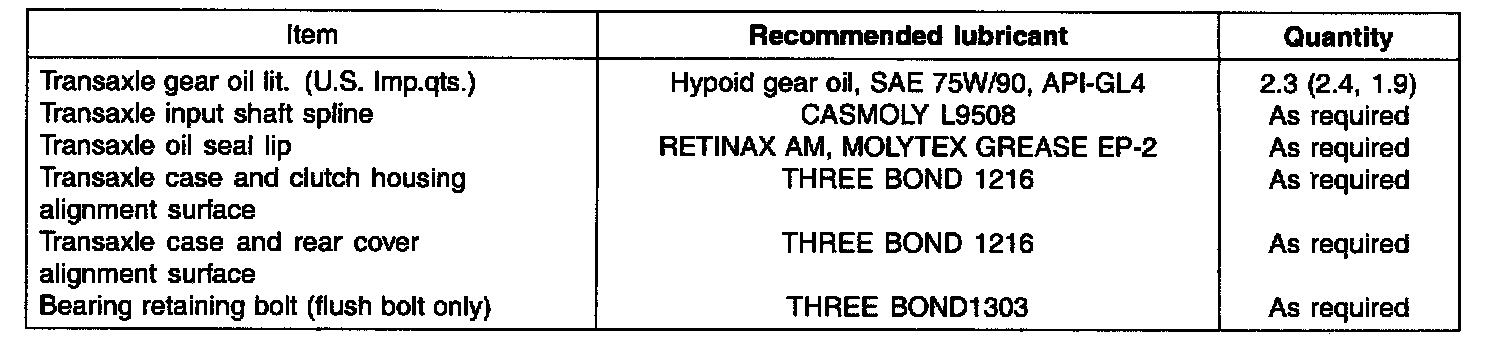

LUBRICATIONS
