Operation CHARM
: Car repair manuals for everyone.
Home
>>
Hyundai Truck
>>
2002
>>
Santa Fe L4-2.4L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Keyless Entry
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams
Image SD-114 Keyless Entry & Burglar Alarm System (1):

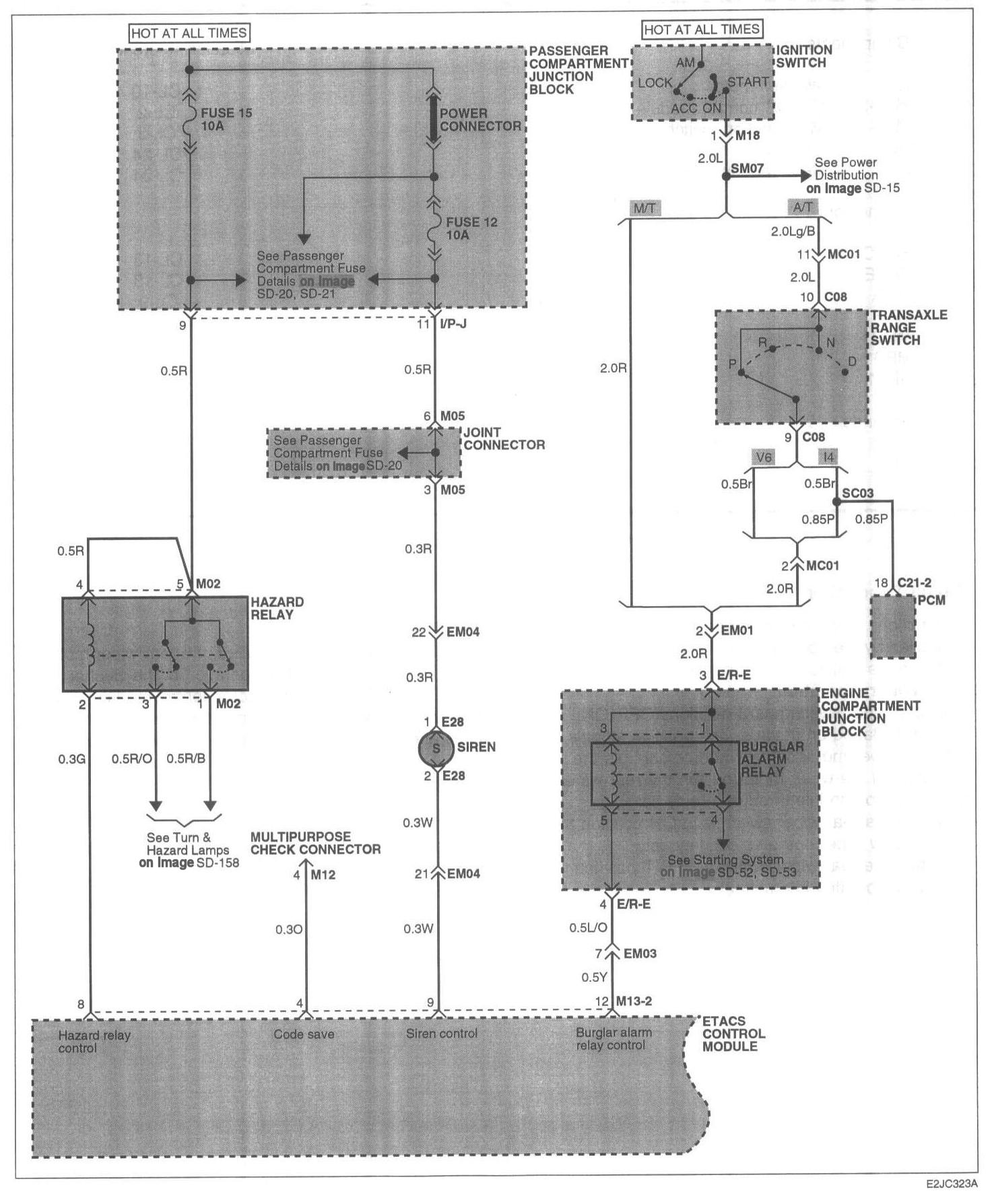

Image SD-115 Keyless Entry & Burglar Alarm System (2):
