Automatic Transmission/Transaxle

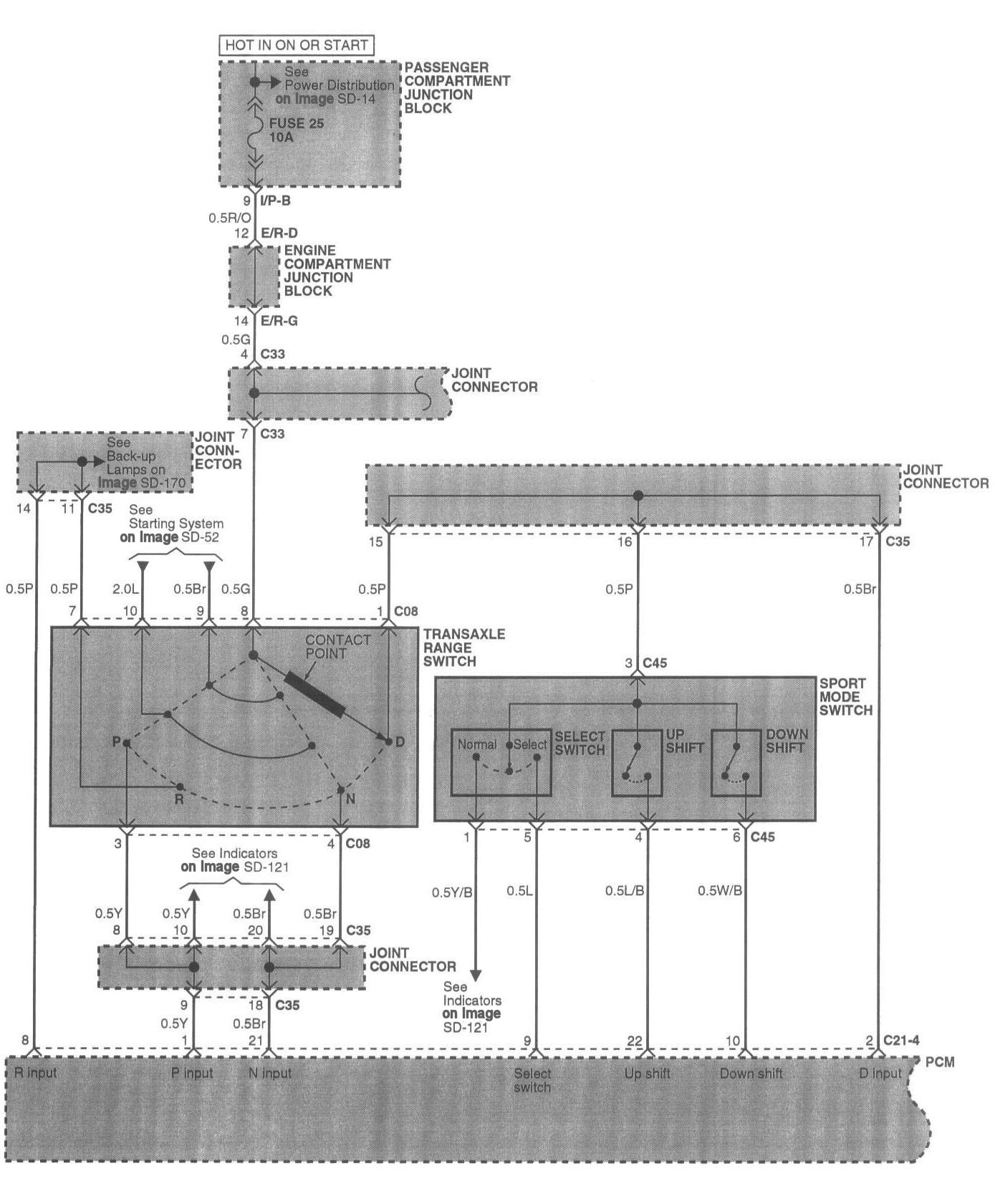

Image SD-88 Automatic Transaxle Control System (I4) (1):

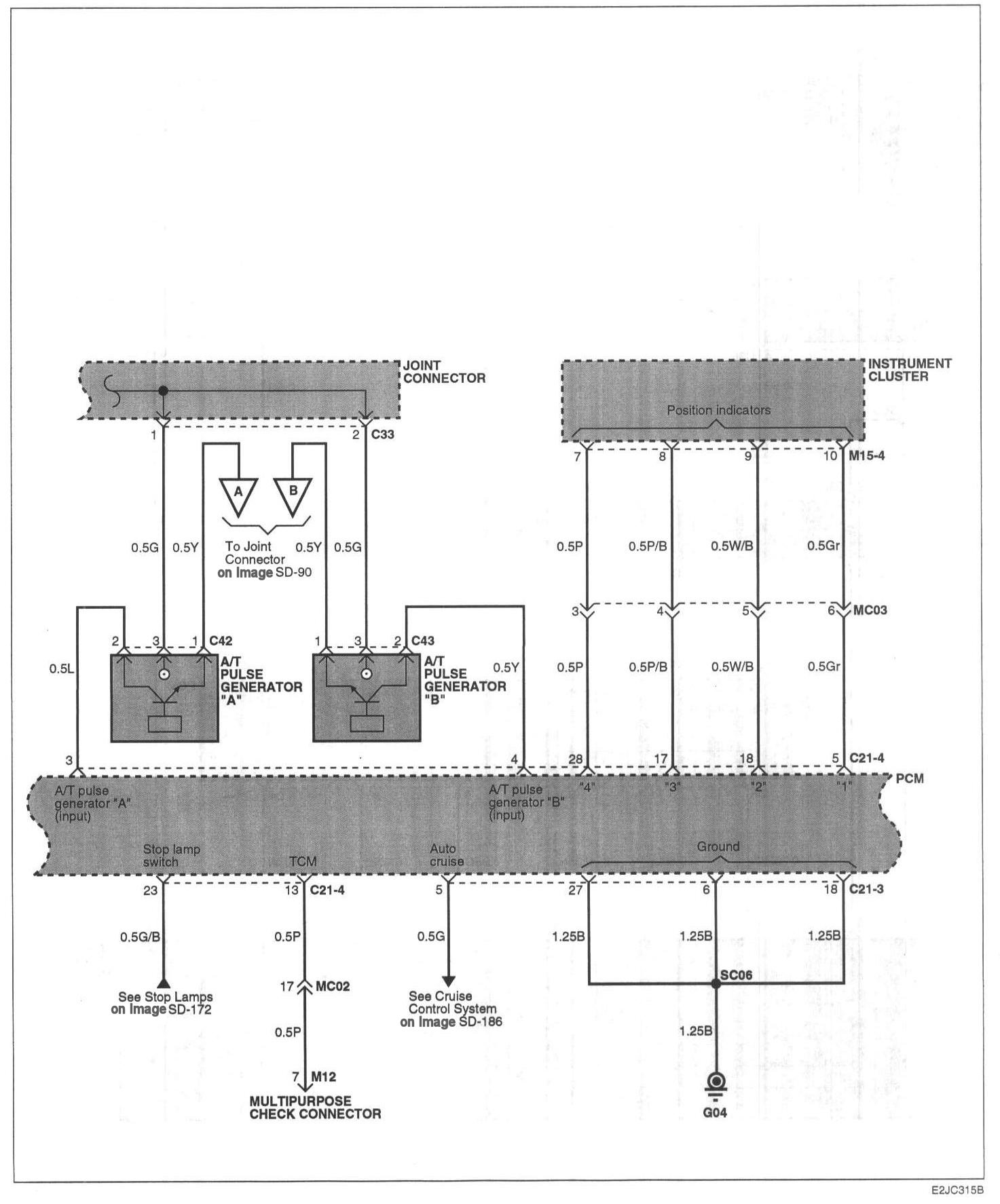

Image SD-89 Automatic Transaxle Control System (I4) (2):

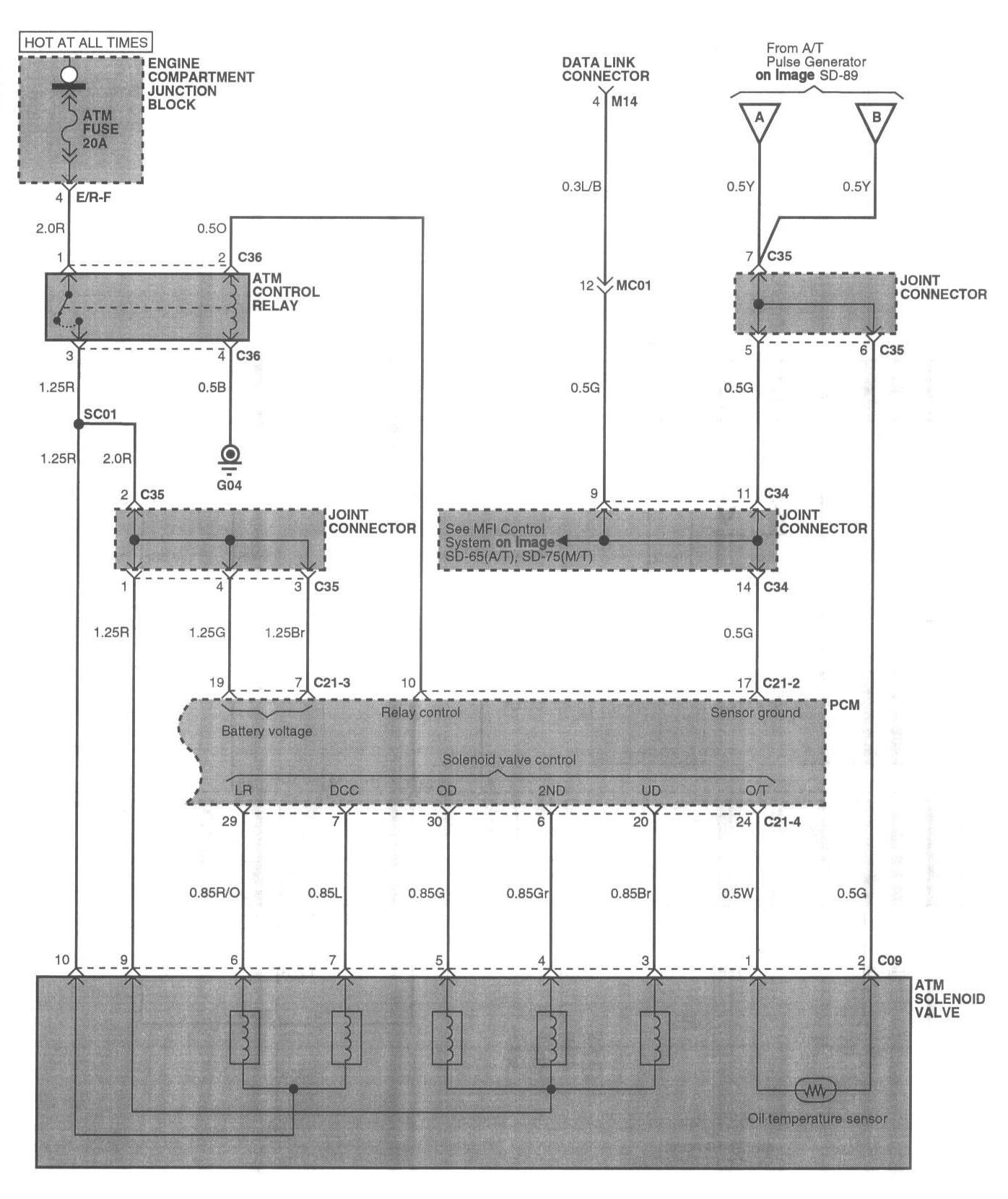

Image SD-90 Automatic Transaxle Control System (I4) (3):
