Home
>>
Hyundai Truck
>>
2002
>>
Santa Fe L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Turn Signals
Turn Signals

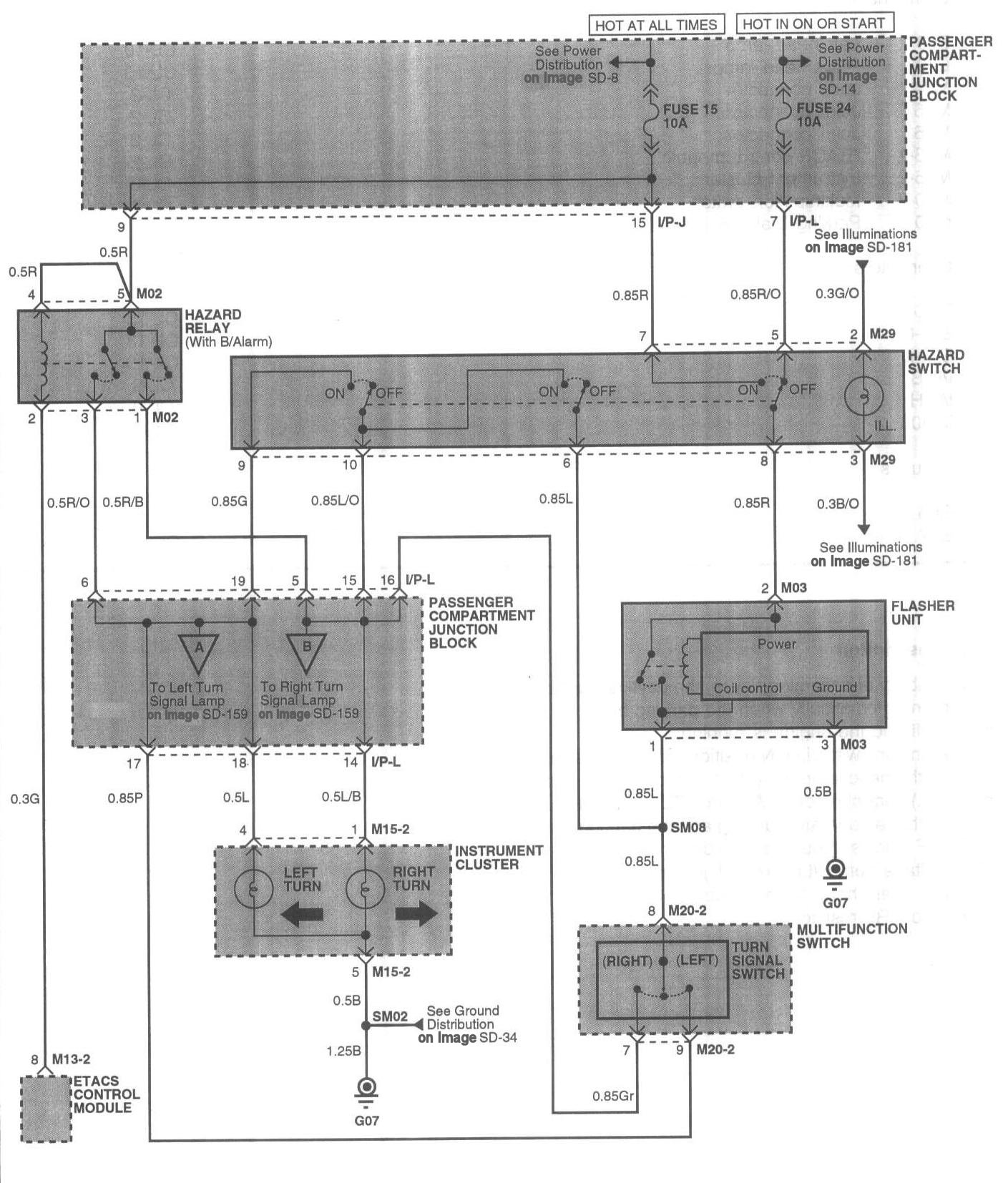

Image SD-158 Turn And Hazard Lamps (1):
Image SD-159 Turn And Hazard Lamps (2):
