Control Arm Bushing: Service and Repair

REPLACEMENT OF REAR SUSPENSION LOWER ARM BUSHING AND UPPER ARM BUSHING

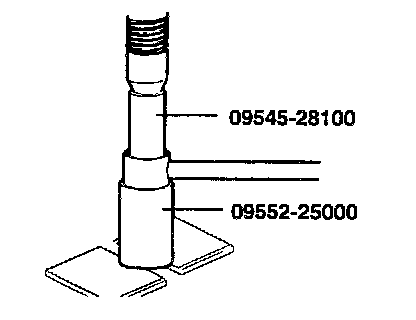

1. Using the special tools (09545-28100, 09552-25000), replace the rear suspension lower and upper arm bushing.

NOTE:

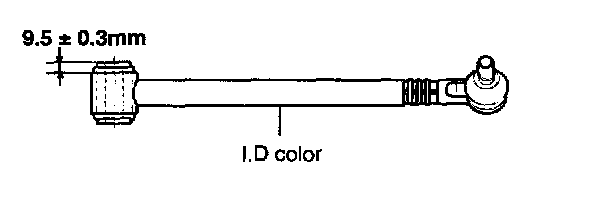

^ Install the bushings as shown in the illustration.

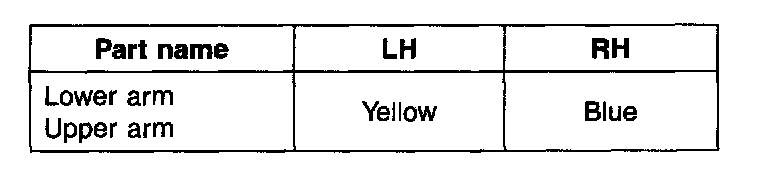

^ Install the arm following the ID color shown in the chart.
