Home >> Hyundai Truck >> 2002 >> Santa Fe L4-2.4L >> Repair and Diagnosis >> Wiper and Washer Systems >> Wiper Control Module >> Locations

Wiper Control Module: Locations

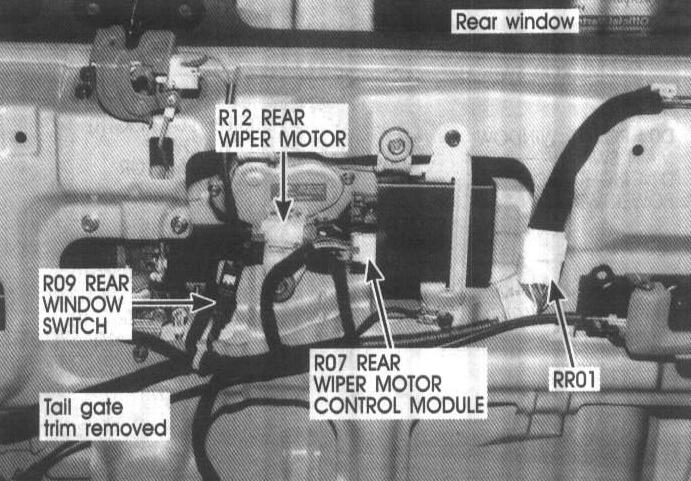

R07 Rear Wiper Motor Control Module, R09 Rear Window Switch, R12 Rear Wiper Motor, RR01:
