Programming and Relearning

USING HI-SCAN (PRO)

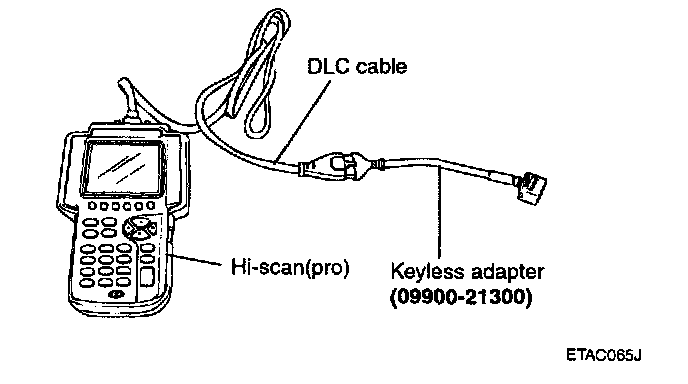

1. To register transmitter code, first connect keyless adapter (09900-21300) to DLC(Data Link Connector) cable of hi-scan as shown in the illustration.

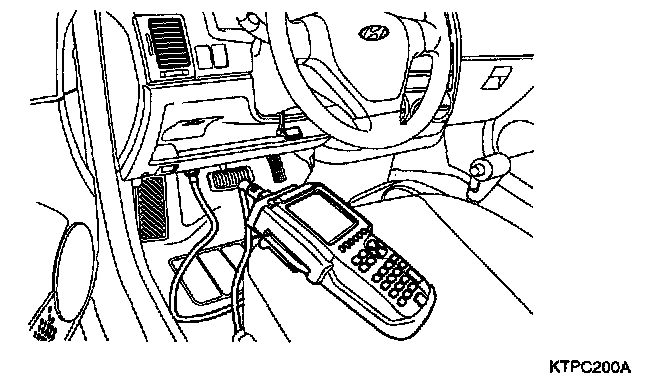

2. After connecting keyless adapter to the multi purpose check connector (1 Opins) beside data link connector in driver side crash pad lower panel, turn the power on hi-scan.

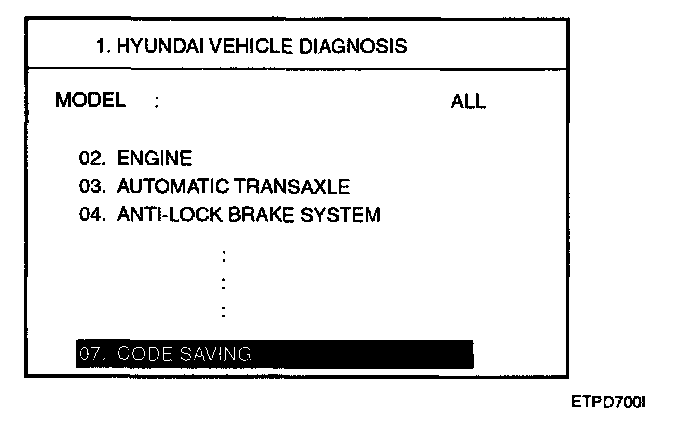

3. Select the vehicle model and then do "CODE SAVING".
4. After selecting "CODE SAVING" menu, button "ENTER" key, then the screen will be shown as below.

KEYLESS ENTRY CODE SAVING
1. REMOVE THE IG.KEY FROM KEY CYLINDER.
2. CONNECT THE DLC CABLE AND ie PIN CONNECTOR OF THE KEYLESS ADAPTER.
3. CONNECT THE 10 PIN CONNECTOR OF THE KEYLESS ADAPER INTO THE MULTIPURPOSE CHECK CONNECTOR.
4. AFTER PRESSING [ENTER], FINISH CODE SAVING WITHIN 10 SECONDS.
5. PRESS [ENTER], IF YOU ARE READY

5. After removing the ignition key from key cylinder, push "ENTER" key to proceed to the next mode for code saving.

KEYLESS ENTRY CODE SAVING
1. PRESS THE TRANSMITTER [LOCK] BUTTON FOR 1 SECOND.
2. IF SAVE ONE MORE PRESS OTHER TRANSMITTER [LOCK] BUTTON FOR 1 SECOND.
3. PRESS [ESC] AND DISCONNECT KEYLESS ADAPTER FROM VEHICLE AND CHECK THE KEYLESS ENTRY SYSTEM.

6. Follow steps 1 to 3 and then code saving is completed.
7. Disconnect key less adapter (09900-21300) from DLC cable and then proceed tose If-diagnosis with DLC cable connected.

USING CODE SAVING SWITCH
1. Remove the lower dash panel.

NOTE: Don't disconnect the negative (-) battery terminal.




2. To store new codes
- Activate the keyless entry/receiver unit and change code saving switch of the ETACS module from "OFF" to "SET".
- The secret codes from the transmitter will be stored into the receiver unit when the door lock button or unlock button is pressed on the trans mitter.
- Save the 2nd transmitter codes in the same manner.




3. Return the code saving switch of the ETACS module from"SET' to "OFF".
4. Install the lower dash panel.
