Full Auto A/C Compressor

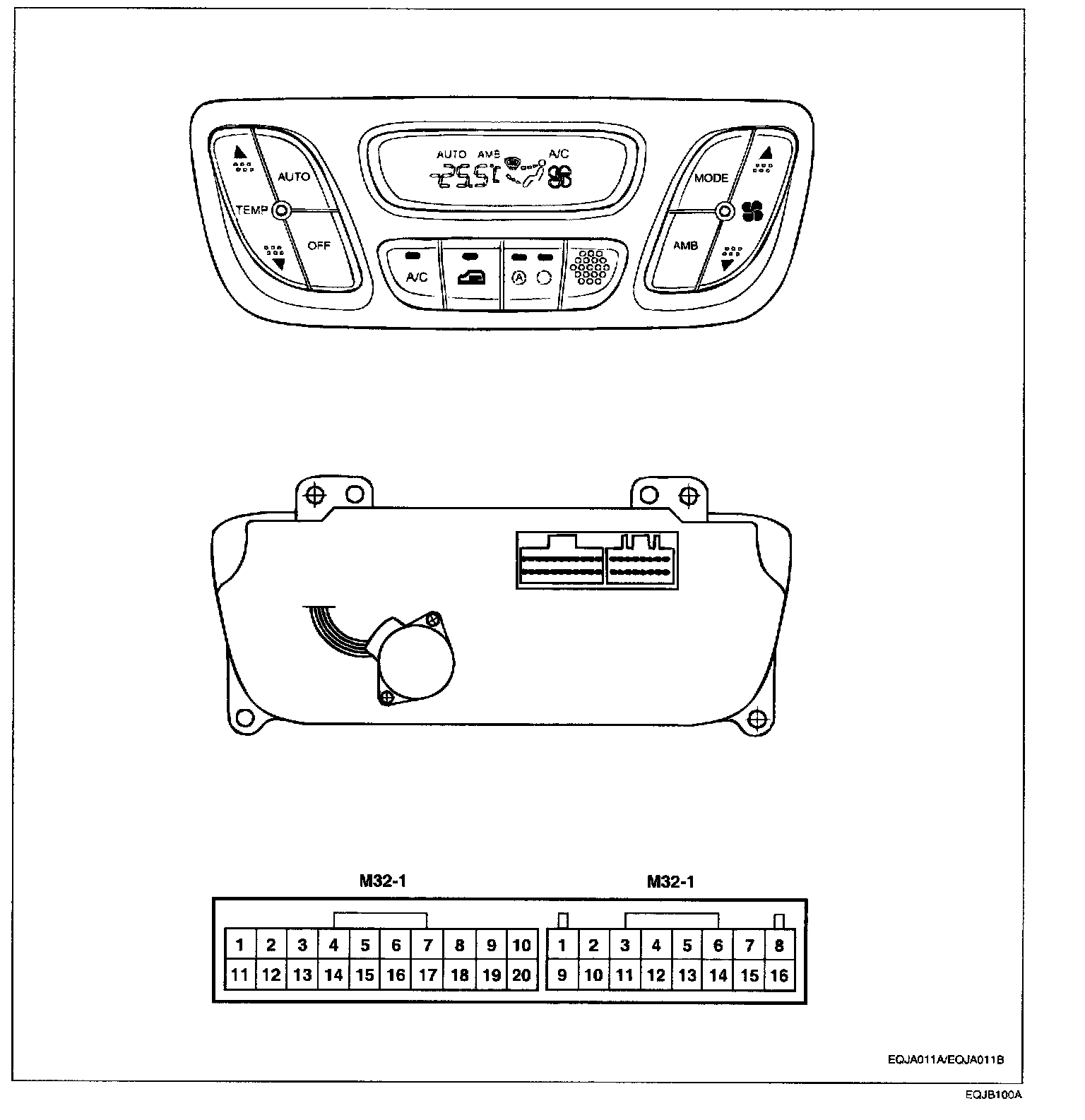

CONTROL PANEL

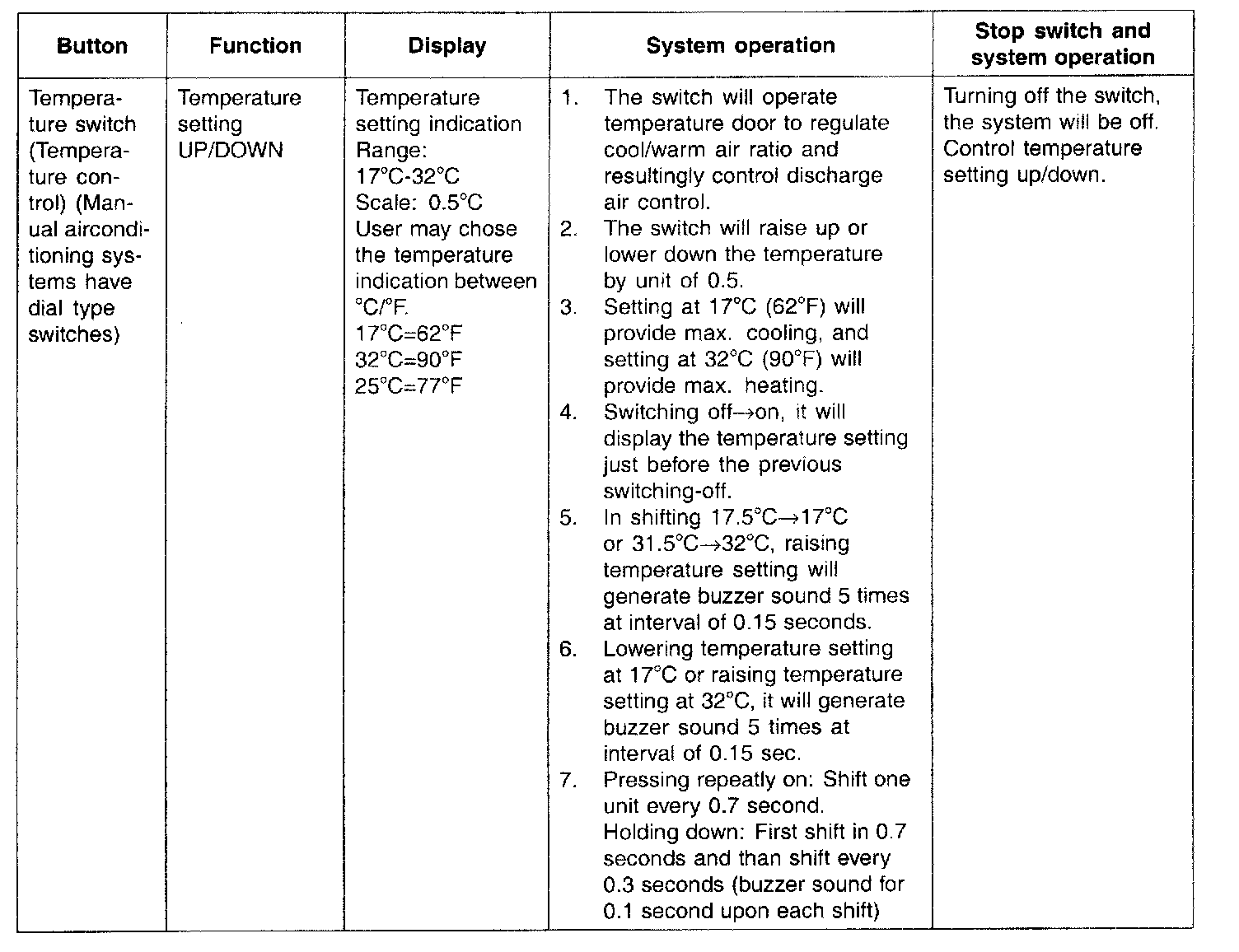

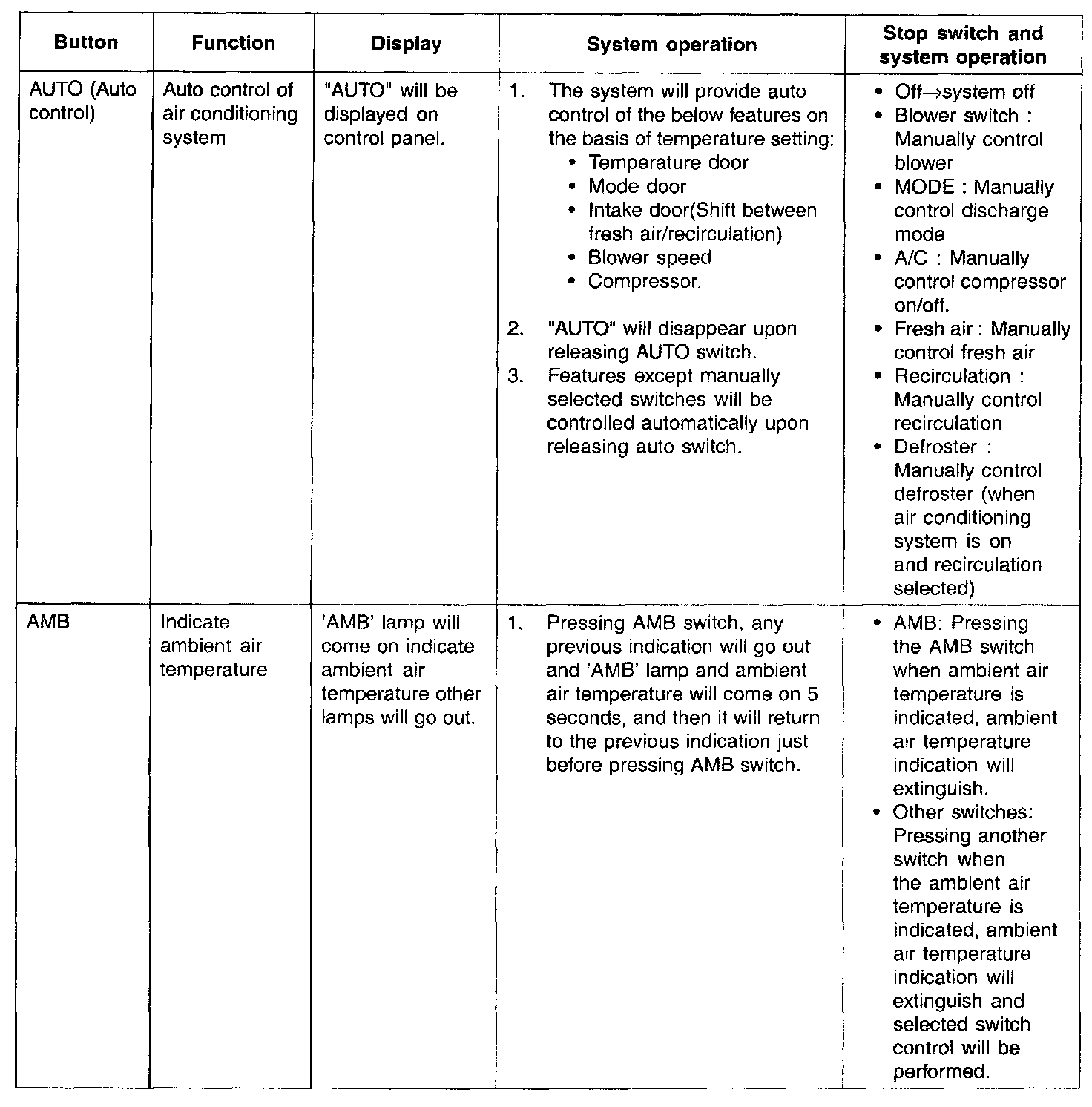

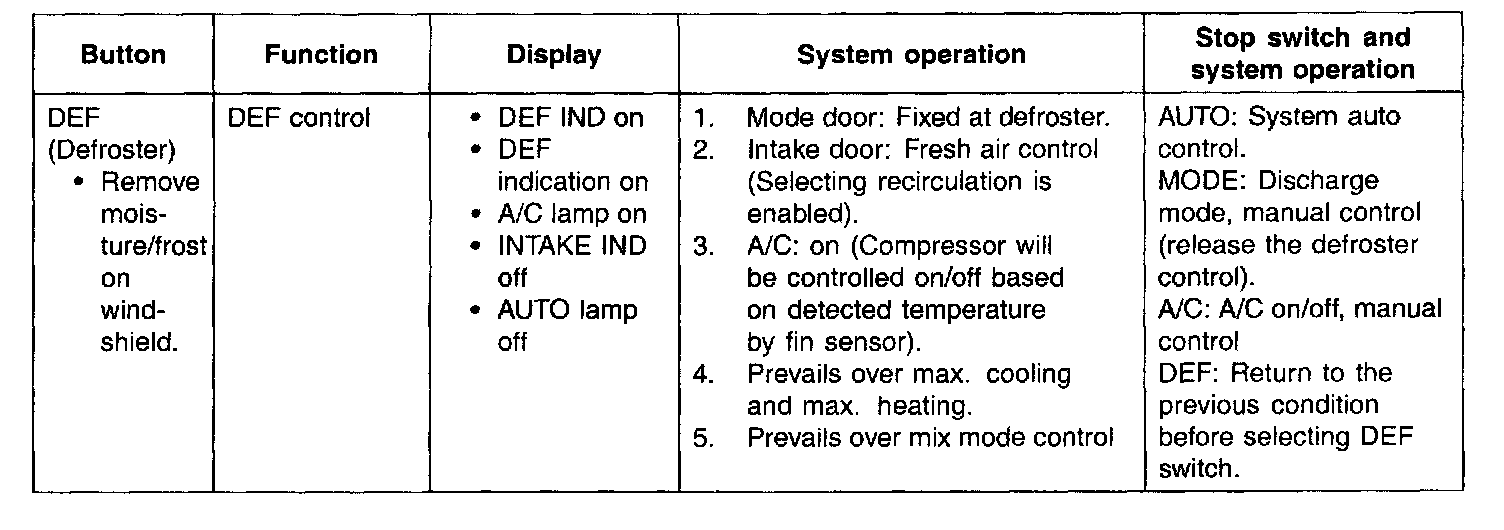

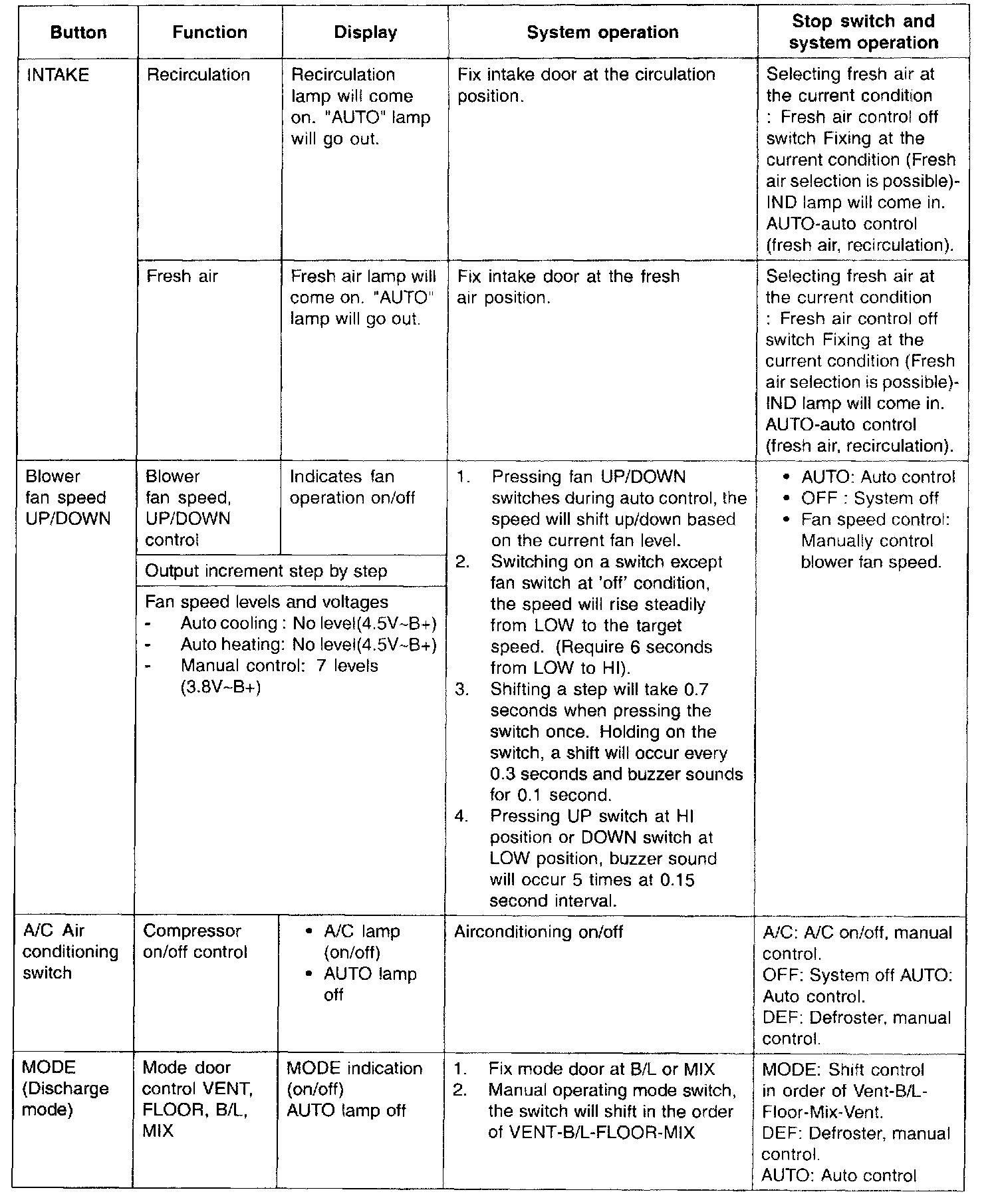

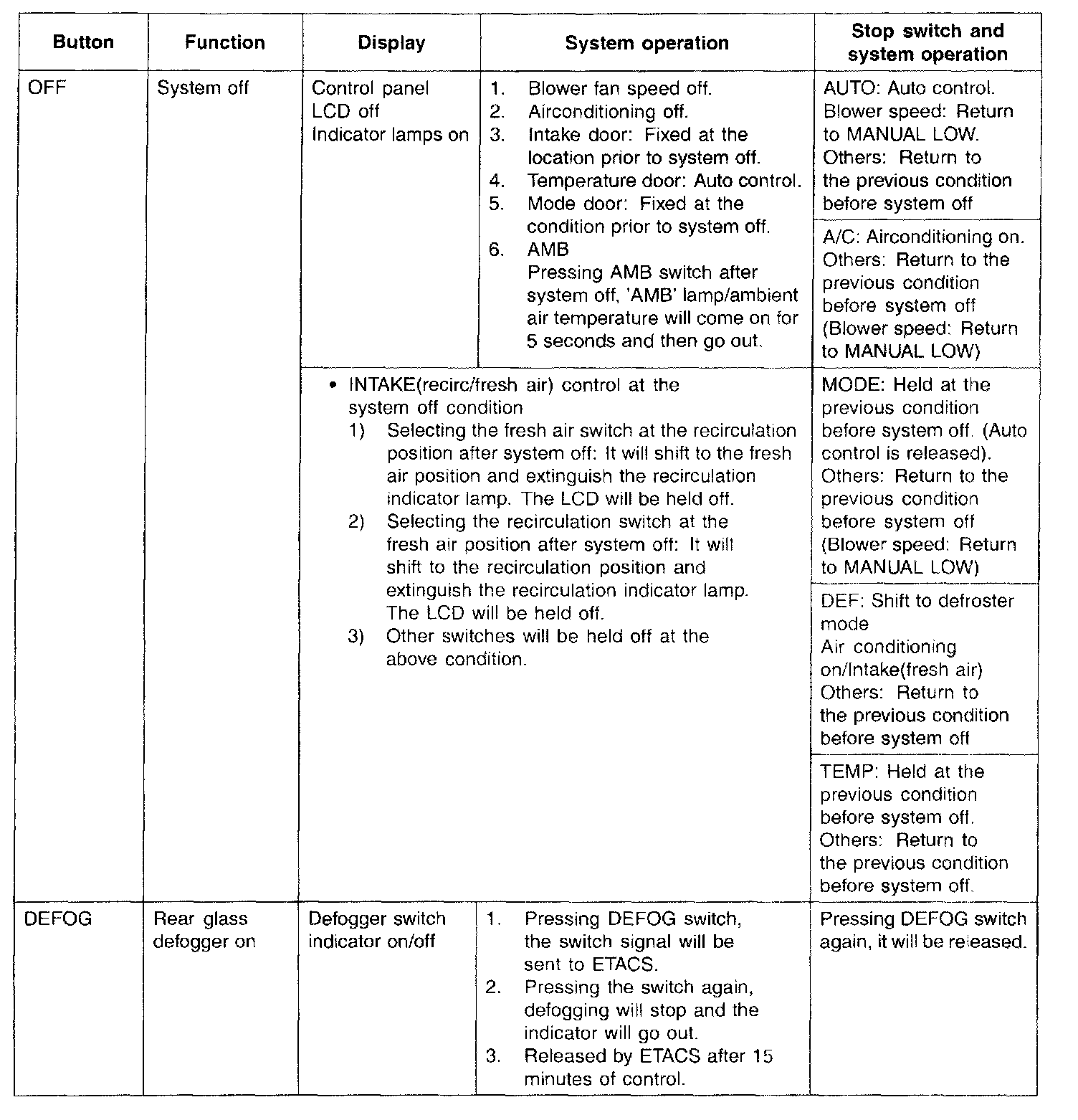

SWITCH OPERATION AND FEATURES
1. Full auto air conditioning system: One-touch button type.
2. Manual air conditioning system: Combination of dial switch and one-touch buffon.
















CONTROL PANEL SWITCHES WILL GENERATE BUZZER SOUND ON OPERATION
