Antitheft and Alarm Systems: Service and Repair

IMMOBILIZER CONTROL MODULE

REMOVAL

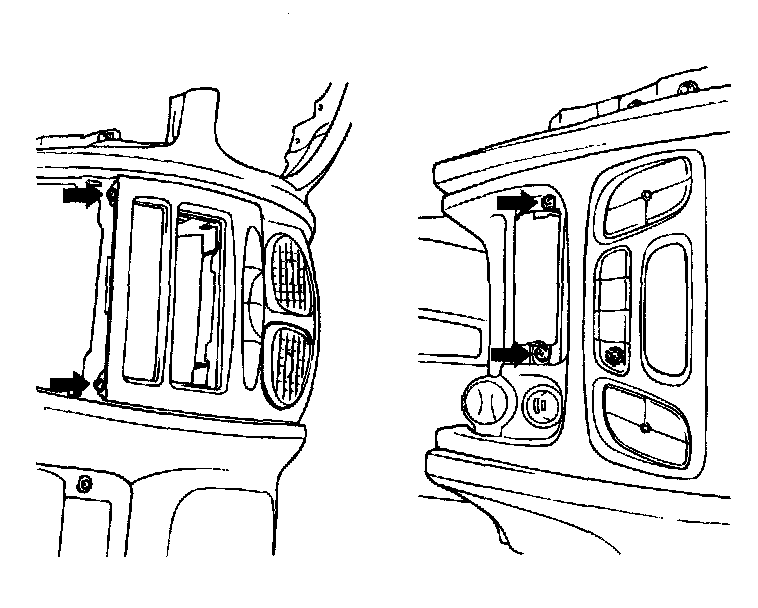

1. Remove the ash tray and then remove the 4 screws holding the center facia panel.
2. Remove the center facia panel and disconnect the connectors.

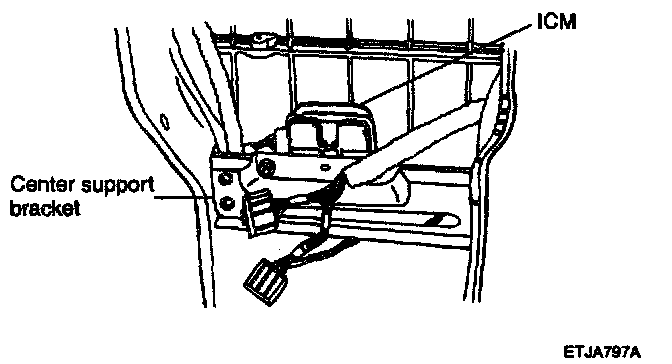

3. Remove the immobilizer control module from the center support bracket.
