Pinout Values and Diagnostic Parameters

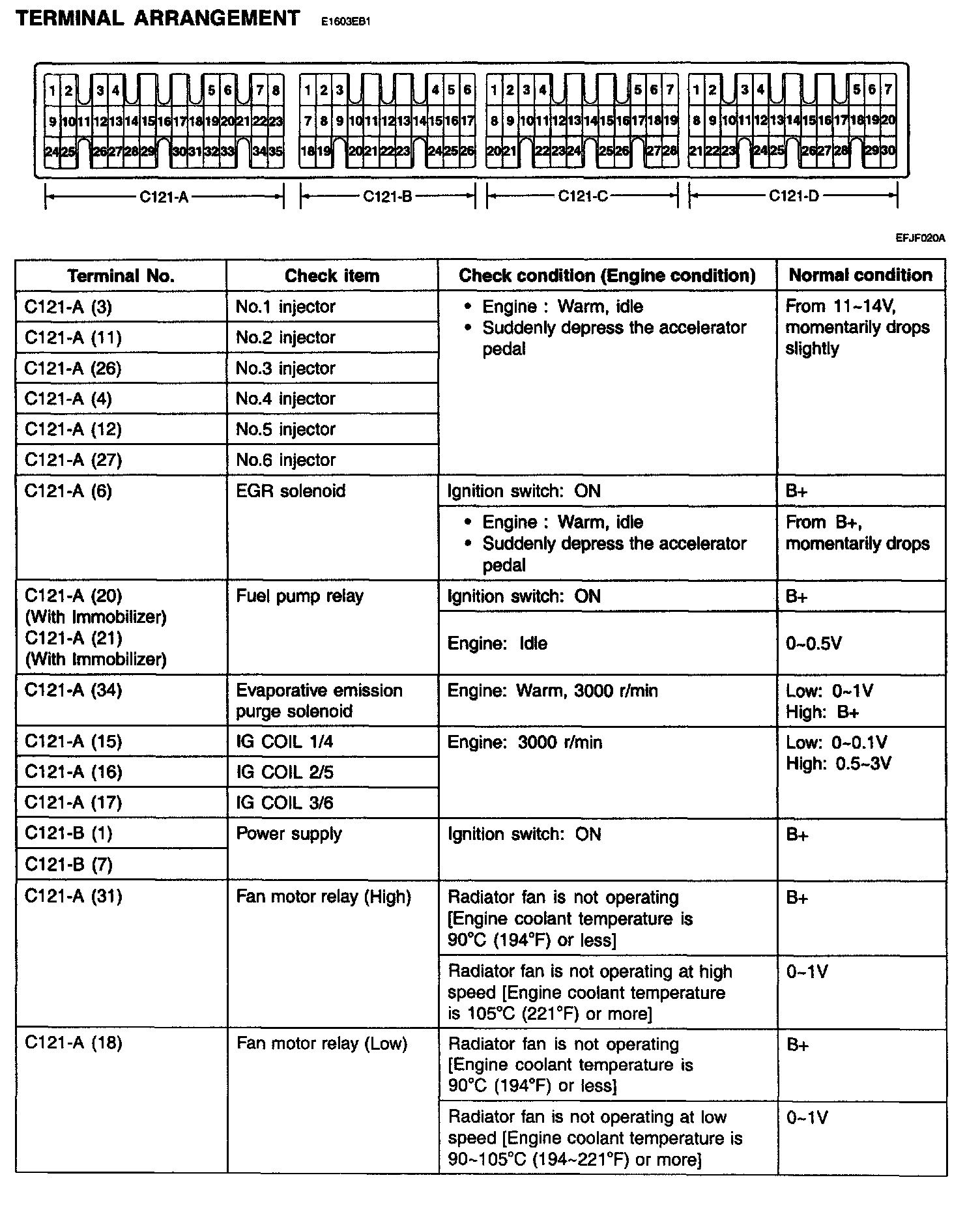

Terminal Arrangement Part 1:

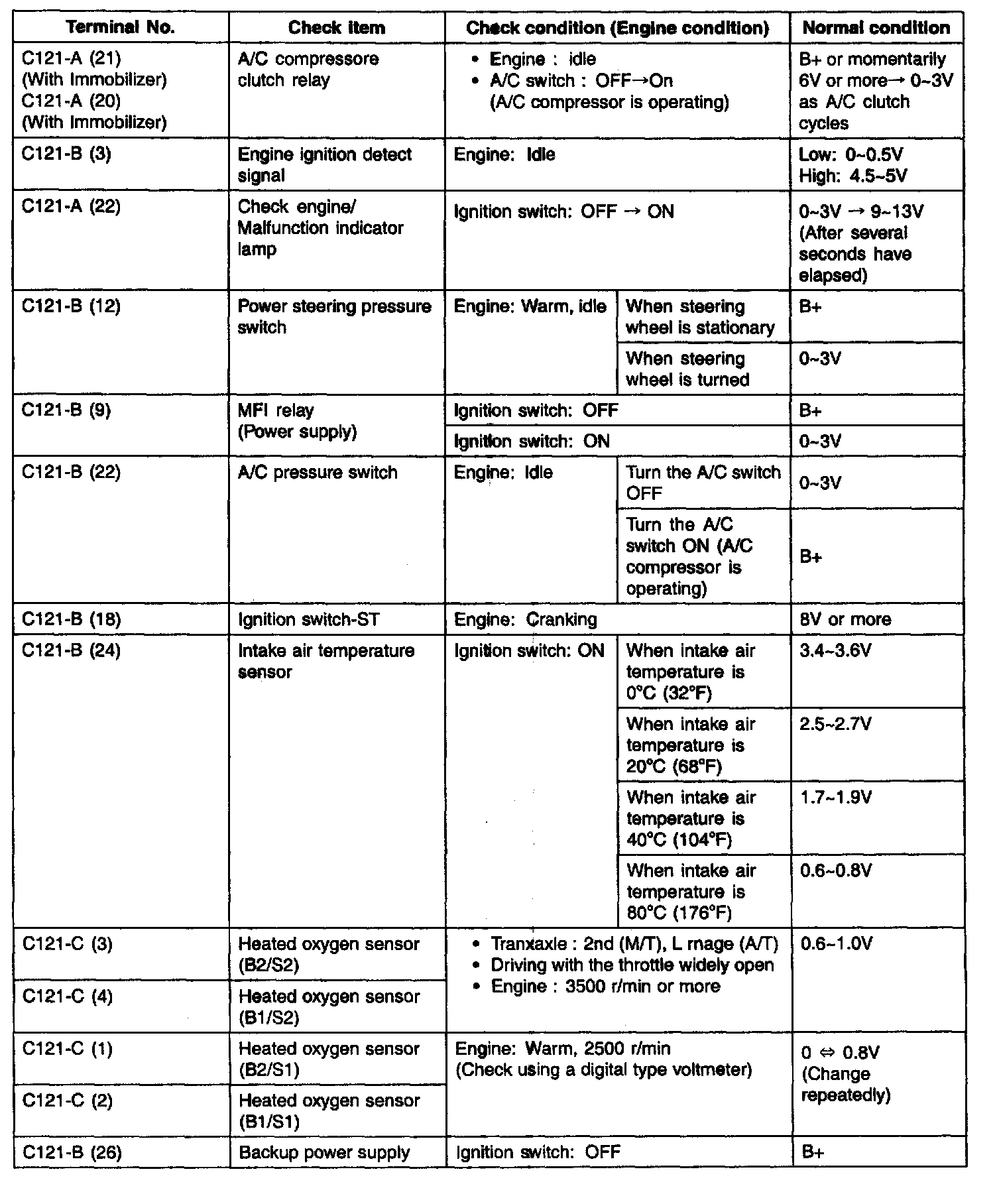

Terminal Arrangement Part 2:

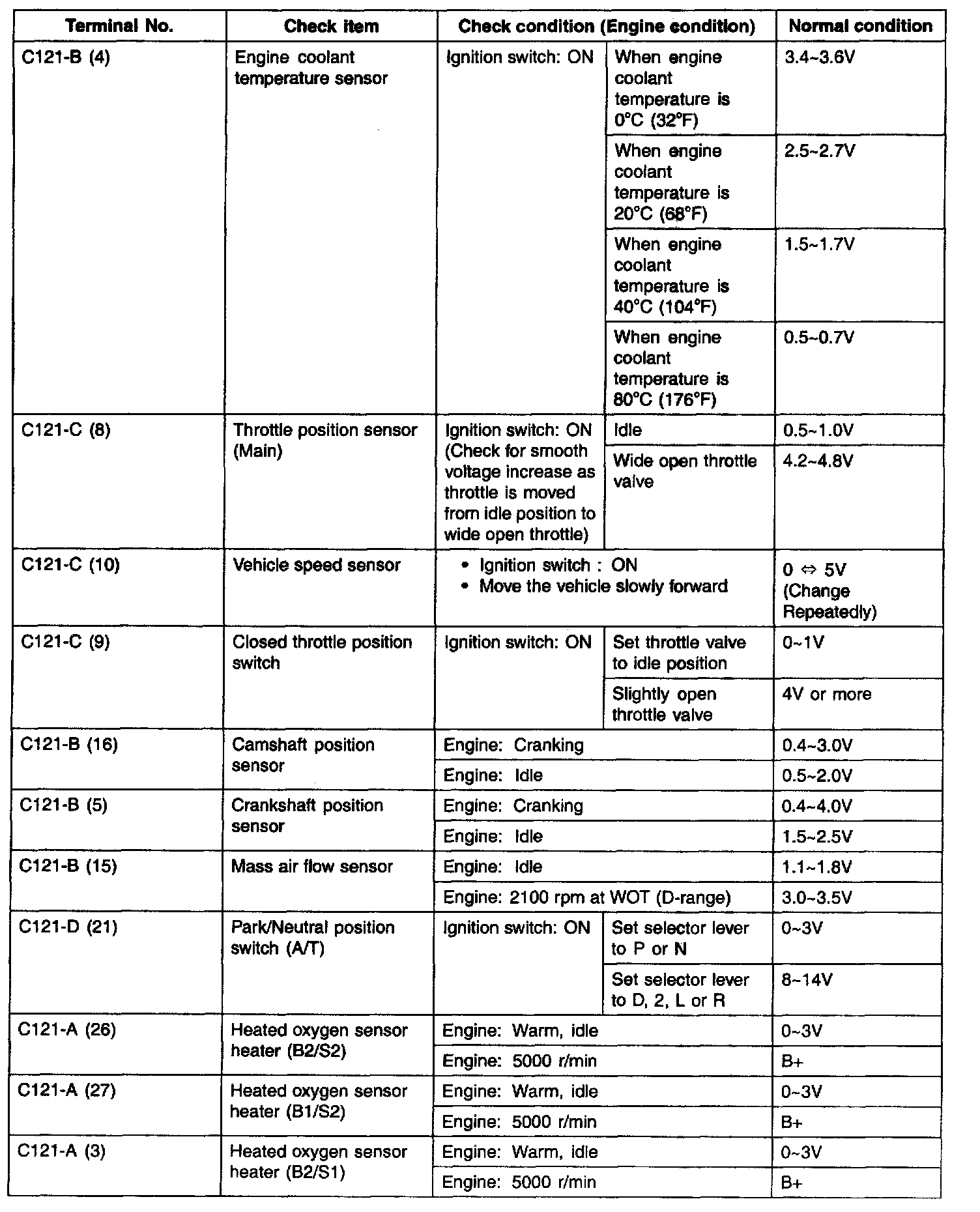

Terminal Arrangement Part 3:

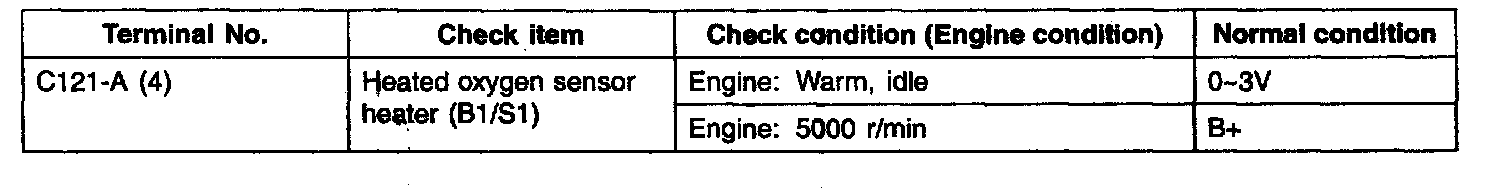

Terminal Arrangement Part 4:
