Console Lamp: Service and Repair

OVERHEAD CONSOLE LAMP

REPLACEMENT
1. Disconnect the negative (-) battery terminal.

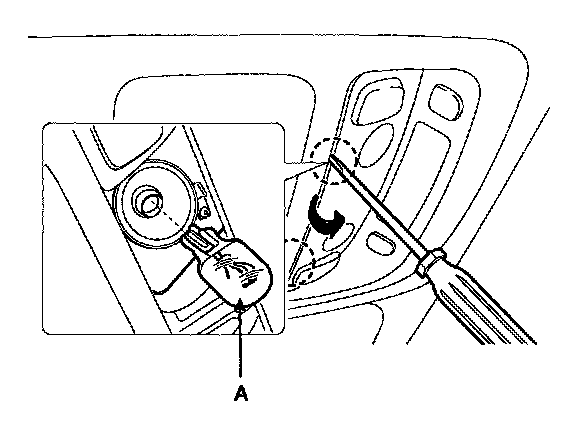

2. Replace the bulb after removing the lens with a flat-tip screwdriver.






3. Remove the bulb and replace it with a new one

NOTE: Take care that holding Clip (A) is not to be damaged
