Engine Control Module

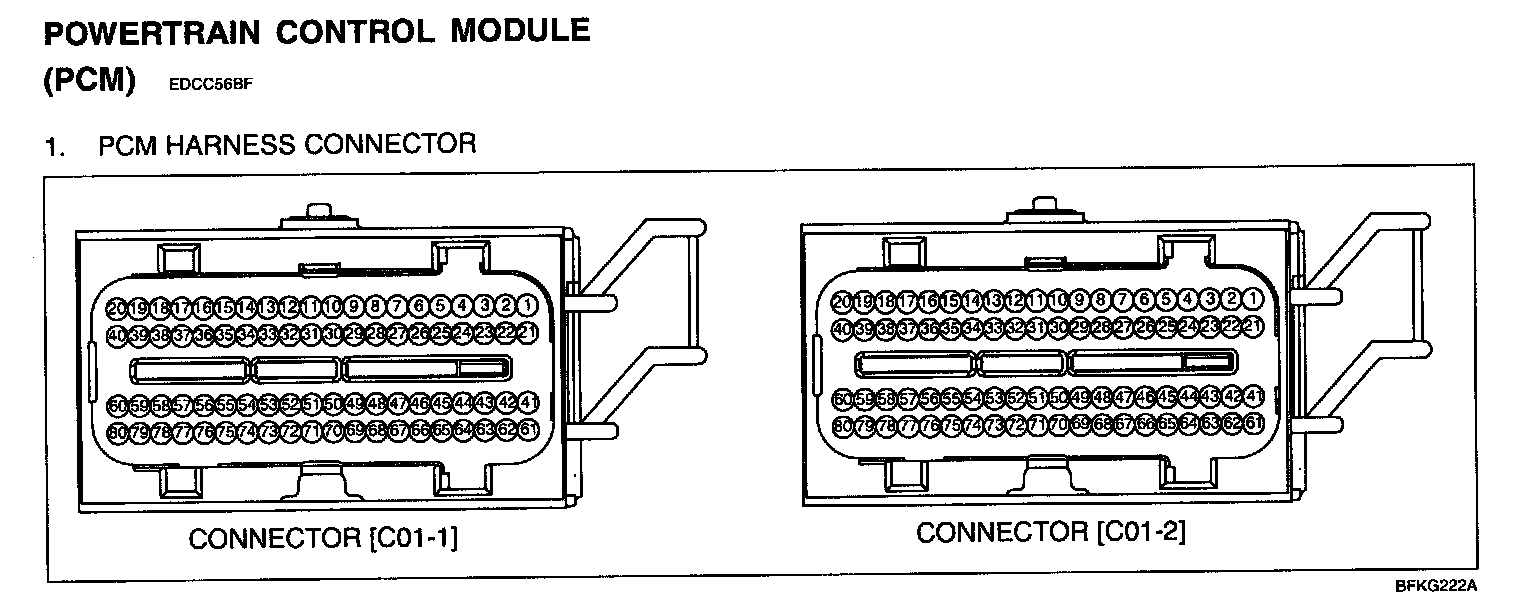

Powertrain Control Module (PCM) Harness Connector:

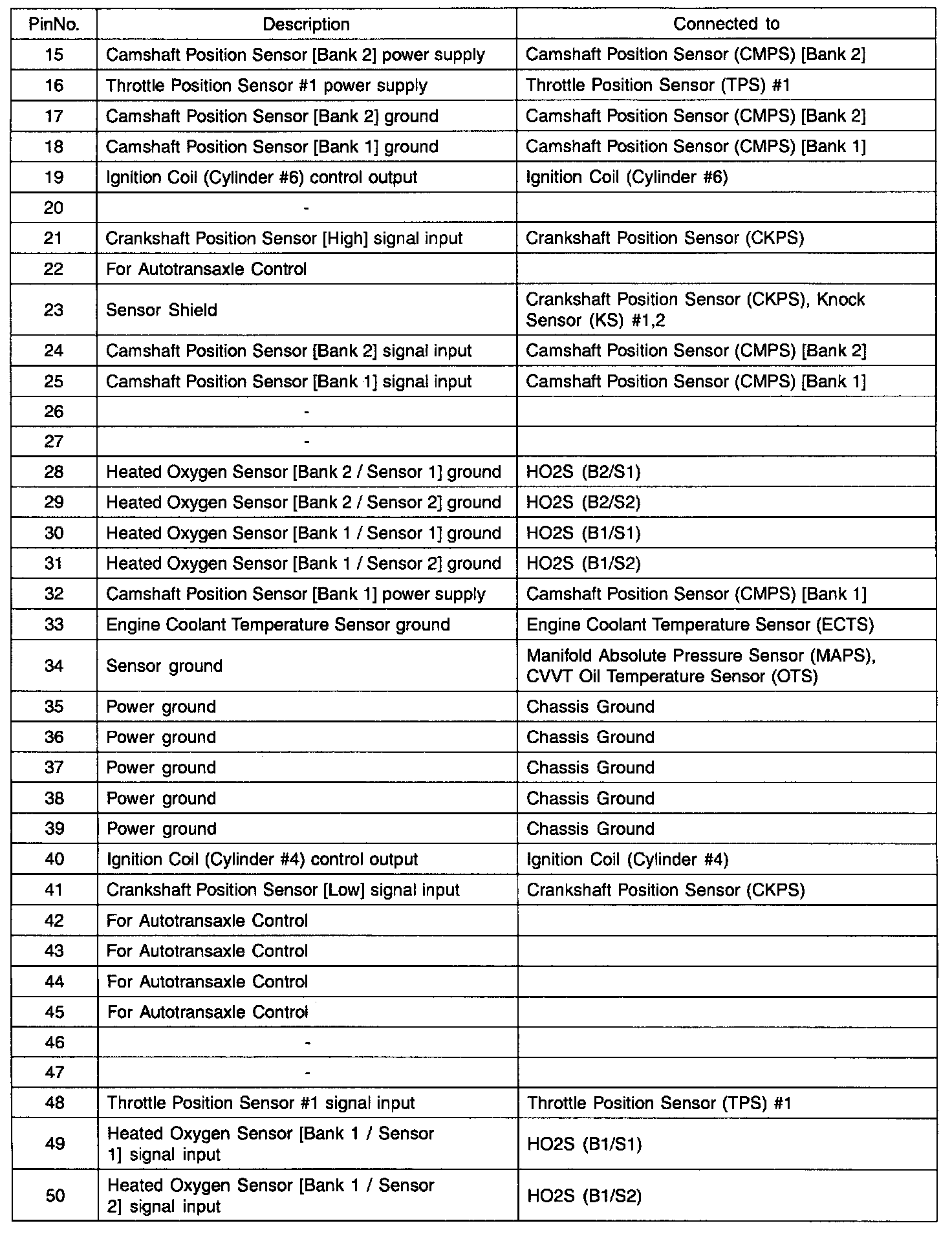

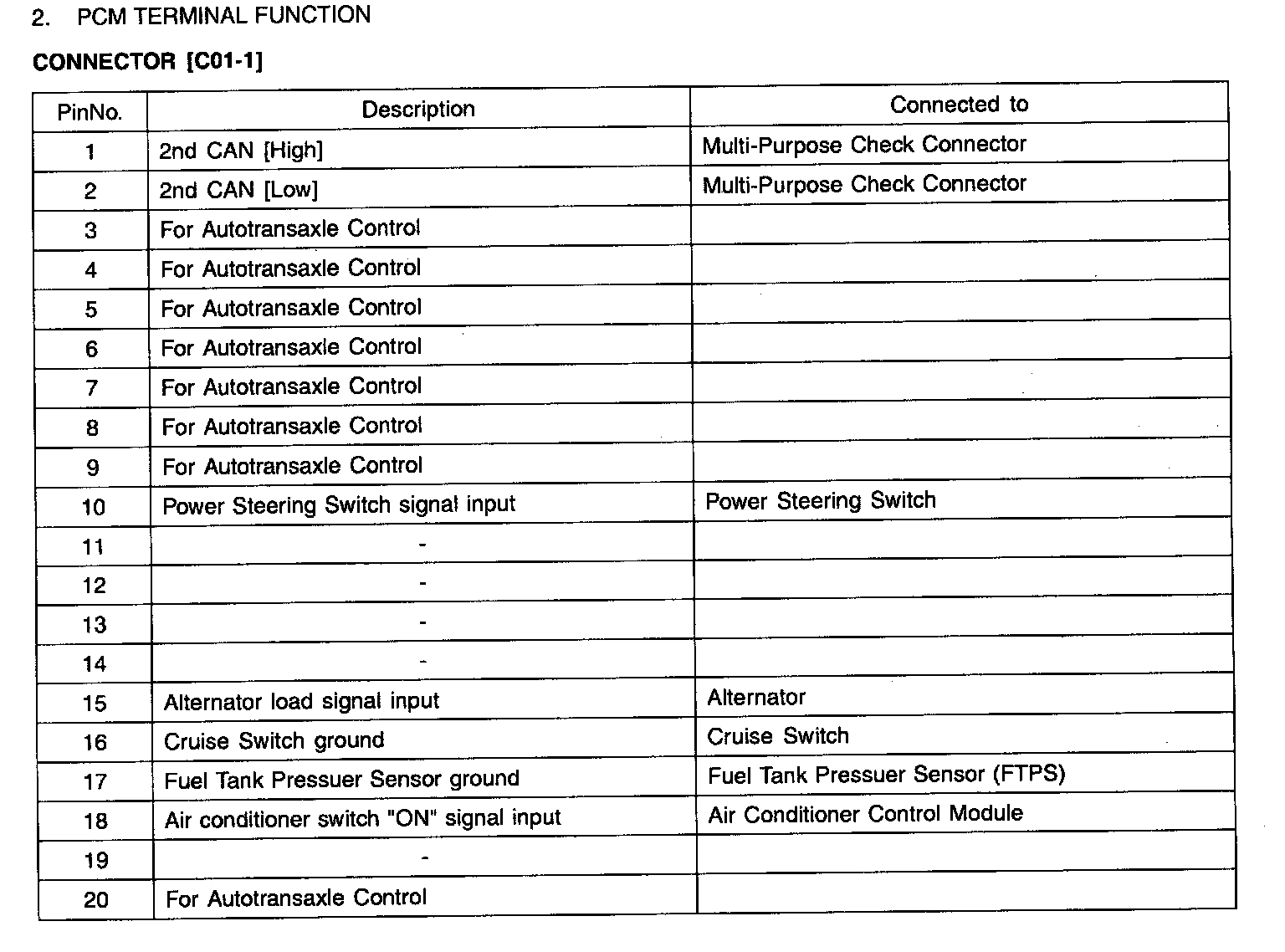

Powertrain Control Module (PCM) Terminal Function - CONNECTOR [C01-1] Part 1:

Powertrain Control Module (PCM) Terminal Function - CONNECTOR [C01-1] Part 2:

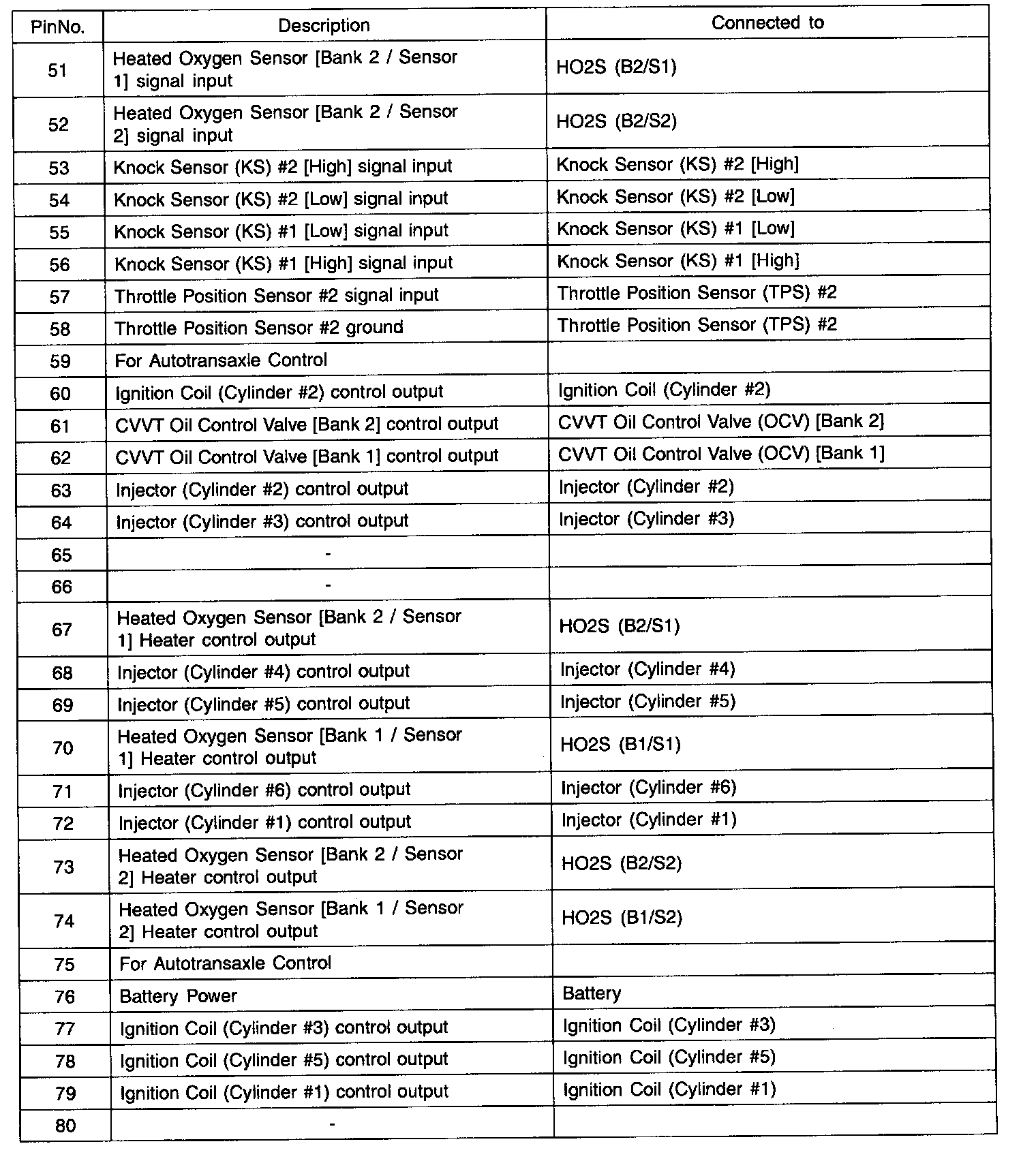

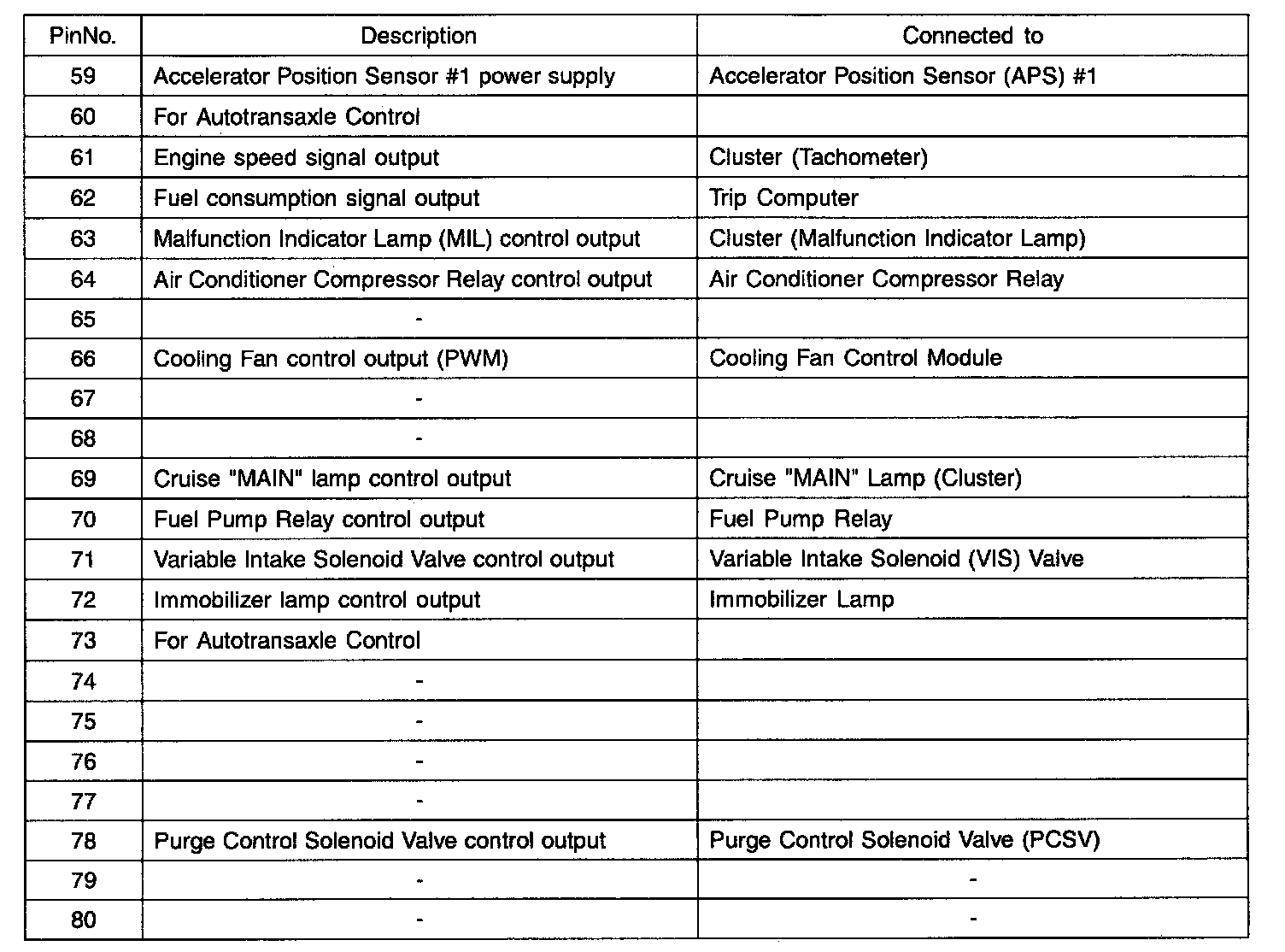

Powertrain Control Module (PCM) Terminal Function - CONNECTOR [C01-1] Part 3:

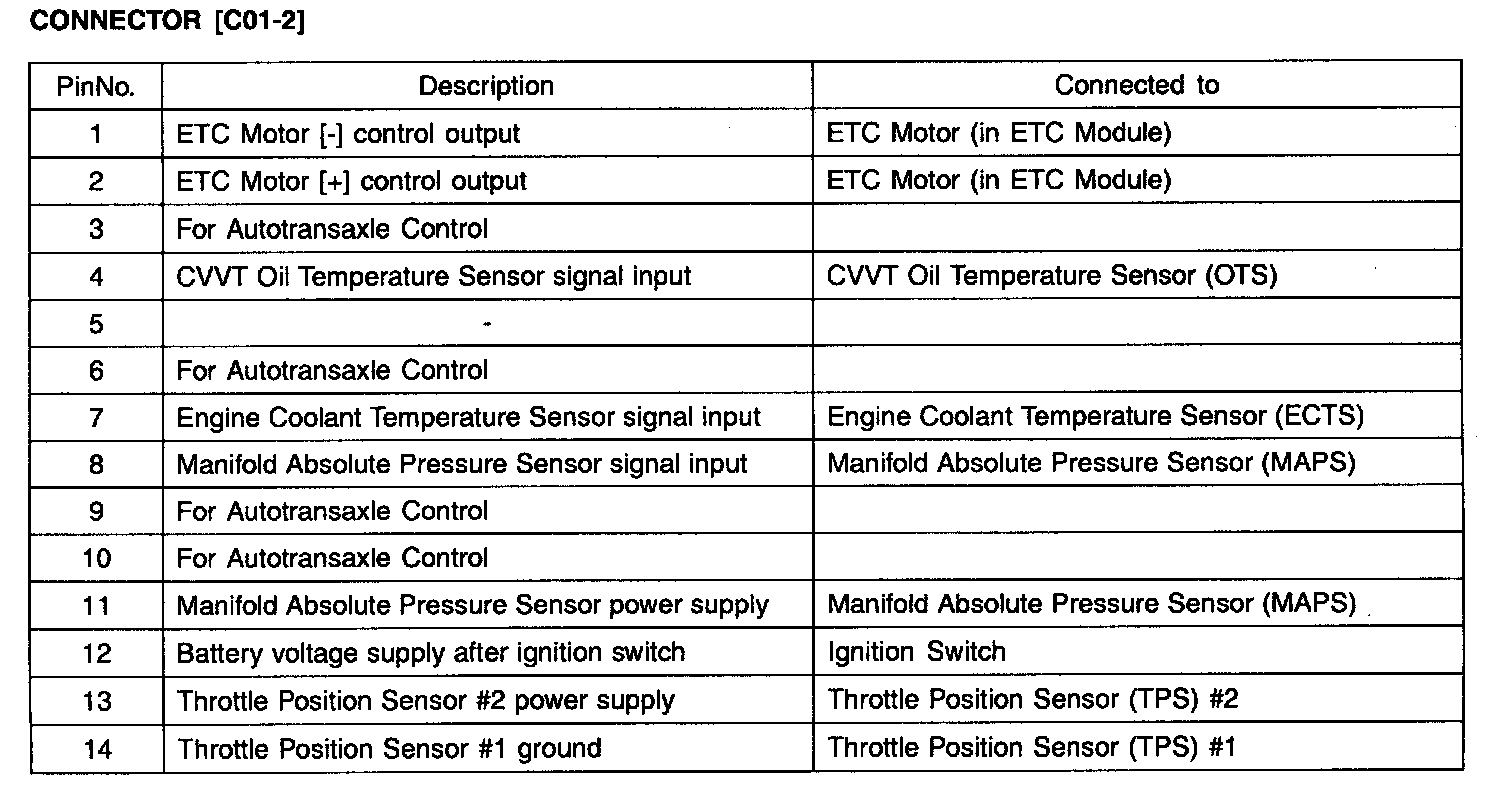

Powertrain Control Module (PCM) Terminal Function - CONNECTOR [C01-2] Part 1:

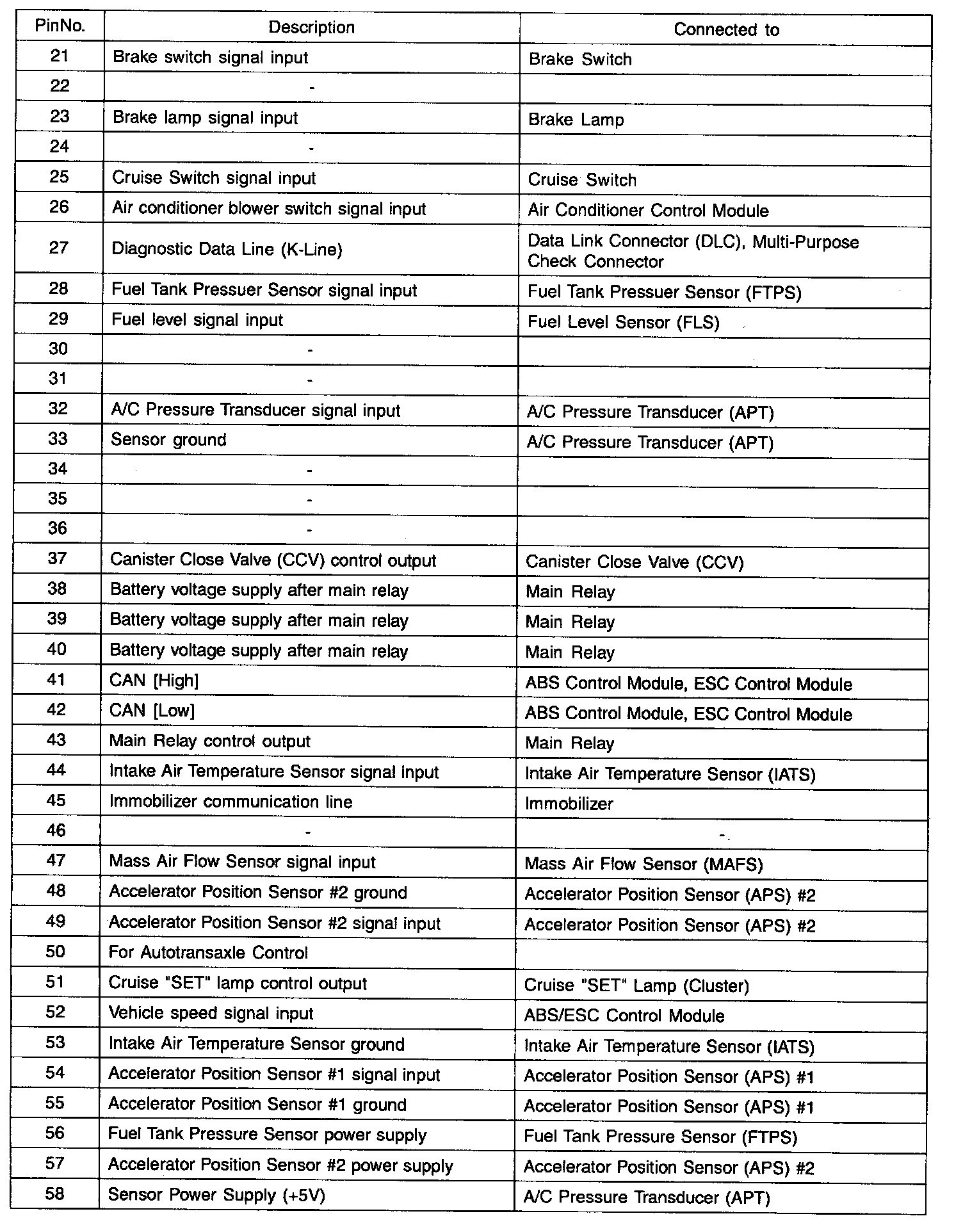

Powertrain Control Module (PCM) Terminal Function - CONNECTOR [C01-2] Part 2:

Powertrain Control Module (PCM) Terminal Function - CONNECTOR [C01-2] Part 3:

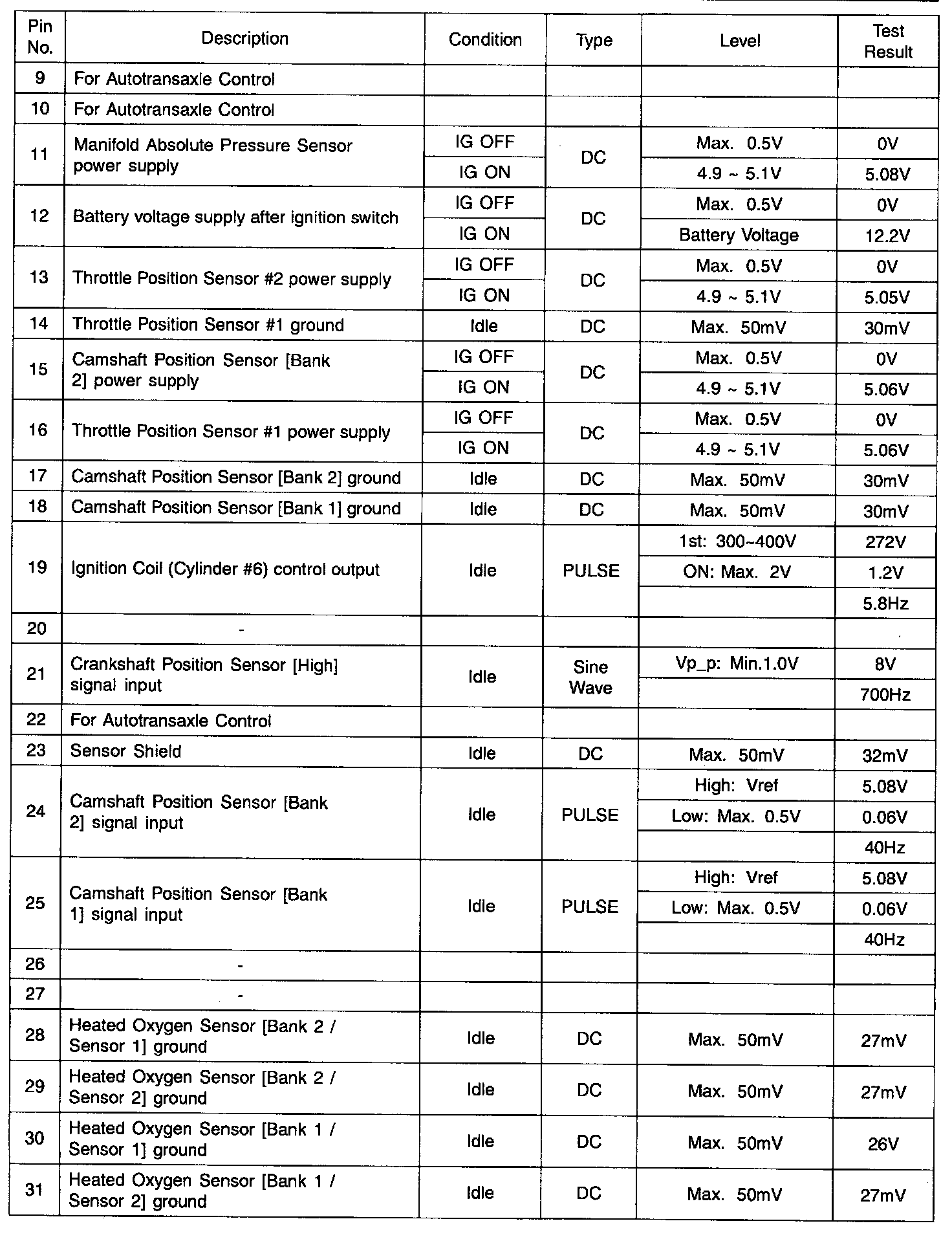

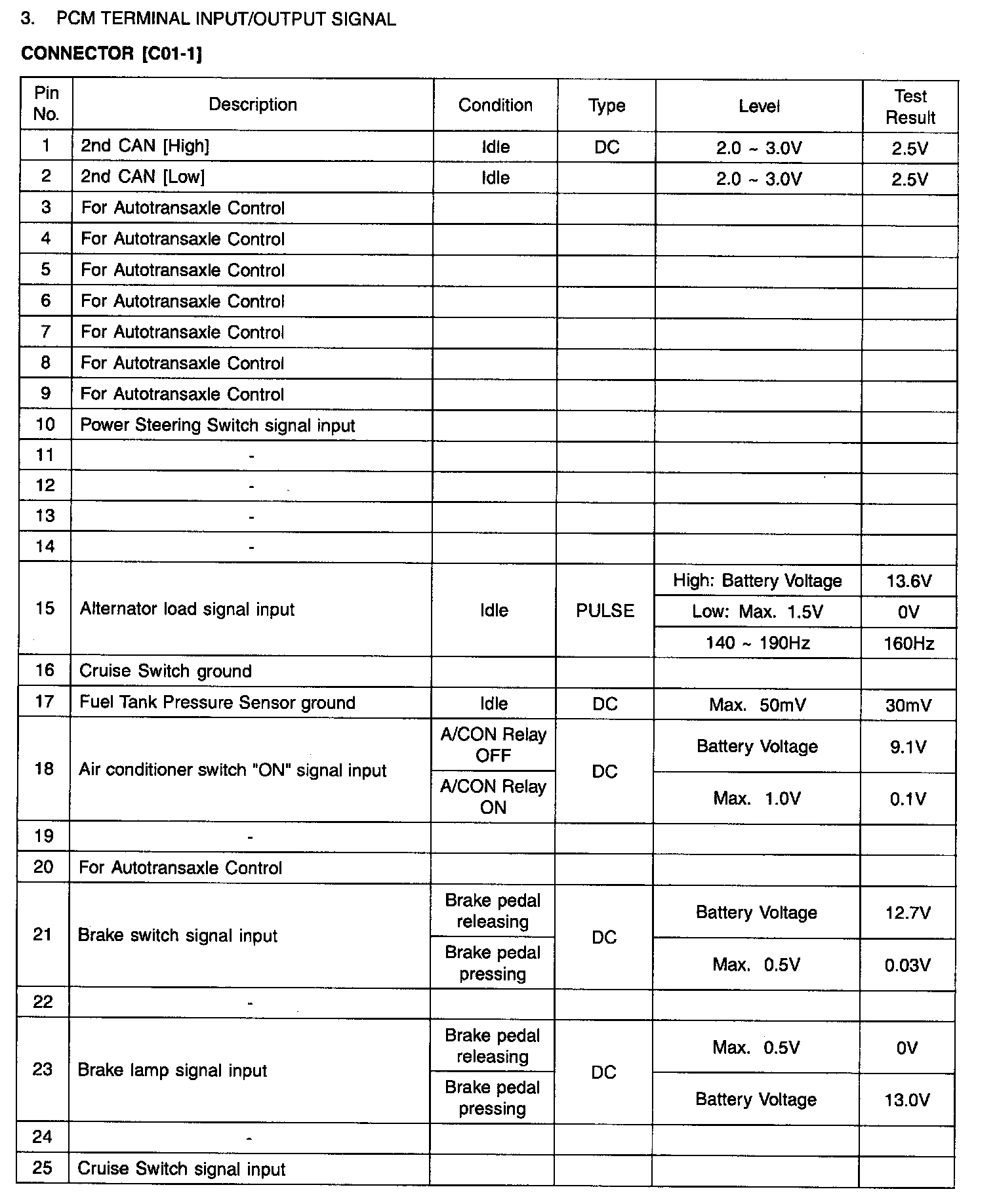

Powertrain Control Module (PCM) Terminal Input/Output Signal - Connector [C01-1] Part 1:

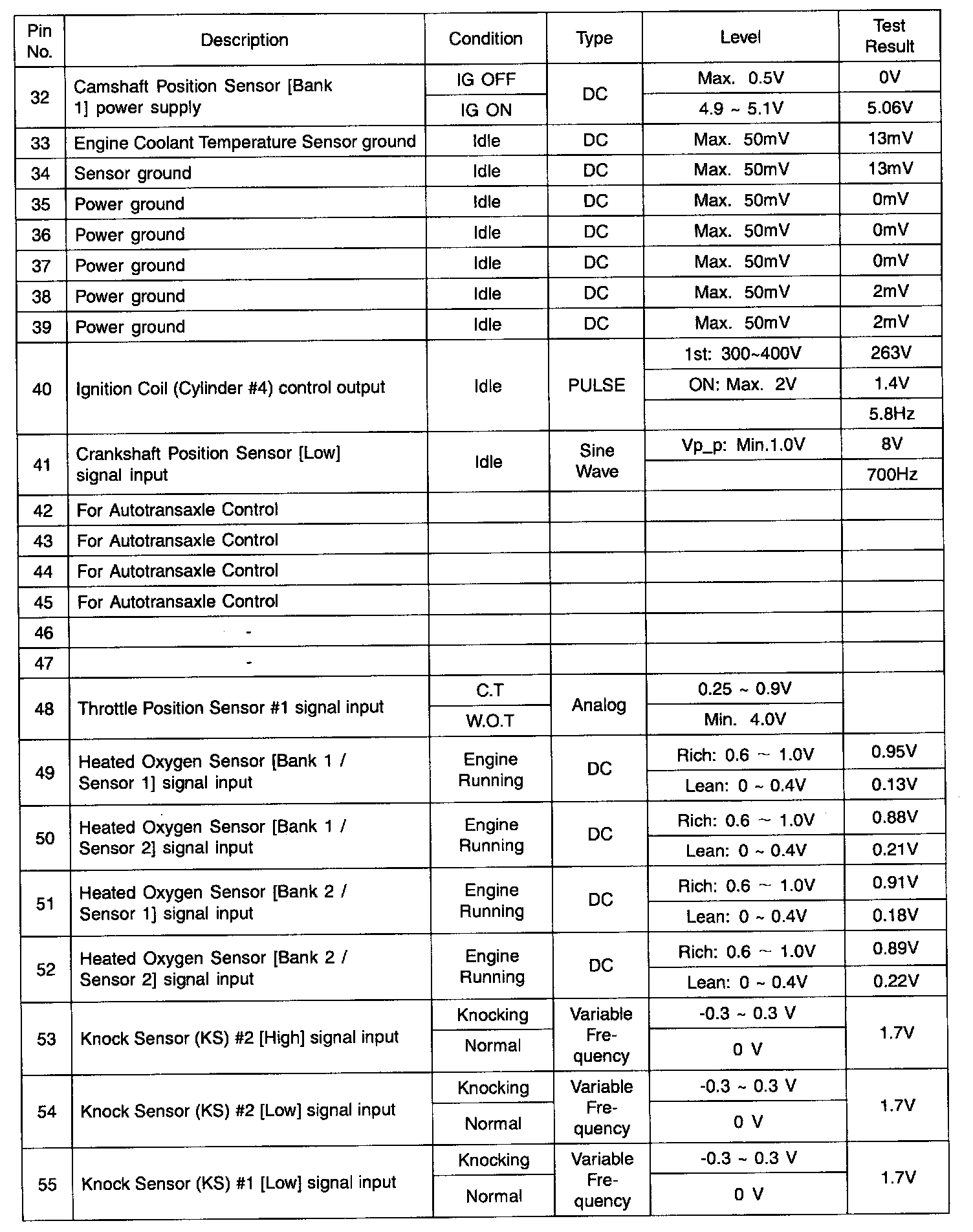

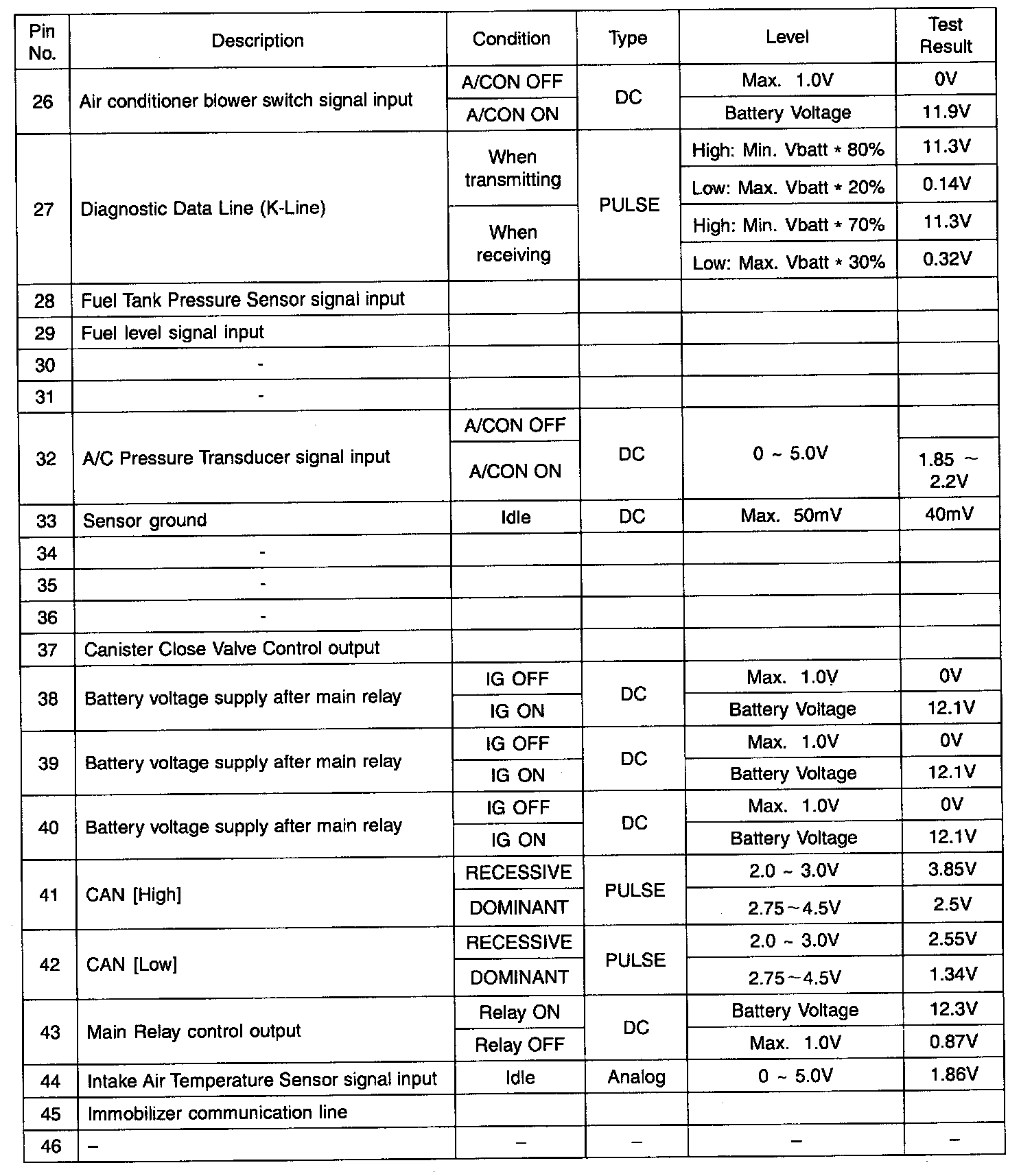

Powertrain Control Module (PCM) Terminal Input/Output Signal - Connector [C01-1] Part 2:

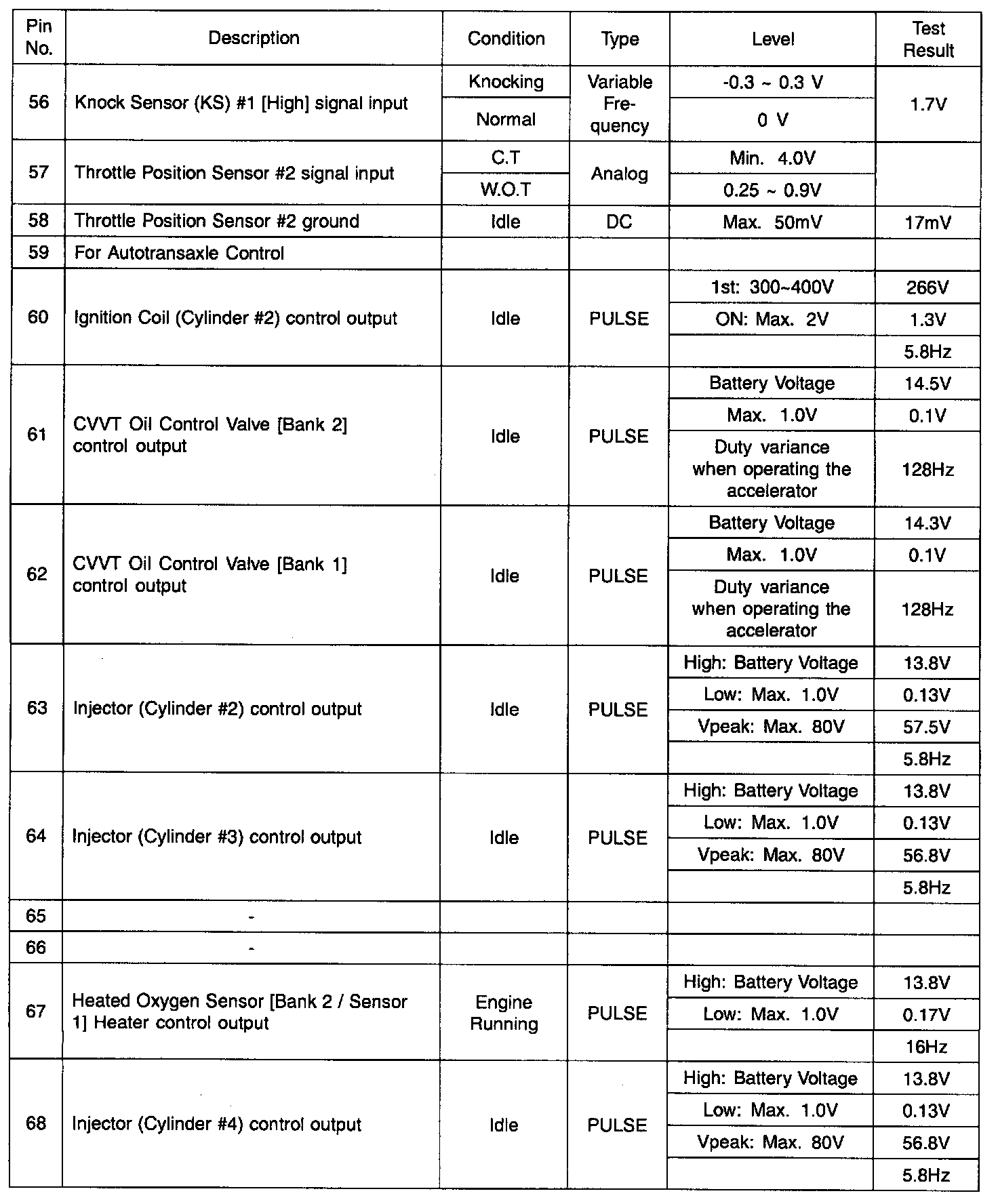

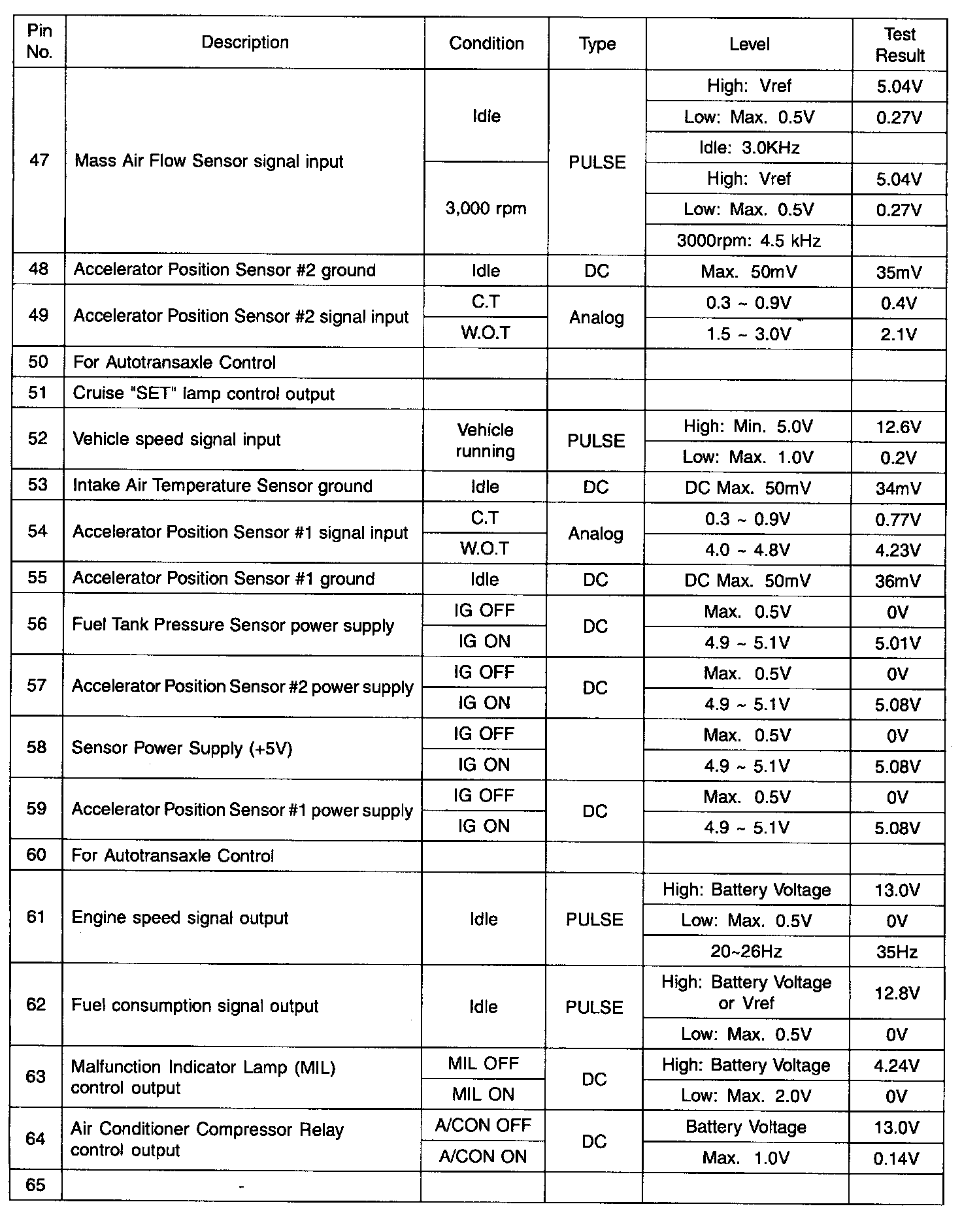

Powertrain Control Module (PCM) Terminal Input/Output Signal - Connector [C01-1] Part 3:

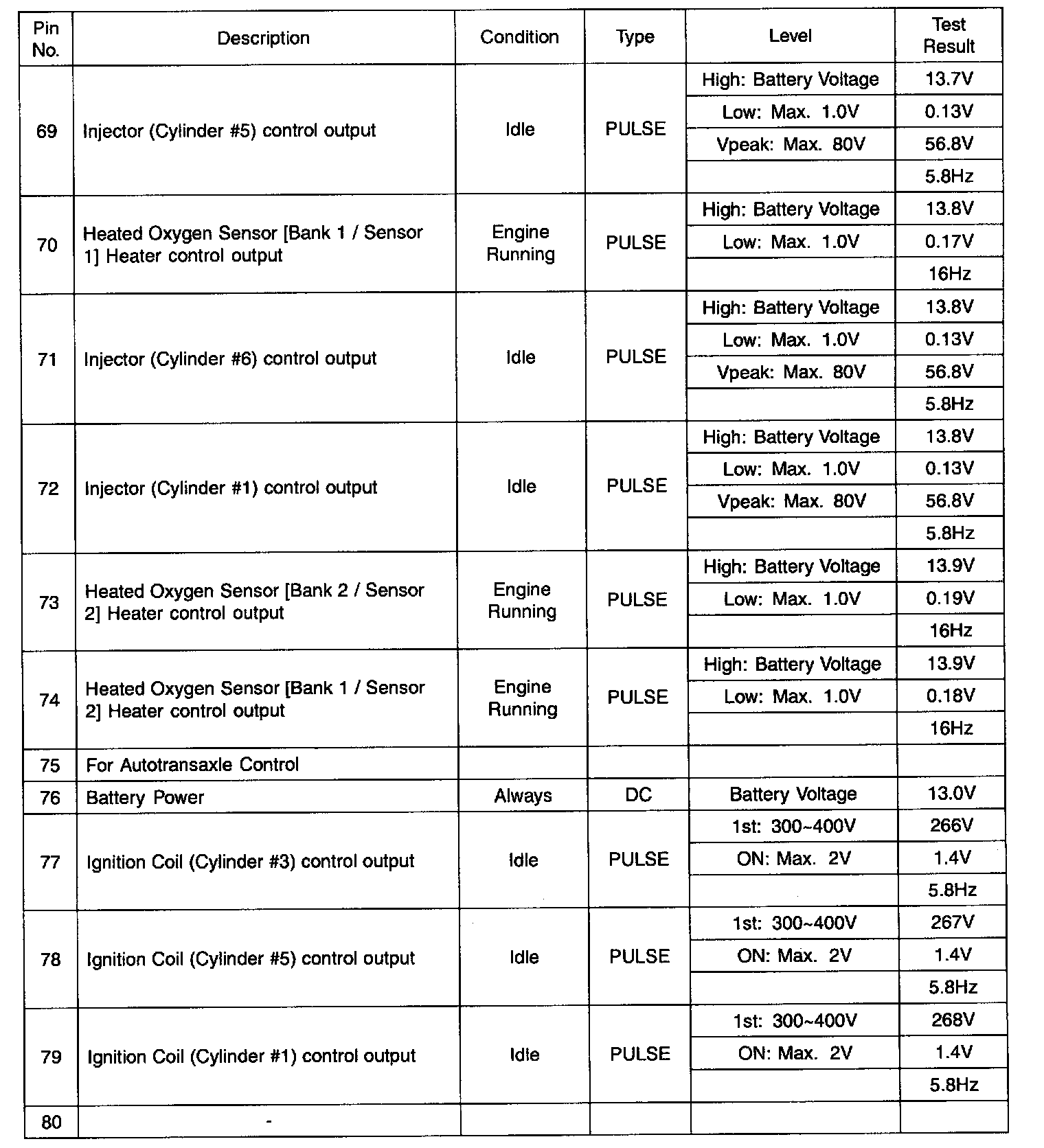

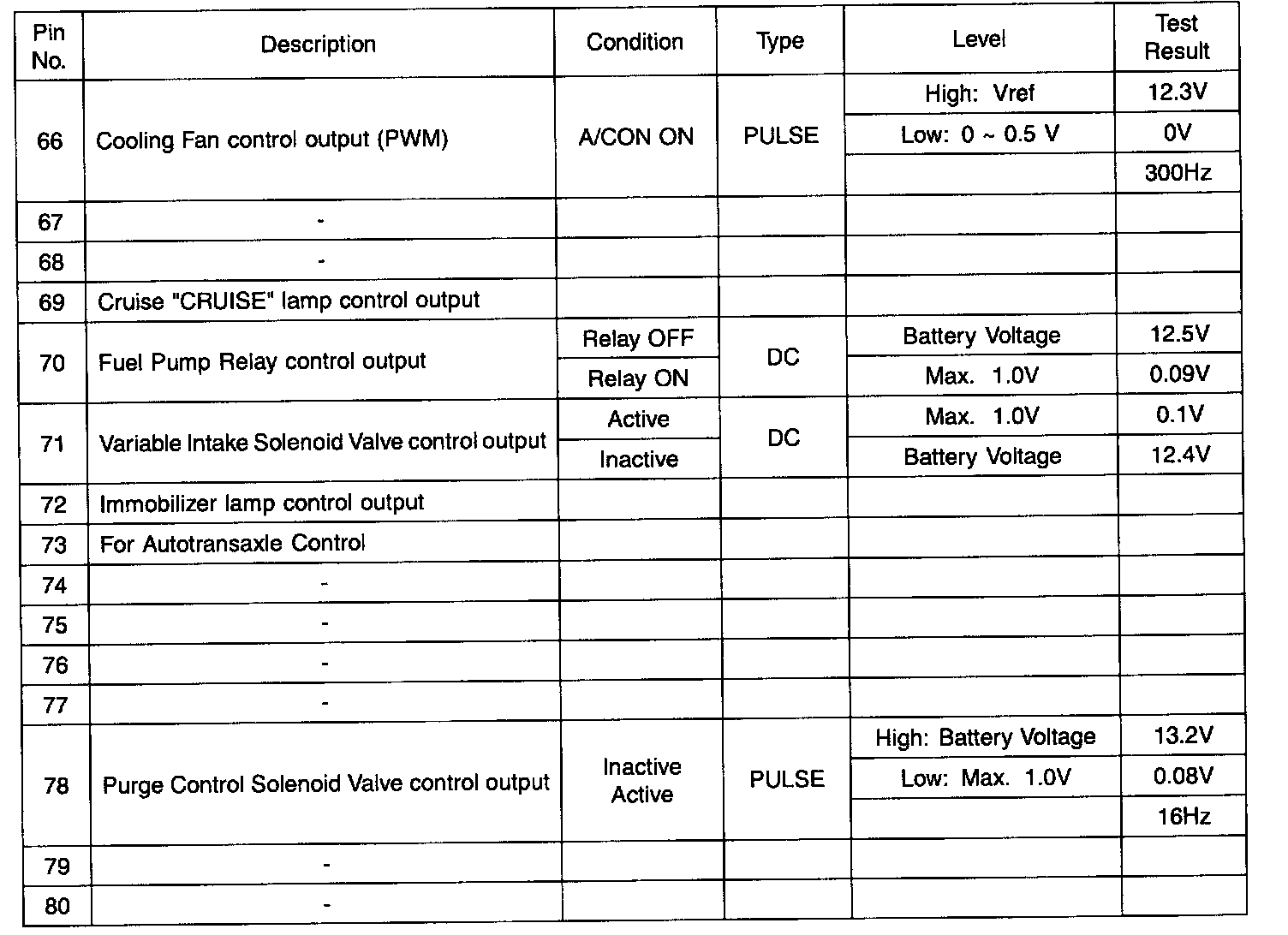

Powertrain Control Module (PCM) Terminal Input/Output Signal - Connector [C01-1] Part 4:

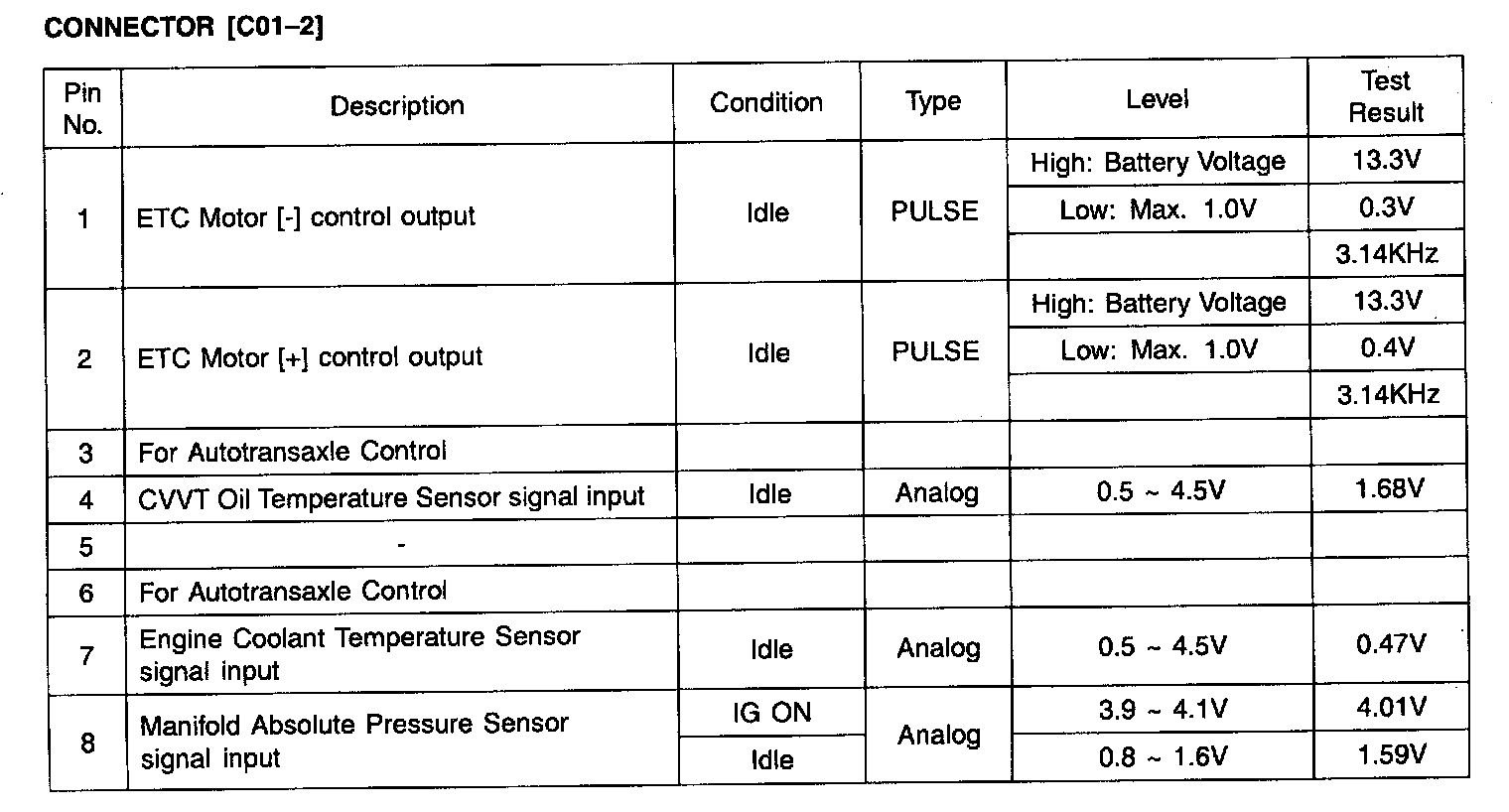

Powertrain Control Module (PCM) Terminal Input/Output Signal - Connector [C01-2] Part 1:

Powertrain Control Module (PCM) Terminal Input/Output Signal - Connector [C01-2] Part 2:

Powertrain Control Module (PCM) Terminal Input/Output Signal - Connector [C01-2] Part 3:

Powertrain Control Module (PCM) Terminal Input/Output Signal - Connector [C01-2] Part 4:

Powertrain Control Module (PCM) Terminal Input/Output Signal - Connector [C01-2] Part 5:
