FAM (Front Area Module)

FAM (FRONT AREA MODULE)

1. Disconnect the negative (-) battery terminal.
2. Remove the FAM cover from the engine room.

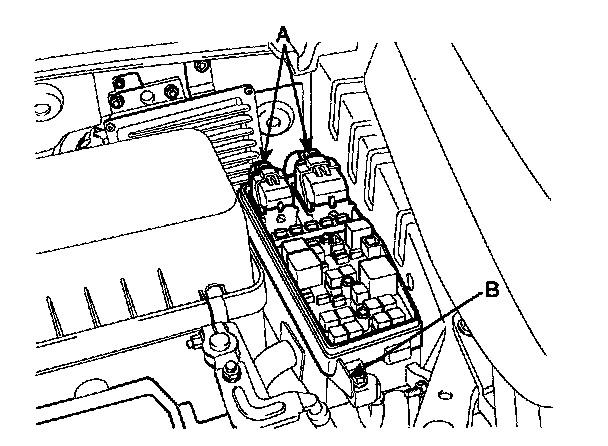

3. Remove the 2 FAM connectors (A) and battery terminal nut (B).

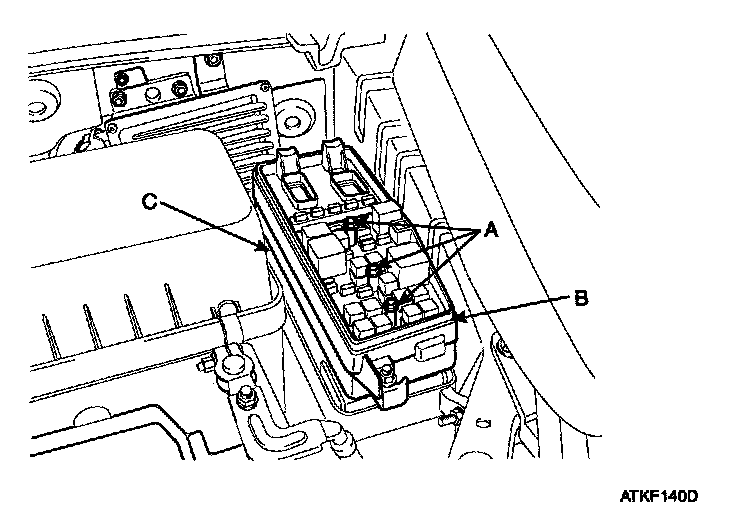

4. Remove the IPM (B) from the splash shield (C) after loosening the 3 IPM mounting bolts (A) and the IPM mounting clip.






5. Disconnect the connector from the splash shield.
6. Installation is the reverse of removal.
