RAM (Rear Area Module)

RAM (REAR AREA MODULE)

1. Disconnect the negative (-) battery terminal.
2. Remove the left luggage side trim

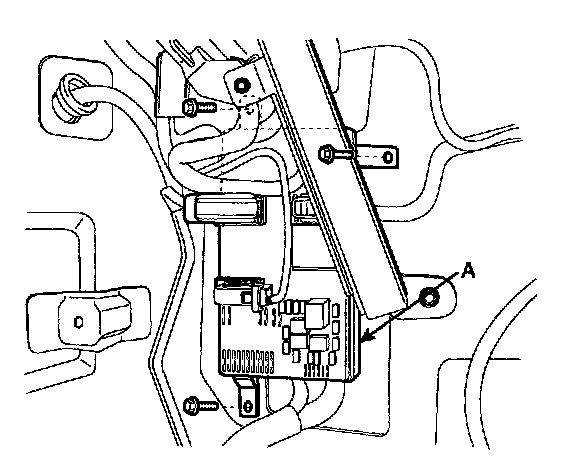

3. Remove the RAM (A) after loosening the 7 connectors and the 3 RAM mounting bolts (A).






4. Installation is the reverse of removal.
