Connector Views
ENGINE CONTROL MODULE (ECM)ECM HARNESS CONNECTOR
ECM Harness Connector:

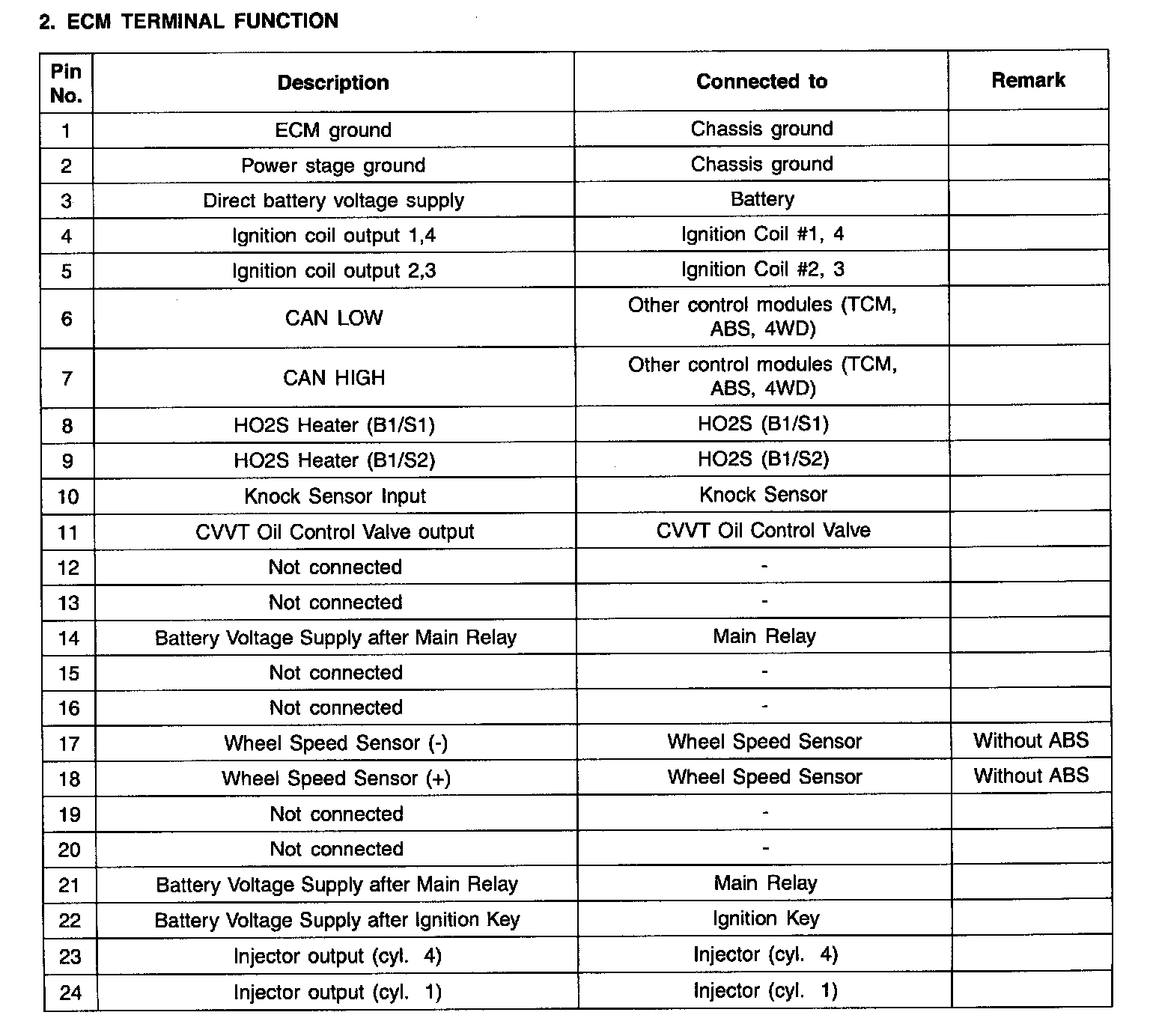

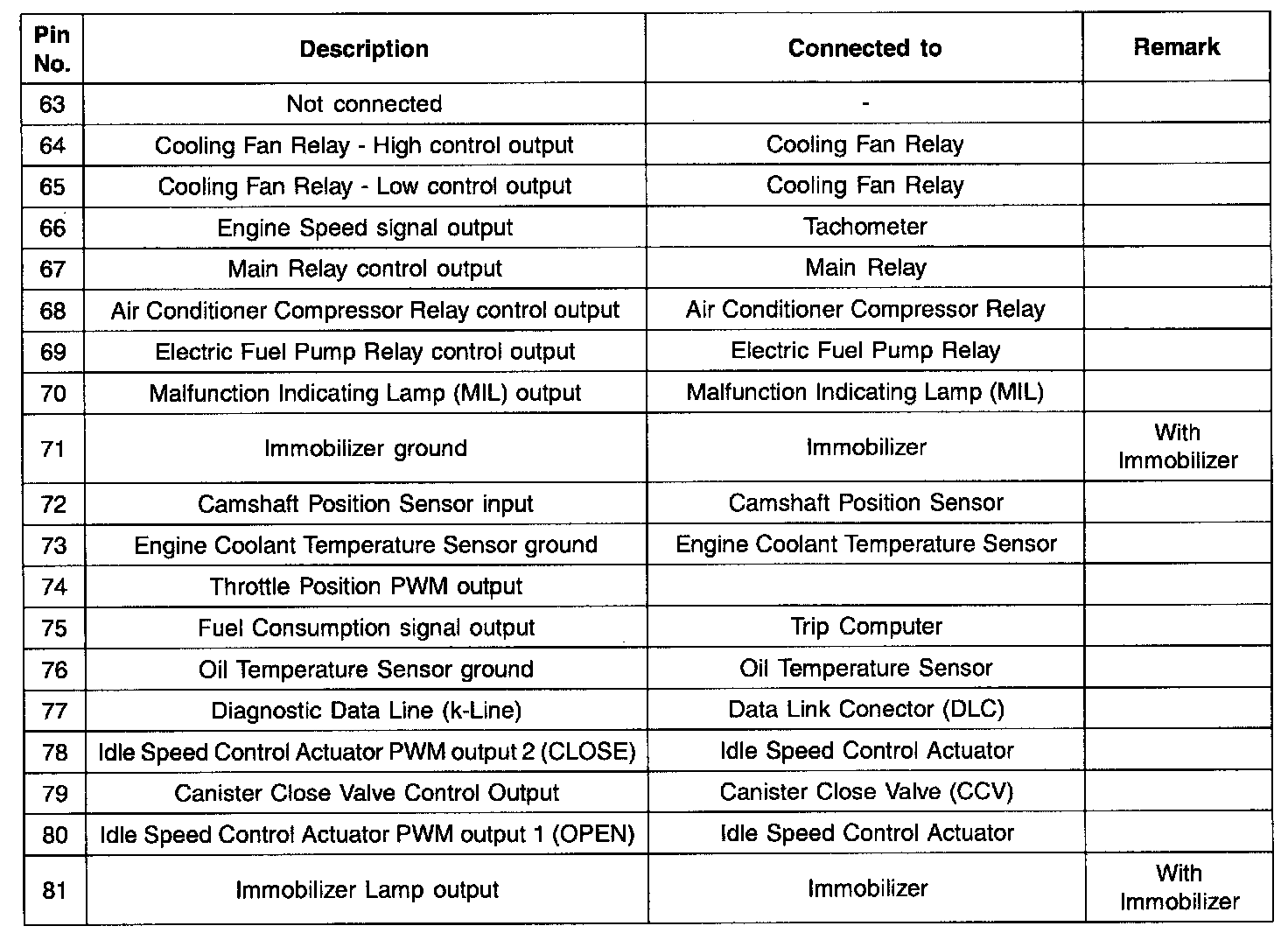

ECM TERMINAL FUNCTION
ECM Terminal Function (Part 1):
ECM Terminal Function (Part 2):
ECM Terminal Function (Part 3):

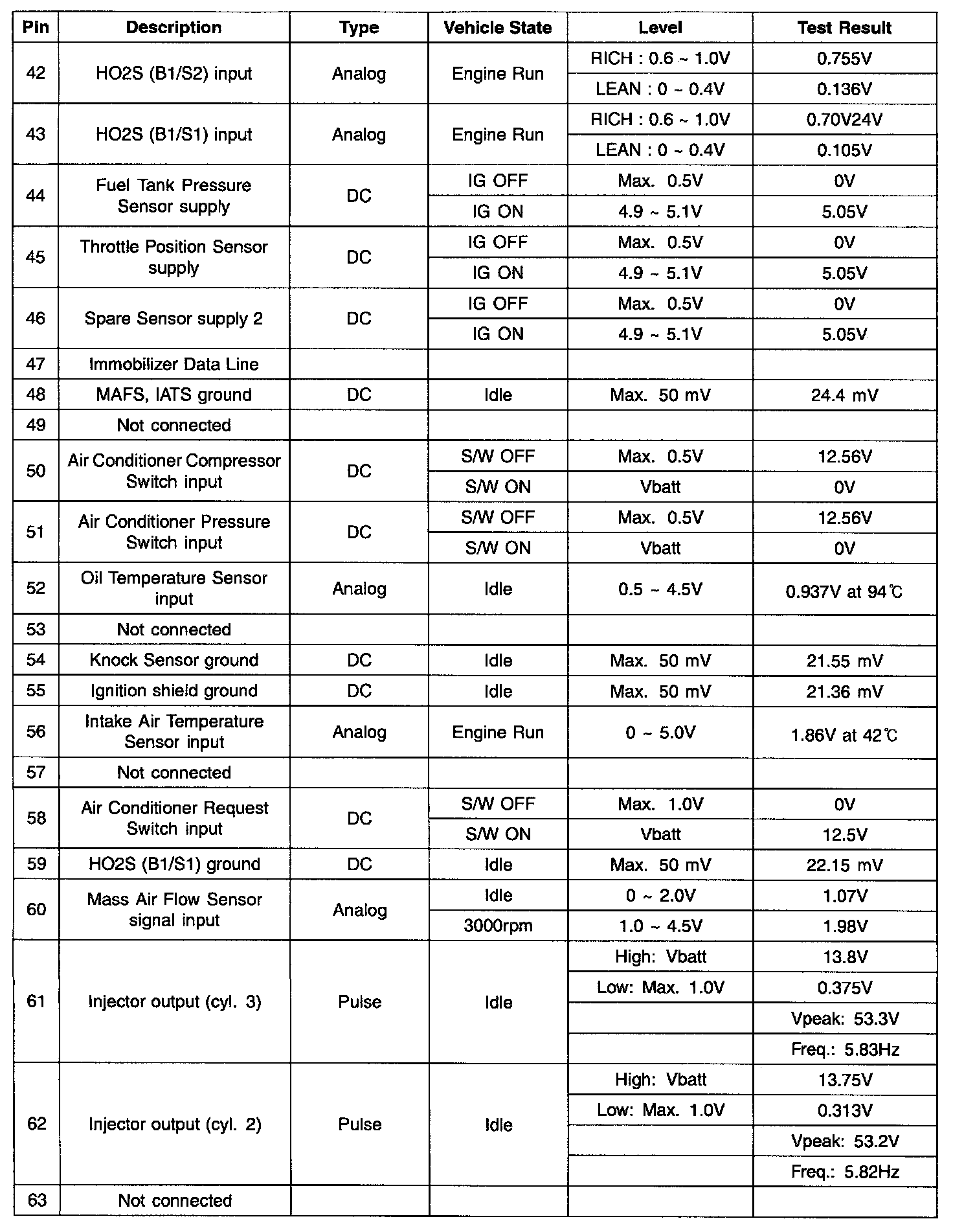

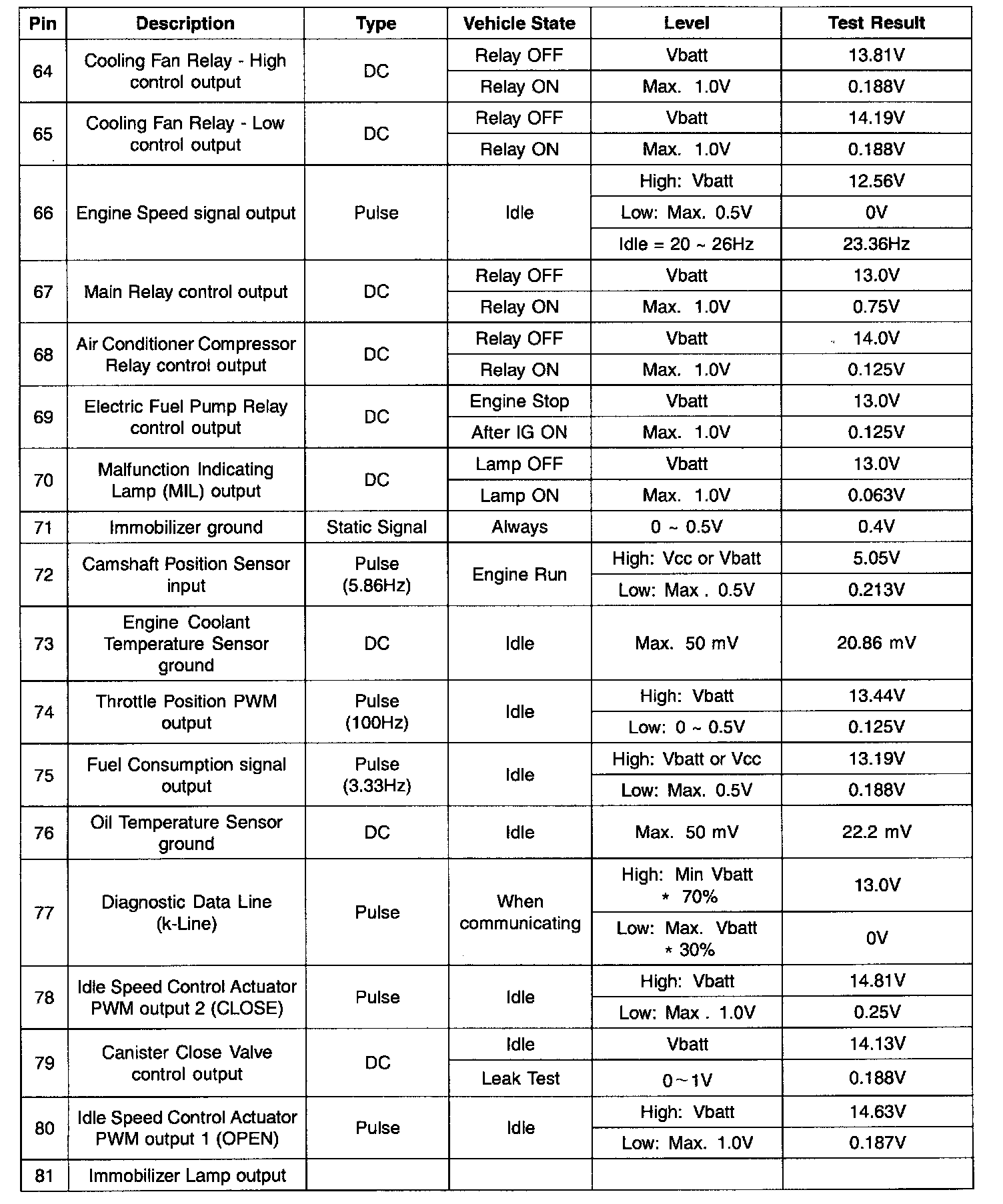

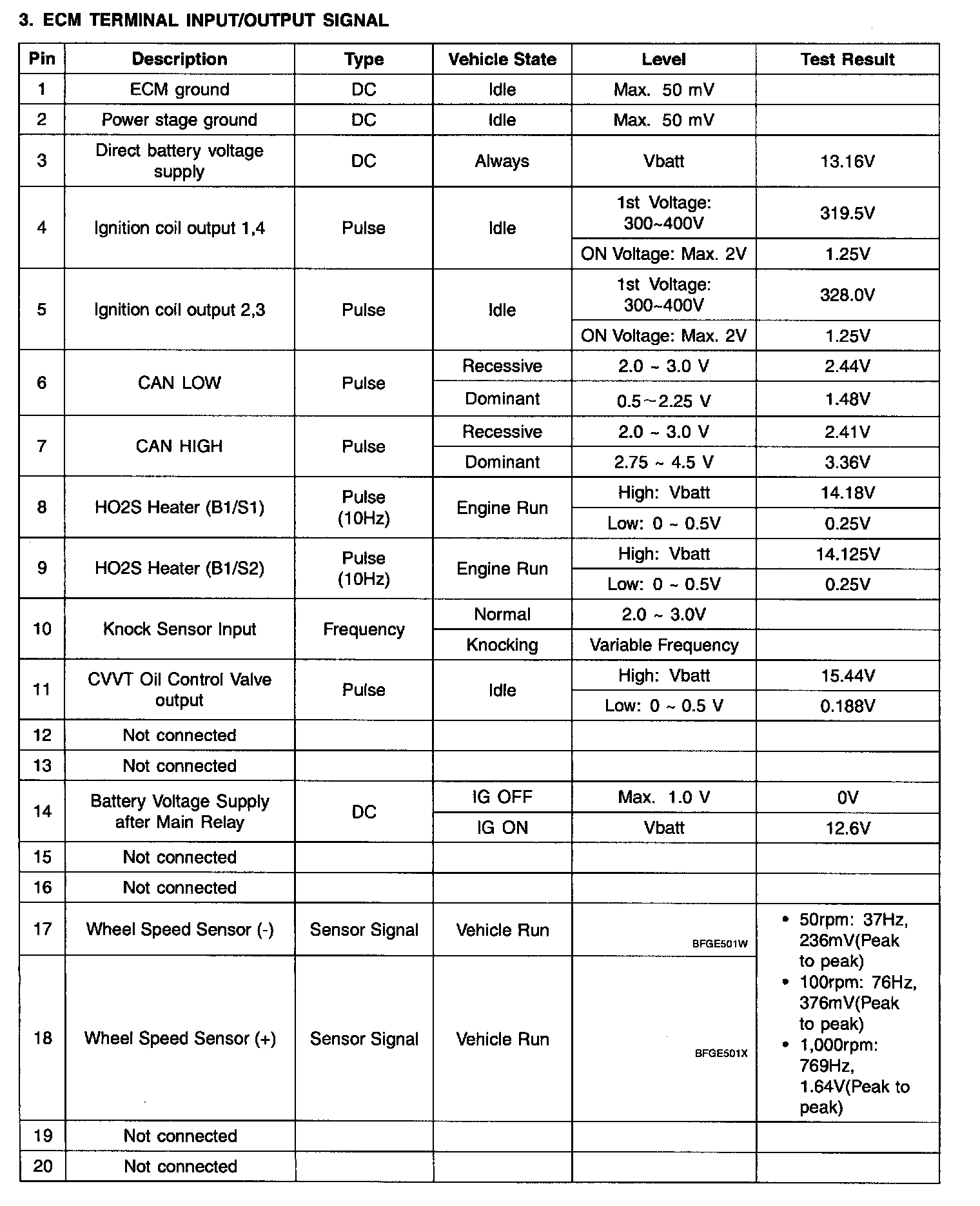

ECM TERMINAL INPUT/OUTPUT SIGNAL
ECM Terminal Input/Output Signal (Part 1):
ECM Terminal Input/Output Signal (Part 2):
ECM Terminal Input/Output Signal (Part 3):
ECM Terminal Input/Output Signal (Part 4):
