Windshield Washer Motor: Service and Repair

FRONT WASHER MOTOR

REMOVAL

CAUTION:
- When servicing the washer pump, be careful not to damage the washer pump seal.
- Do not operate the washer pump before filling the washer reservoir.
- Failure to do so could result in premature pump failure.

1. Disconnect the negative (-) battery terminal.
2. Remove the front bumper cover.

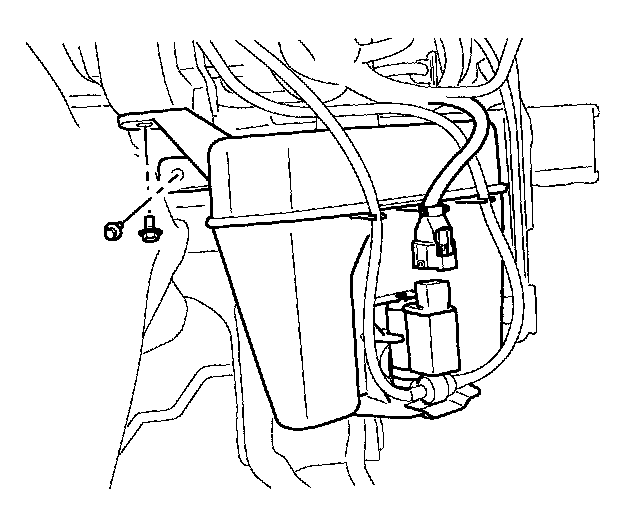

3. Remove the washer hose and the washer motor connector.
4. Remove the washer reservoir after removing 2 bolts.






5. Installation is the reverse of removal.

NOTE: Before installing the pump motor, check the filter for foreign material or contamination. If necessary, clean the filter into the pump motor.
