Electrical Diagrams

Powertrain Control Module (PCM)

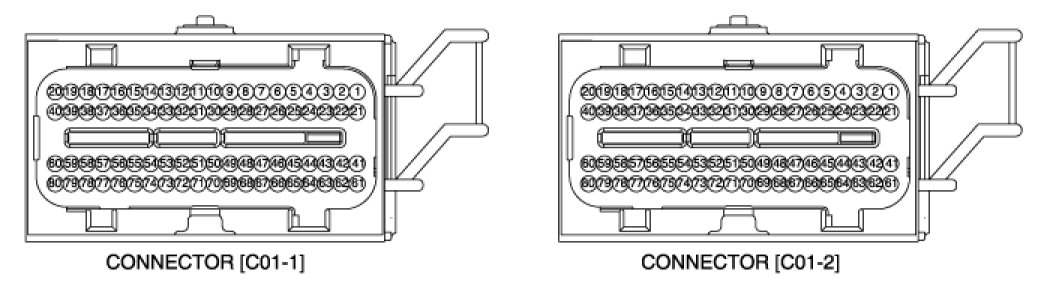

1. PCM HARNESS CONNECTOR

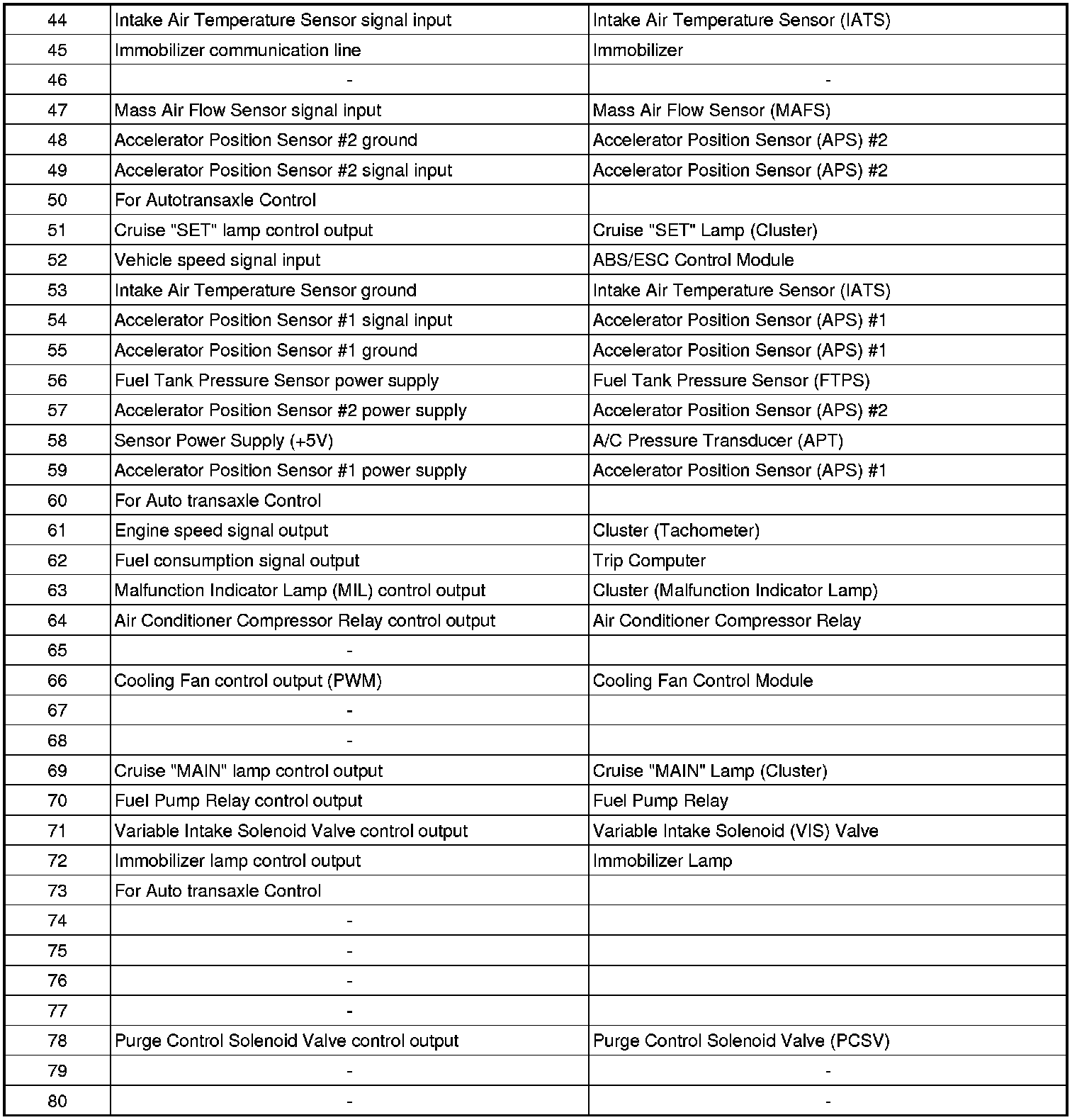

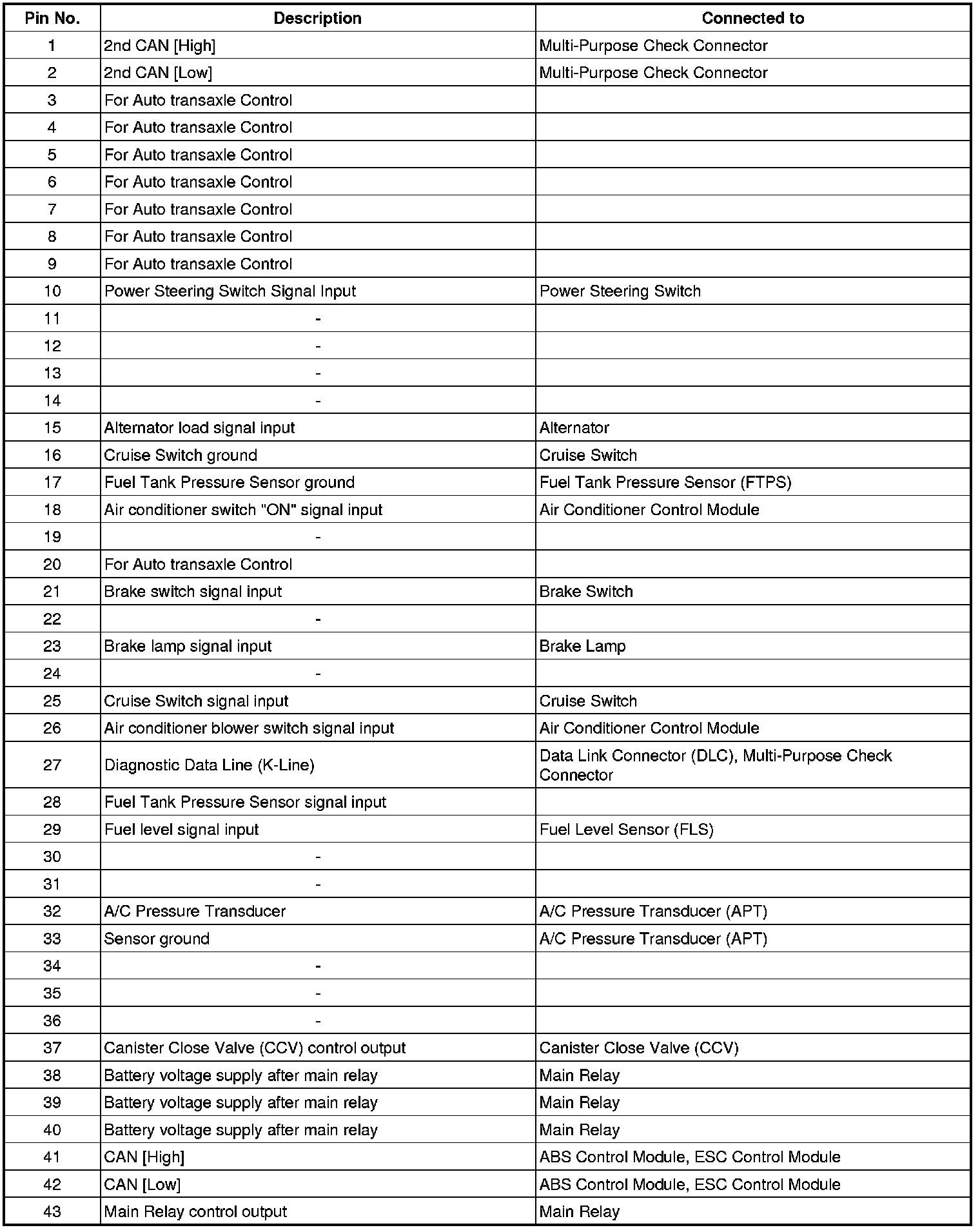

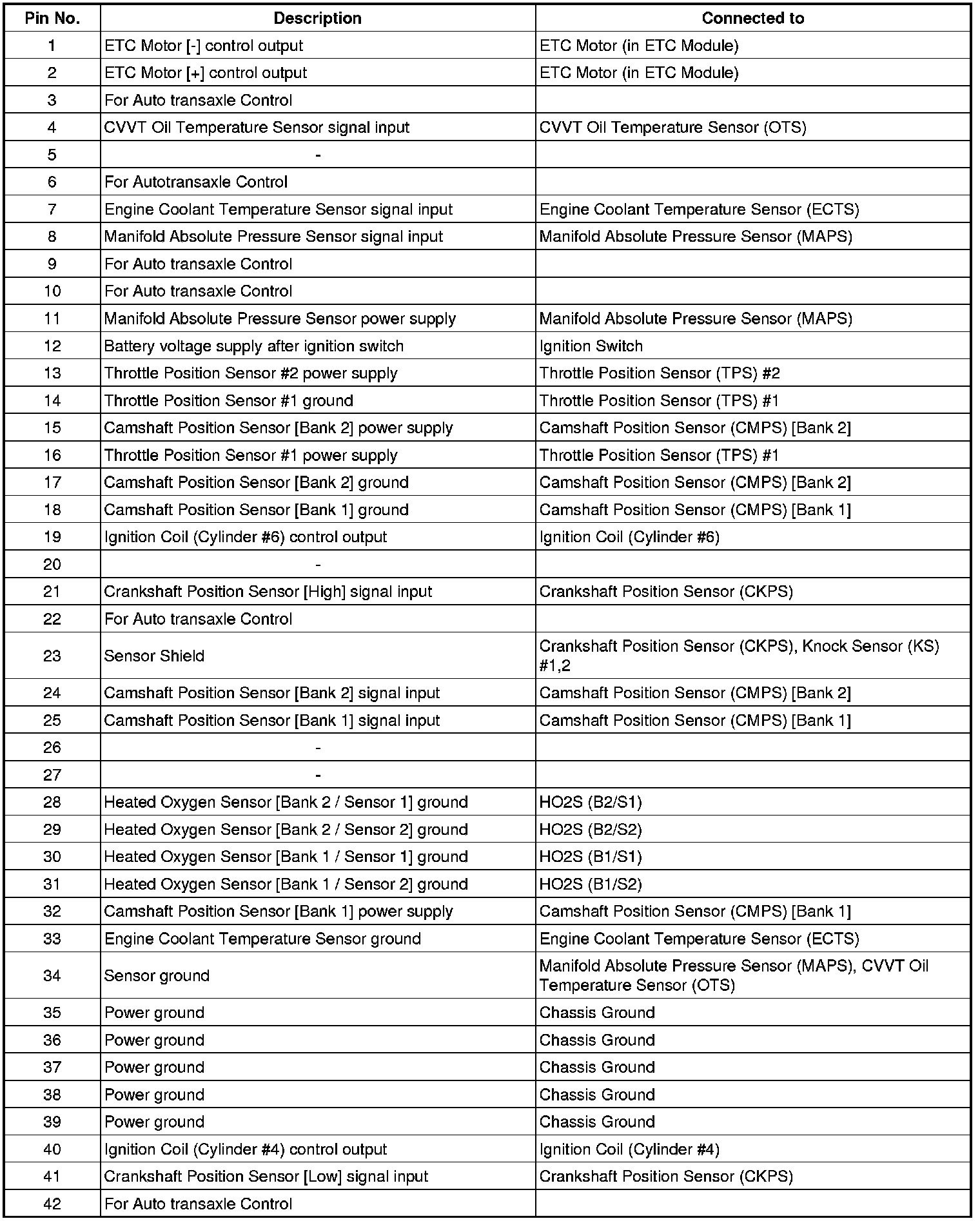

2. PCM TERMINAL FUNCTION
Connector [C01-1]









Connector [C01-2]

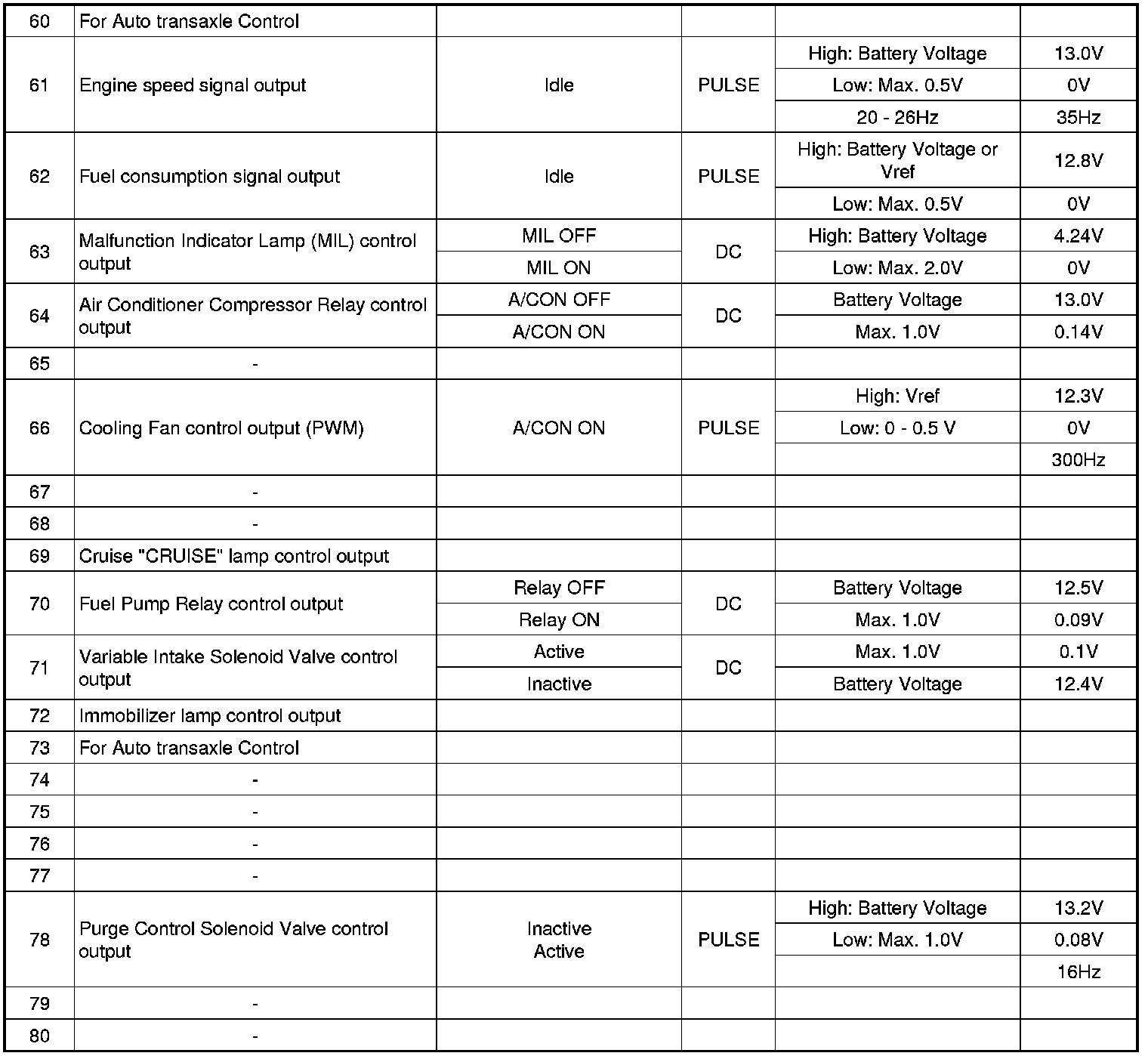

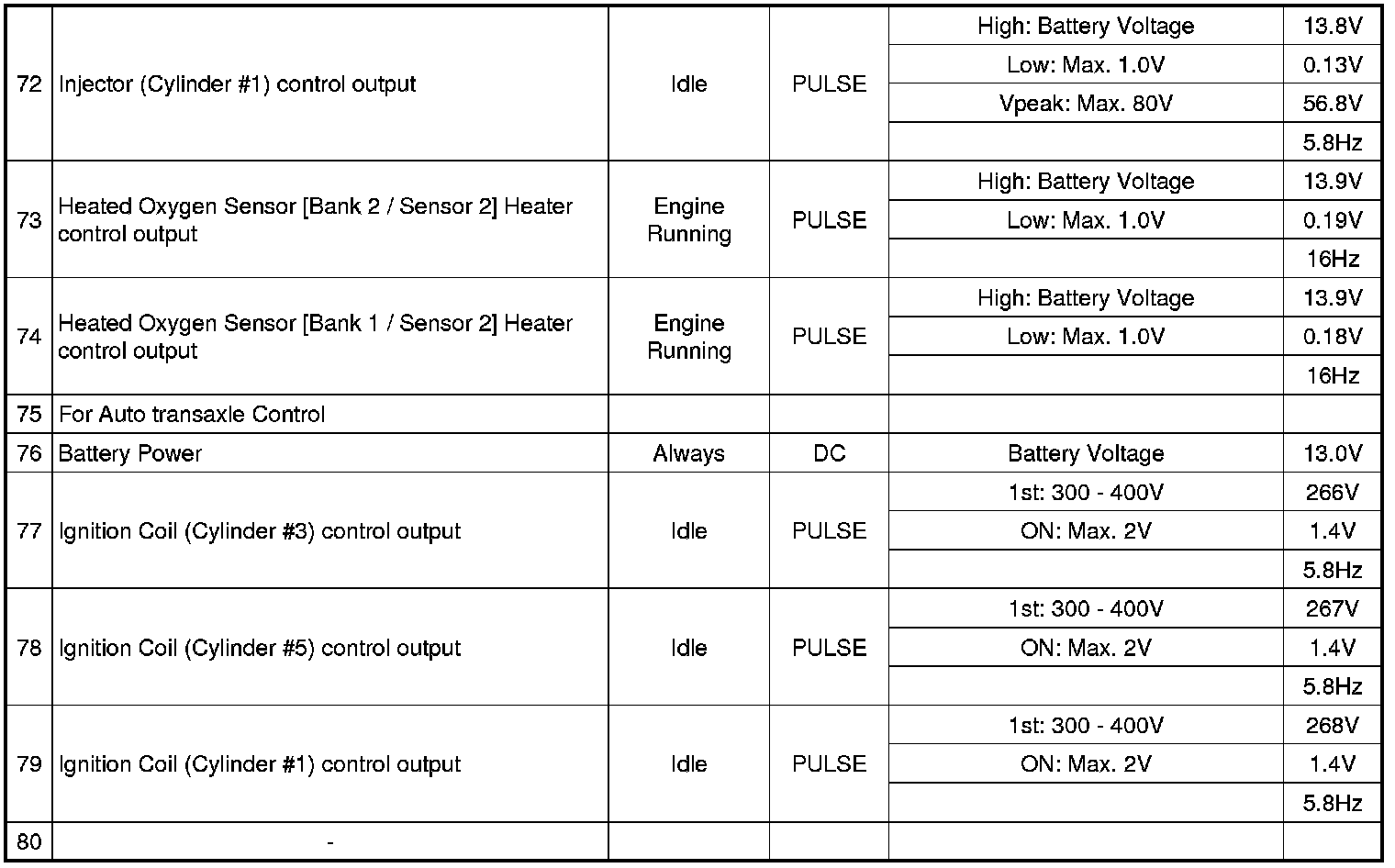

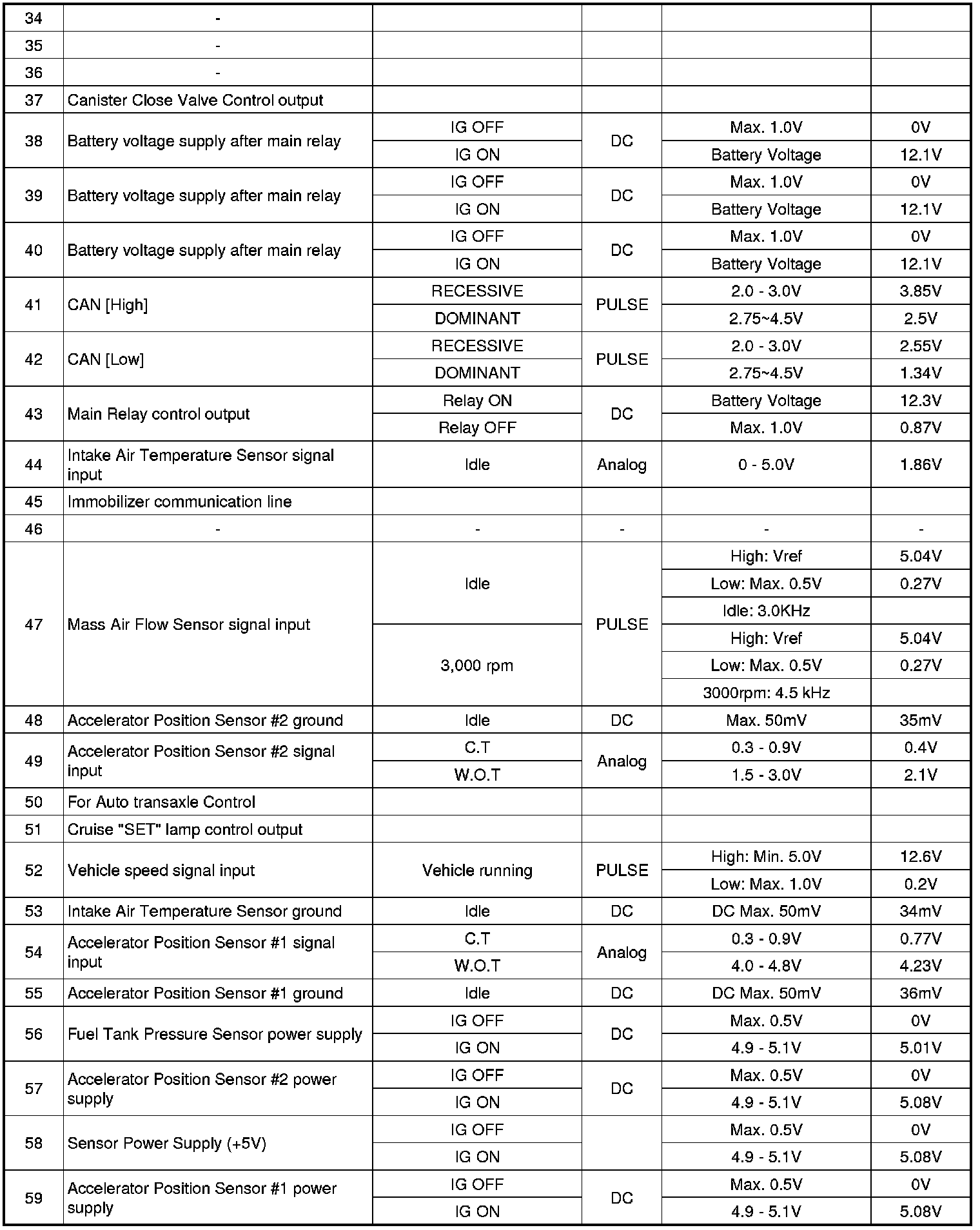

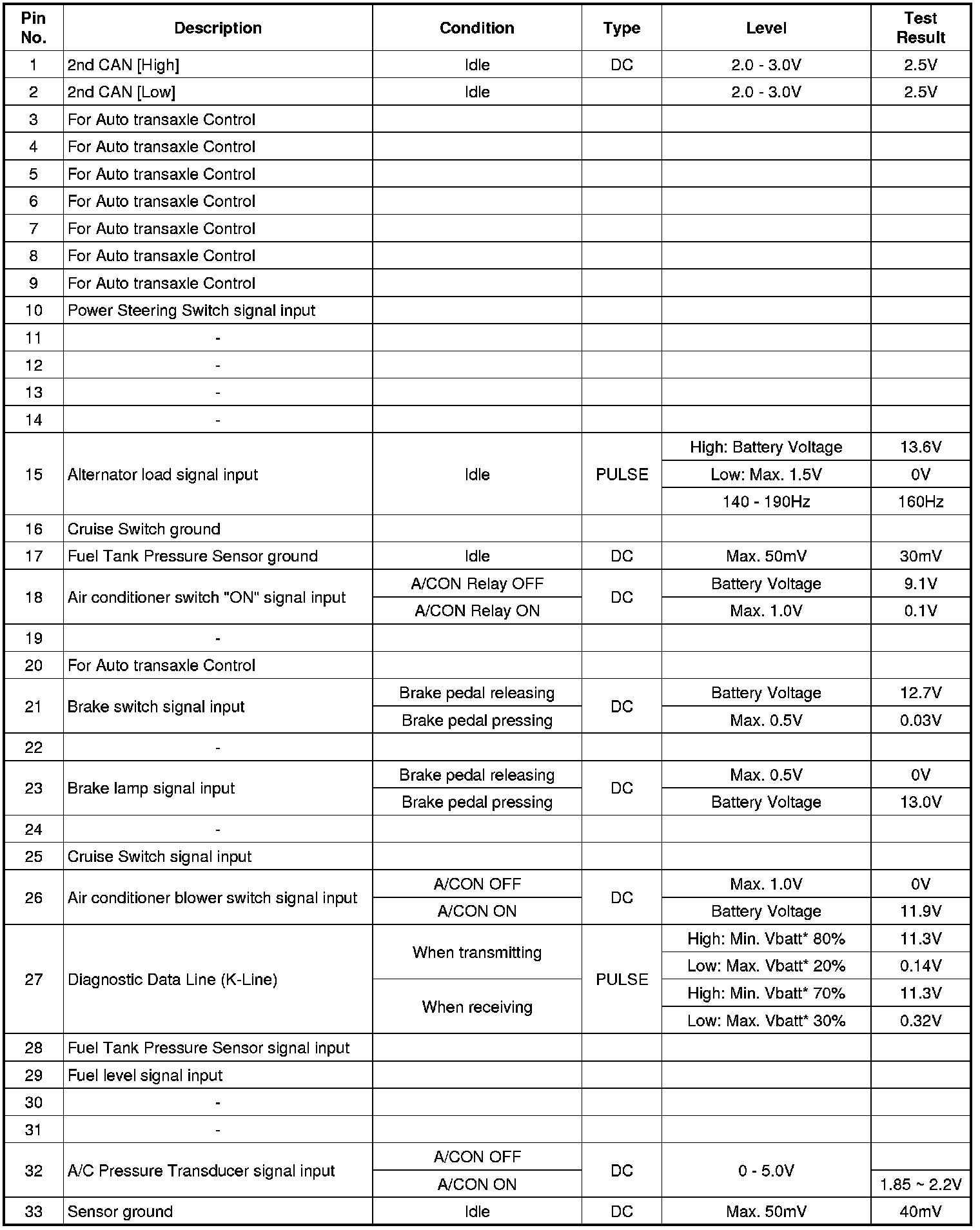

3. PCM TERMINAL INPUT/OUTPUT SIGNAL

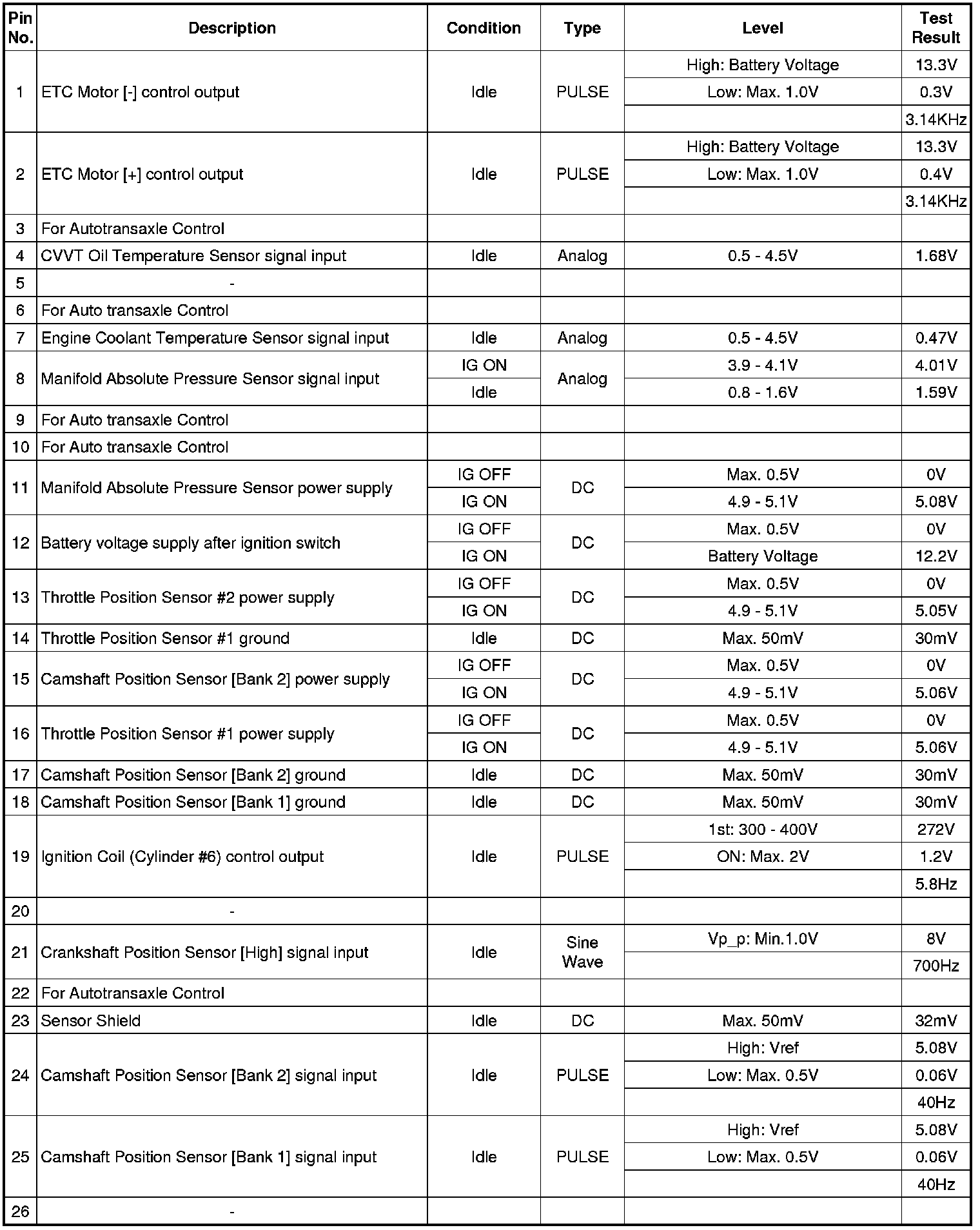

Connector [C01-1]

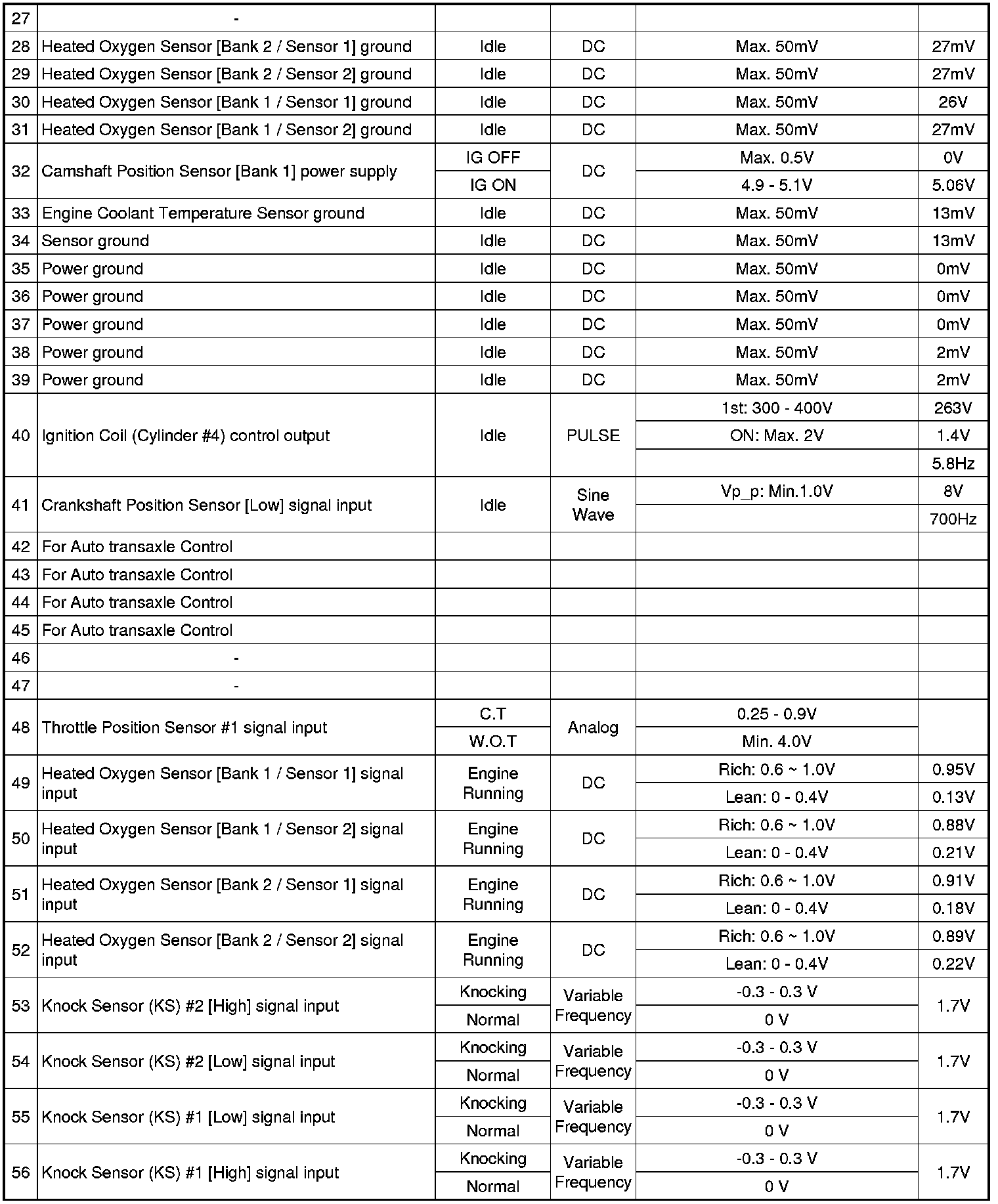

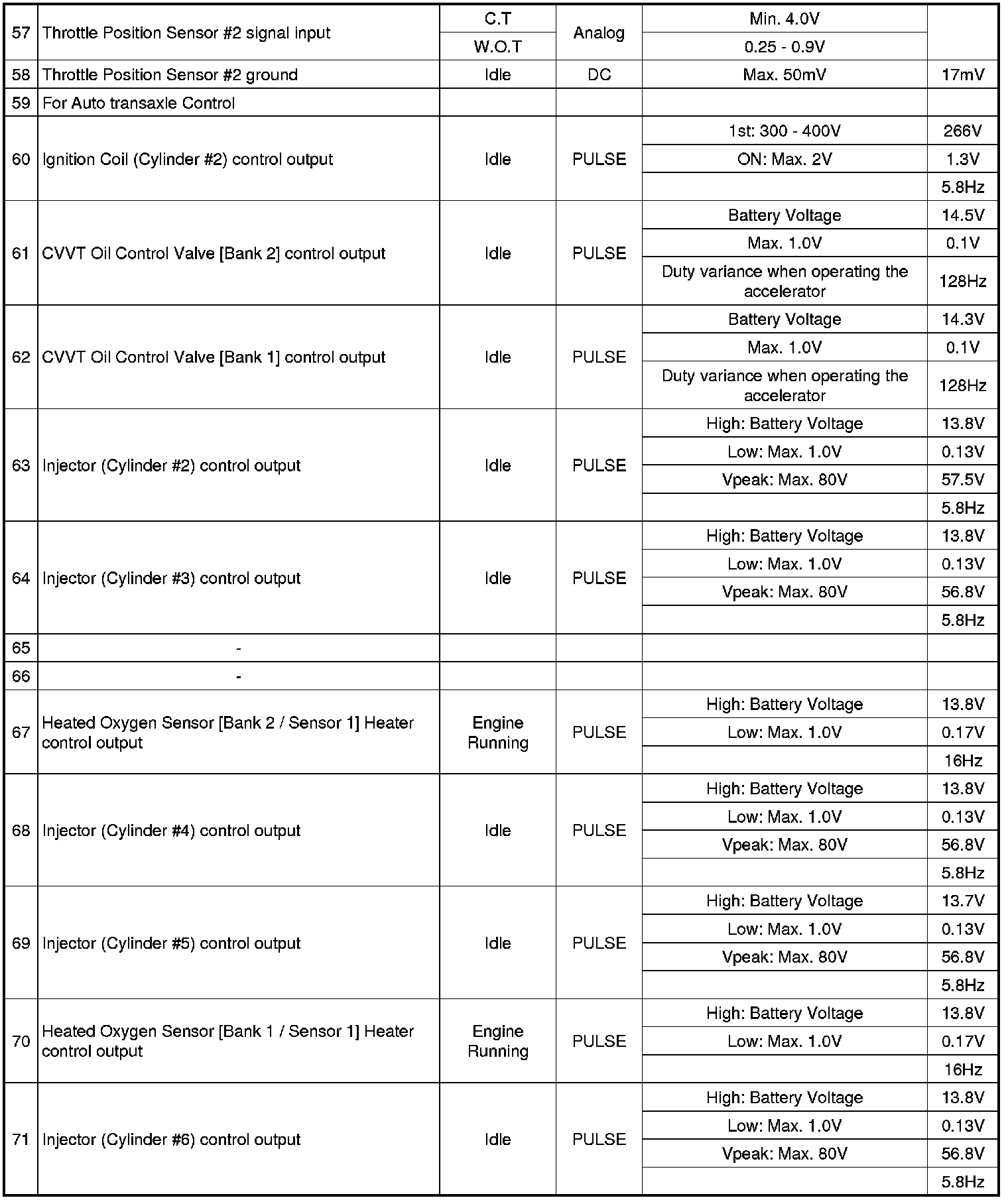

Connector [C01-2]

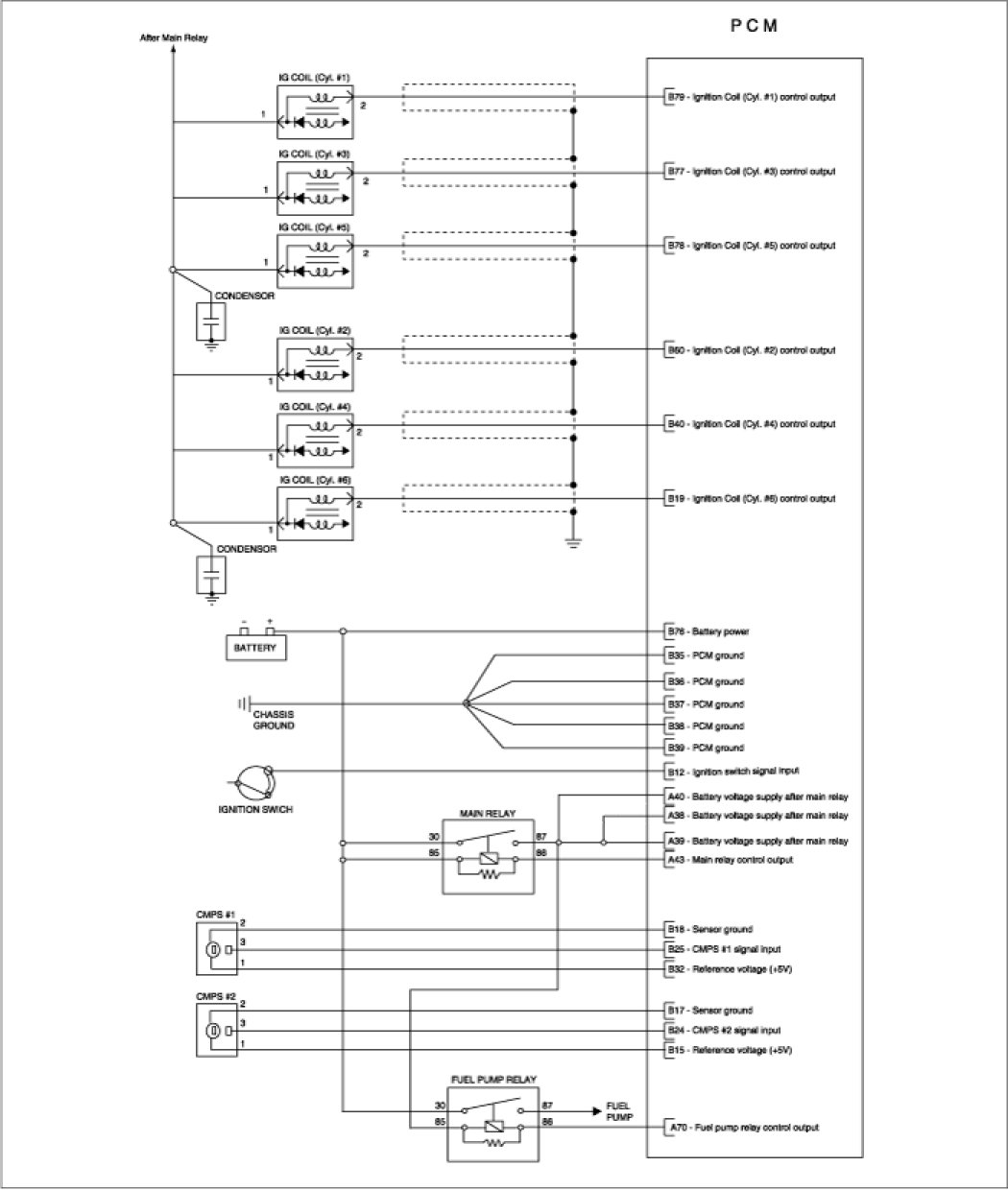

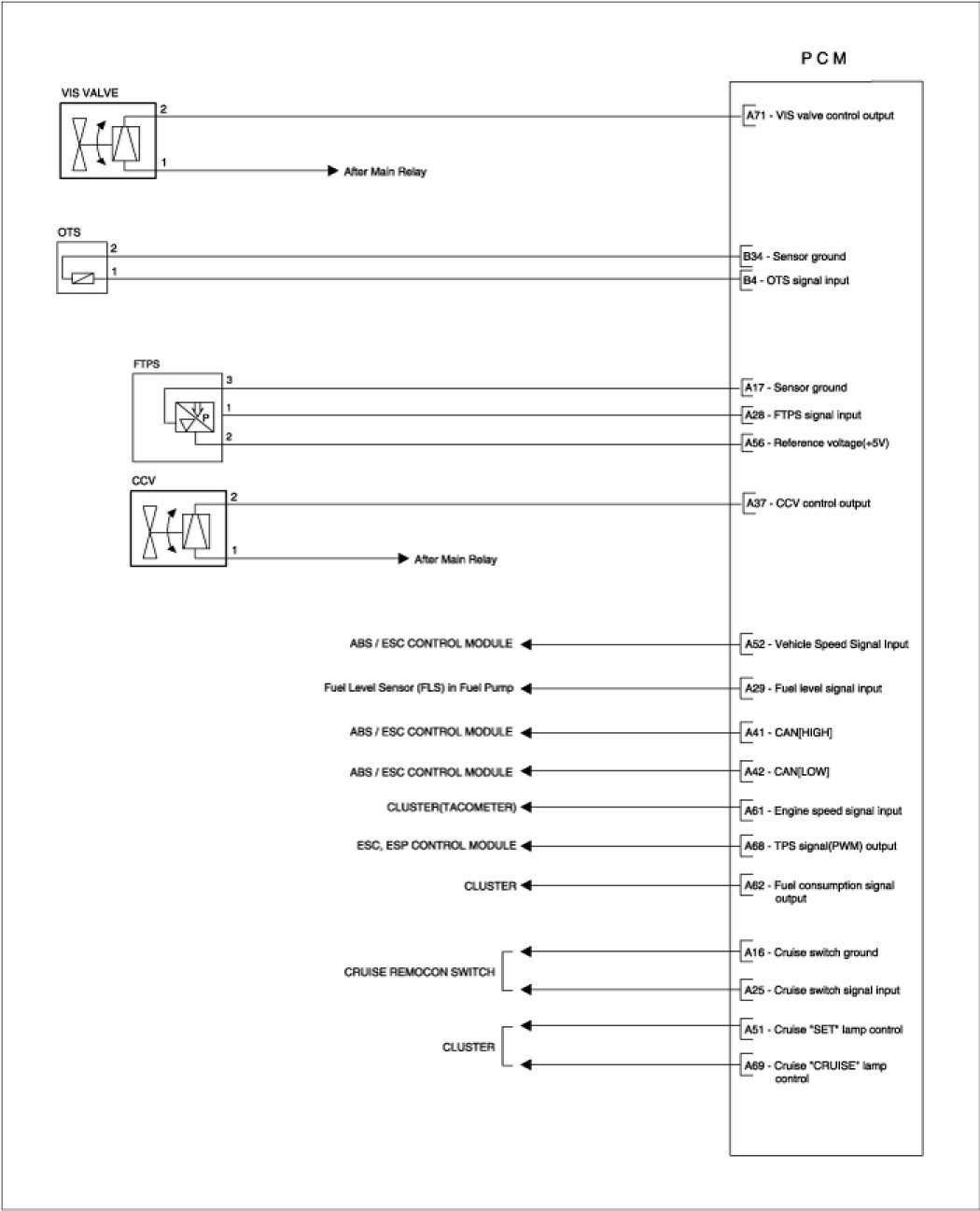

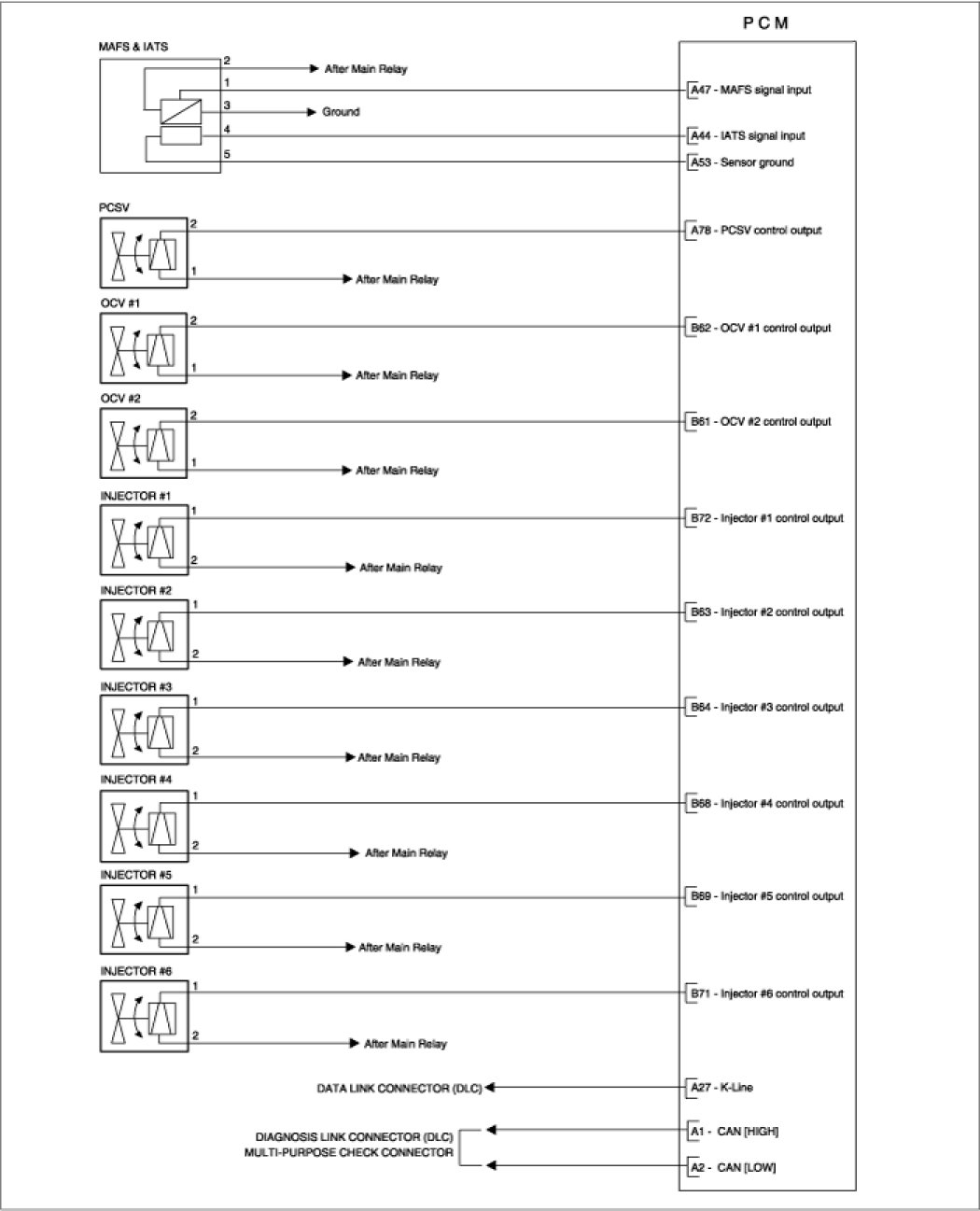

Circuit Diagram
