Repair Procedures

Removal

Front Wheel Speed Sensor

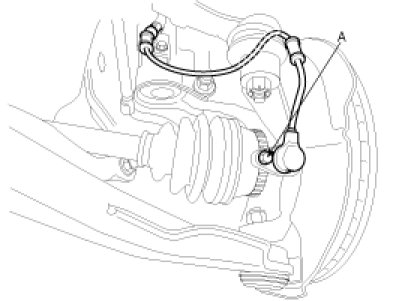

1. Remove the front wheel speed sensor mounting bolt (A).

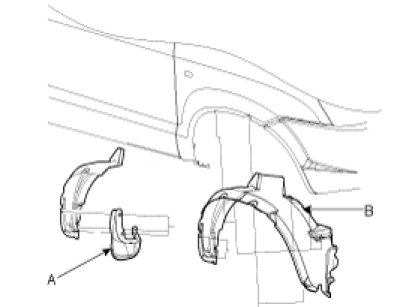

2. Remove the front wheel guard (B), after removing the mud ground (A).

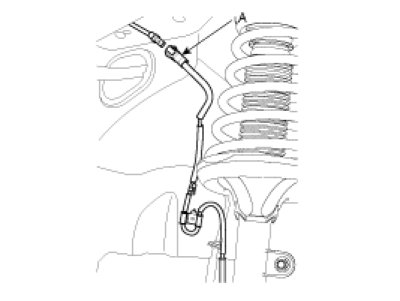

3. Remove the front wheel speed sensor after disconnecting the wheel speed sensor connector (A).
