Home >> Hyundai Truck >> 2009 >> Tucson AWD L4-2.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Emission Control Systems >> System Diagram

System Diagram

Schematic Diagram

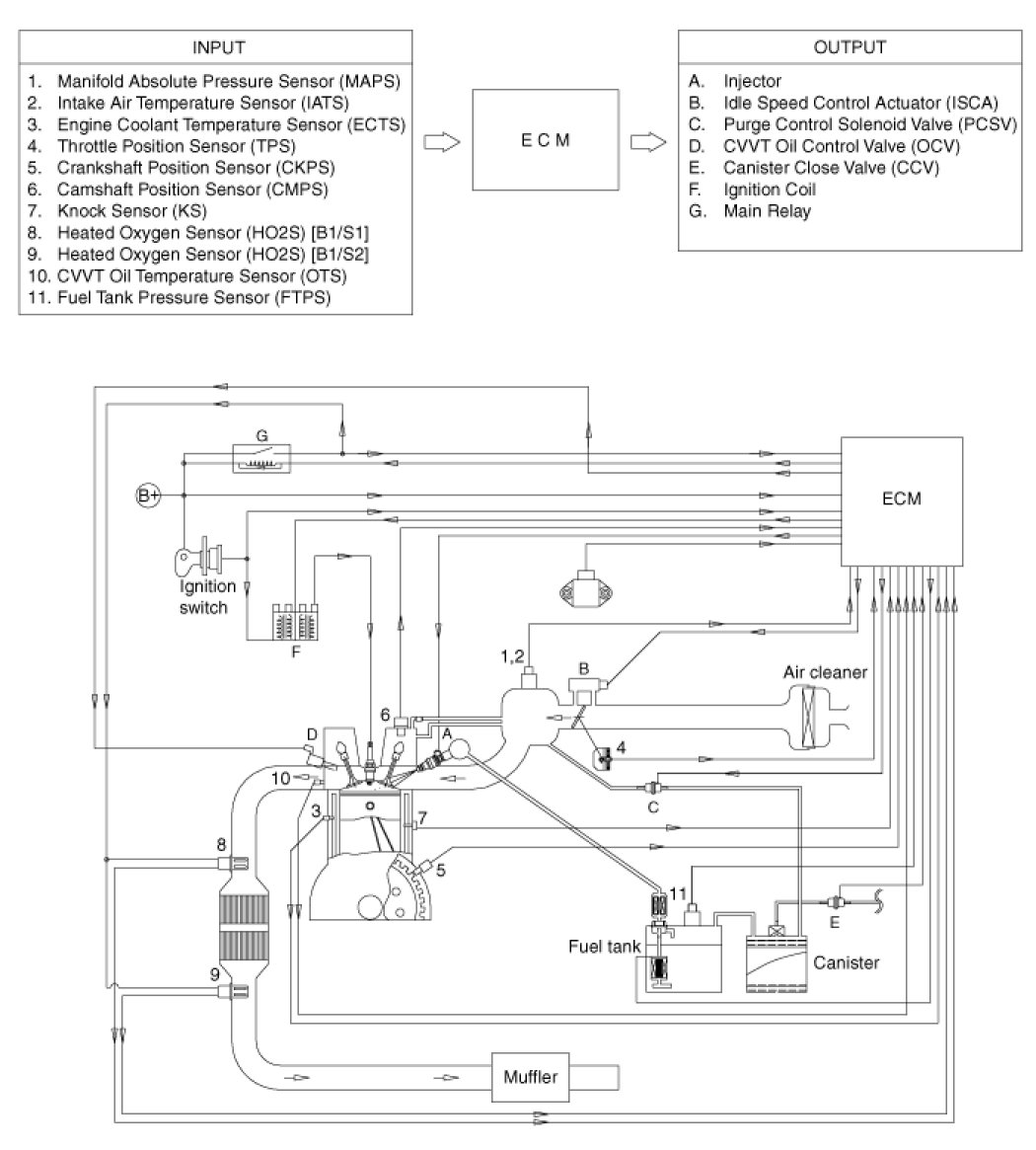

[2.0 DOHC]

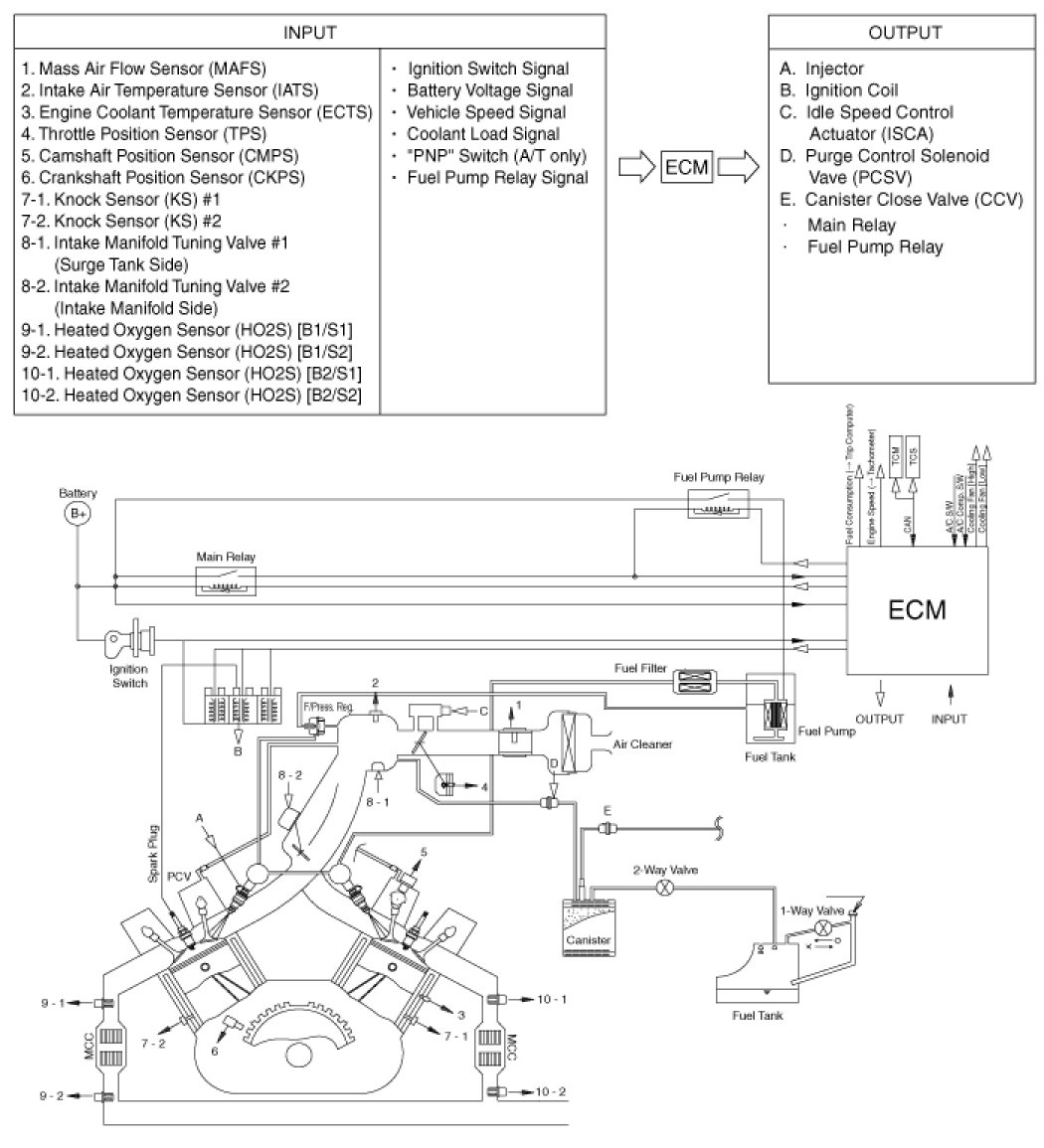

[2.7 V6]
