Idle Speed/Throttle Actuator - Electronic
>>
Specifications
>>
Fuel System - Specifications
Fuel System - Specifications
Actuators

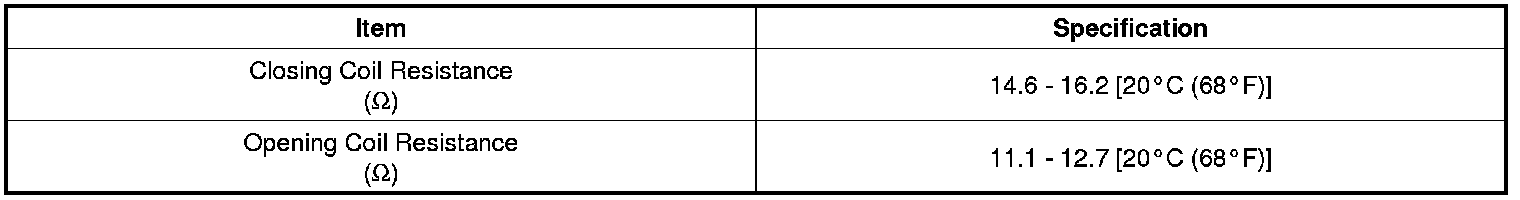

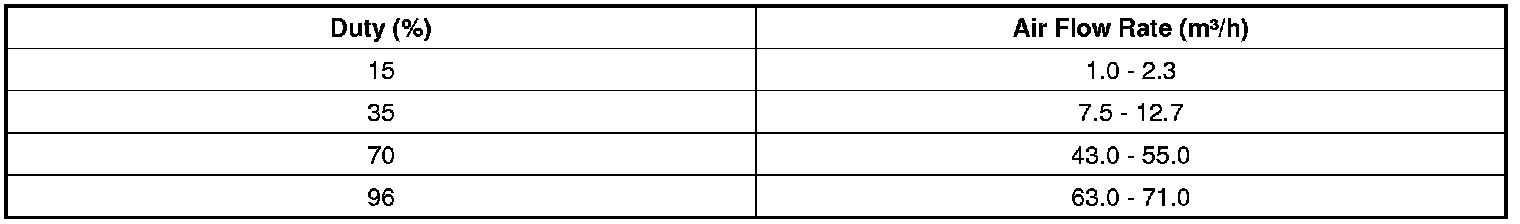

Idle Speed Control Actuator (ISCA)
- Type: Double coil type
- Specification
