Engine Control Module

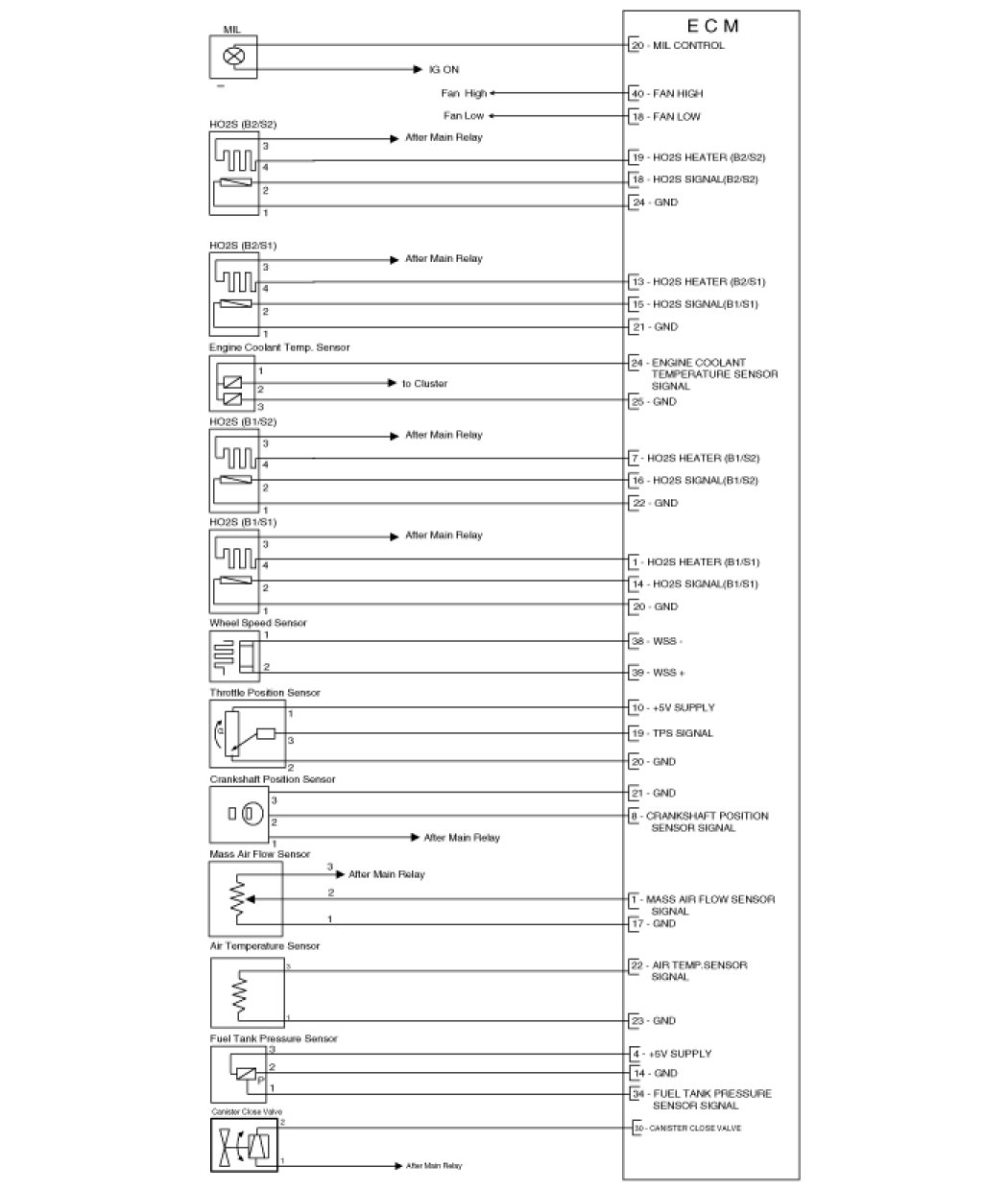

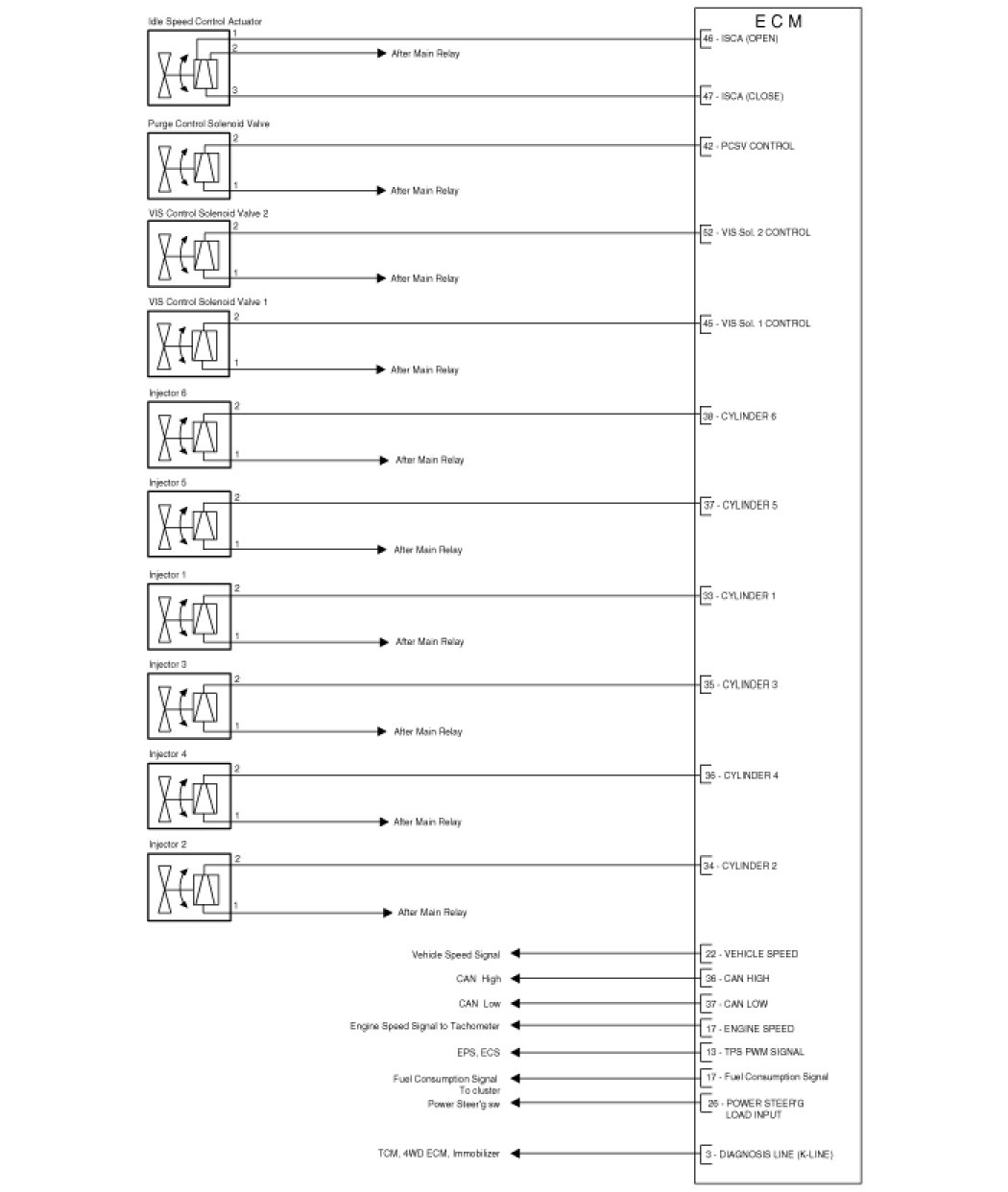

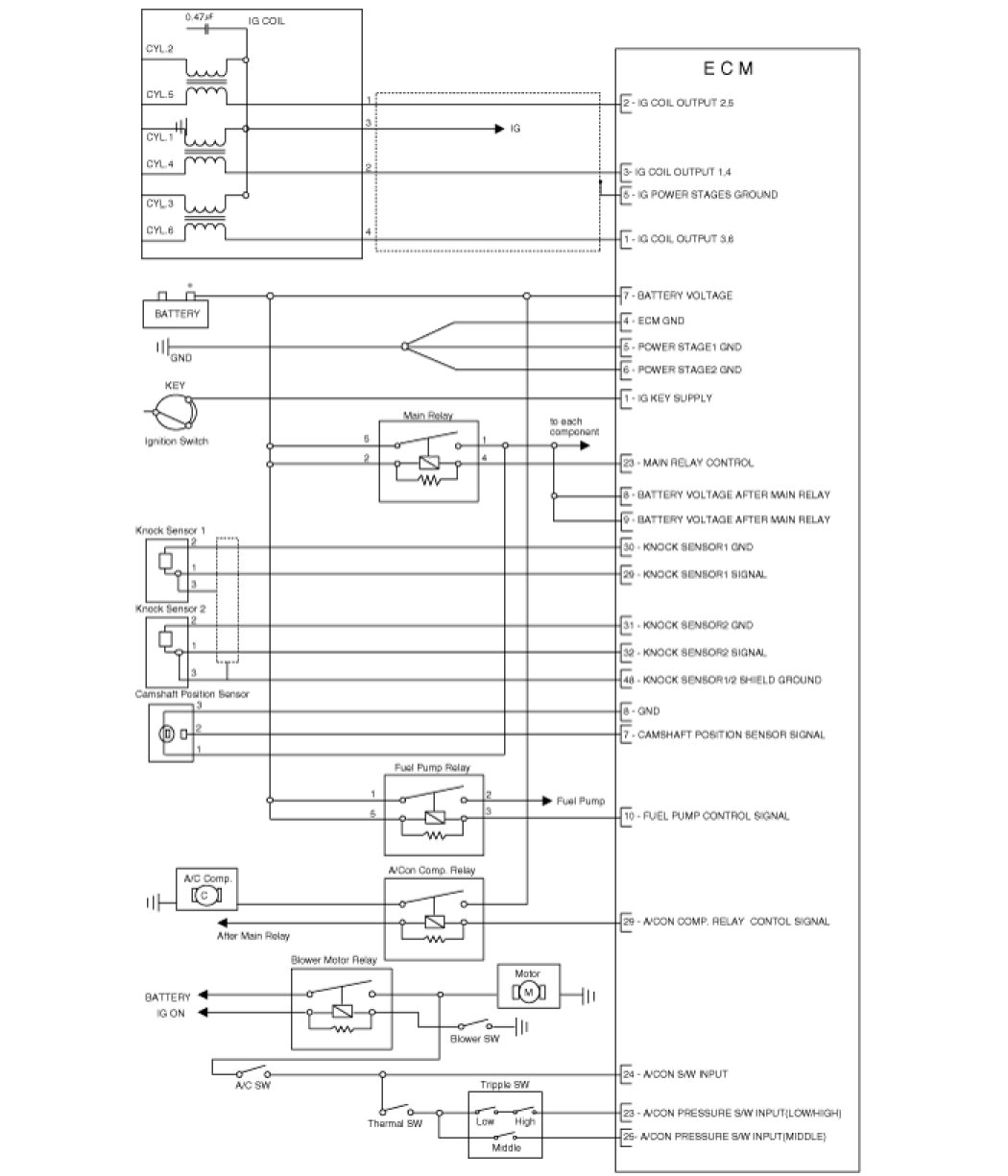

Circuit Diagram

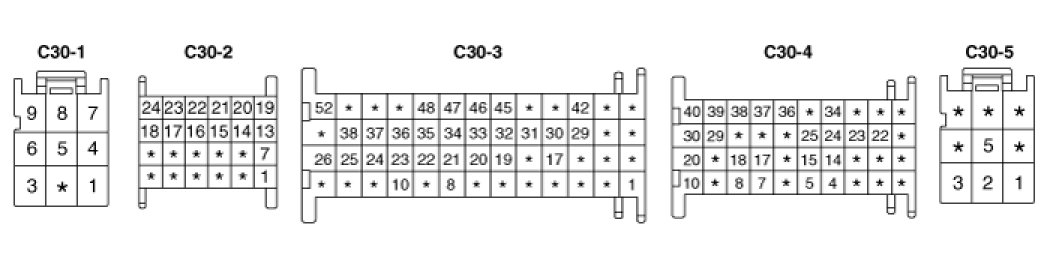

1. ECM Harness Connector

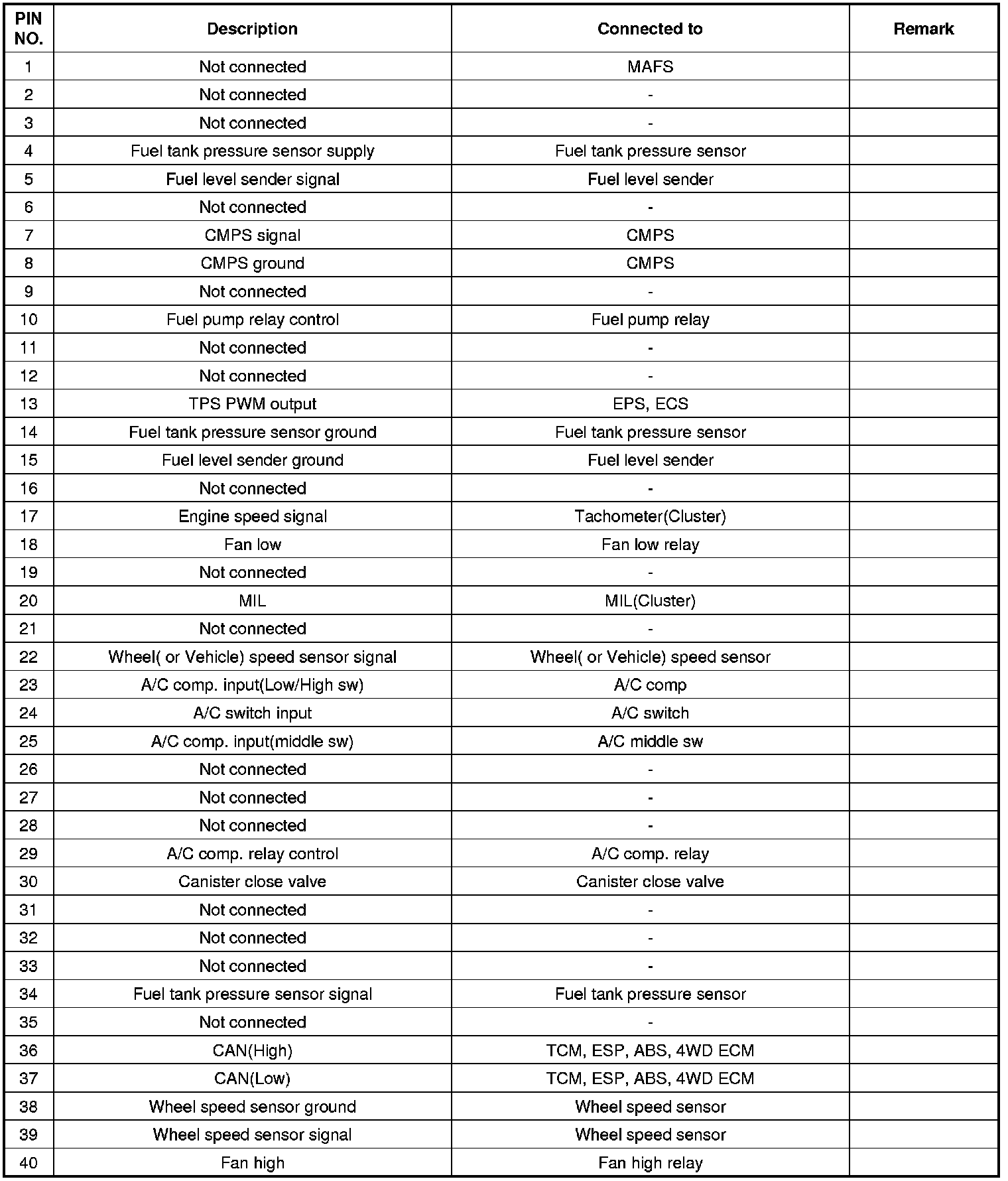

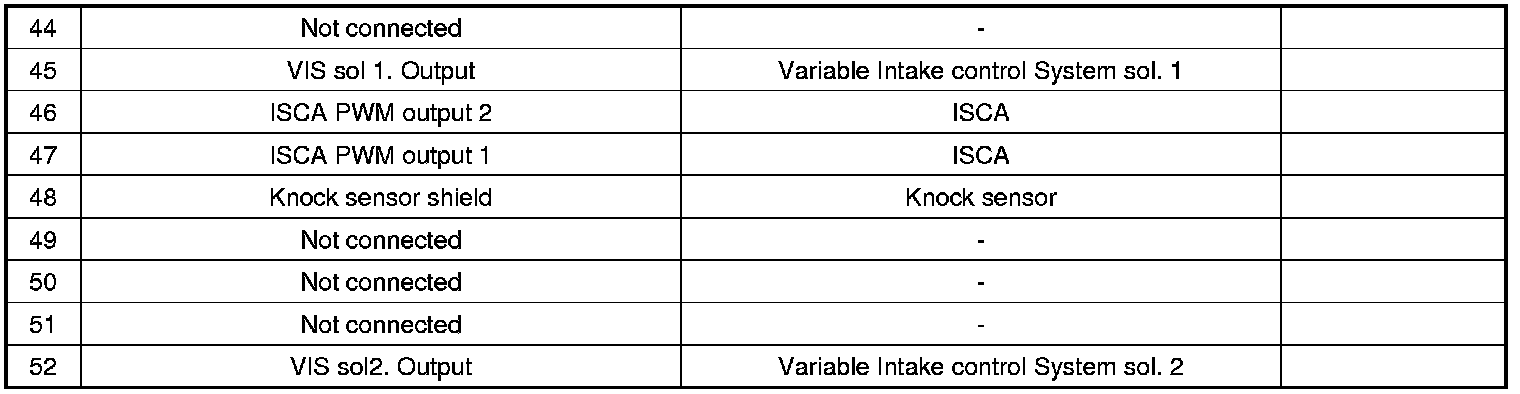

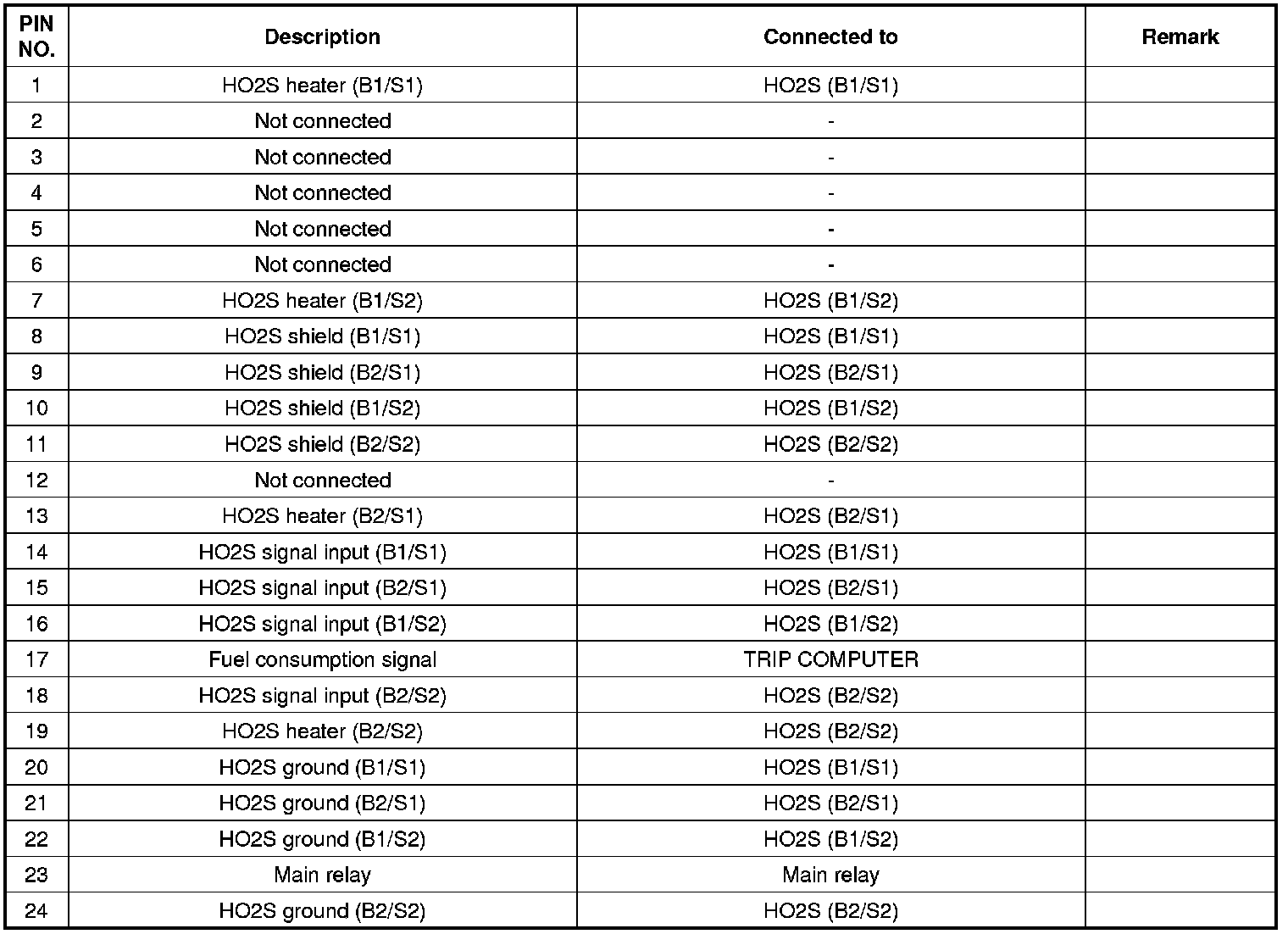

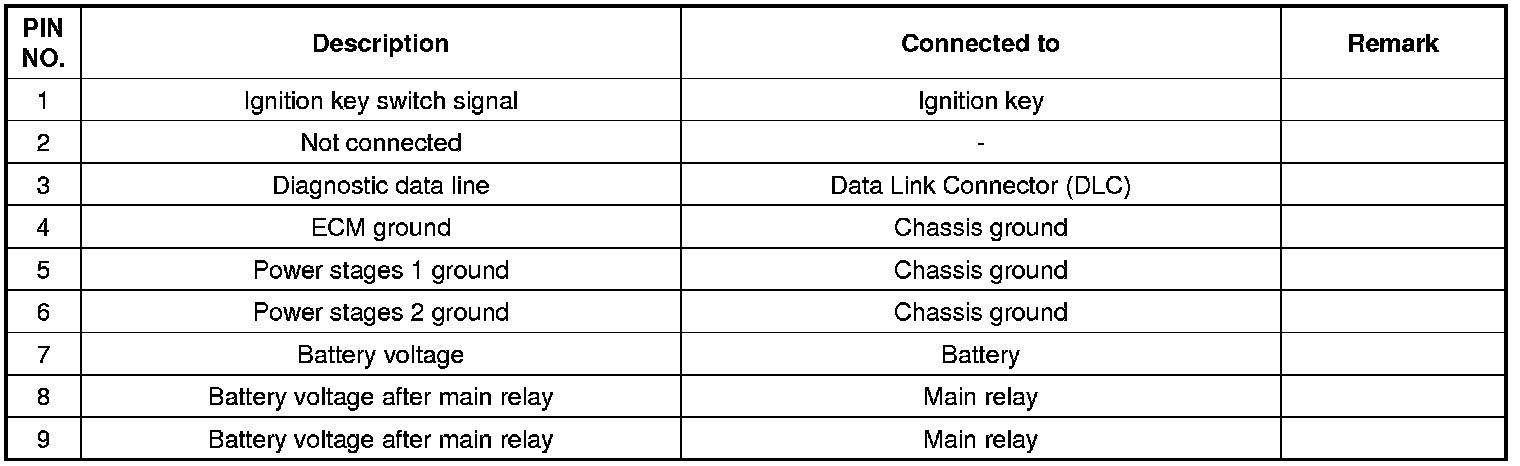

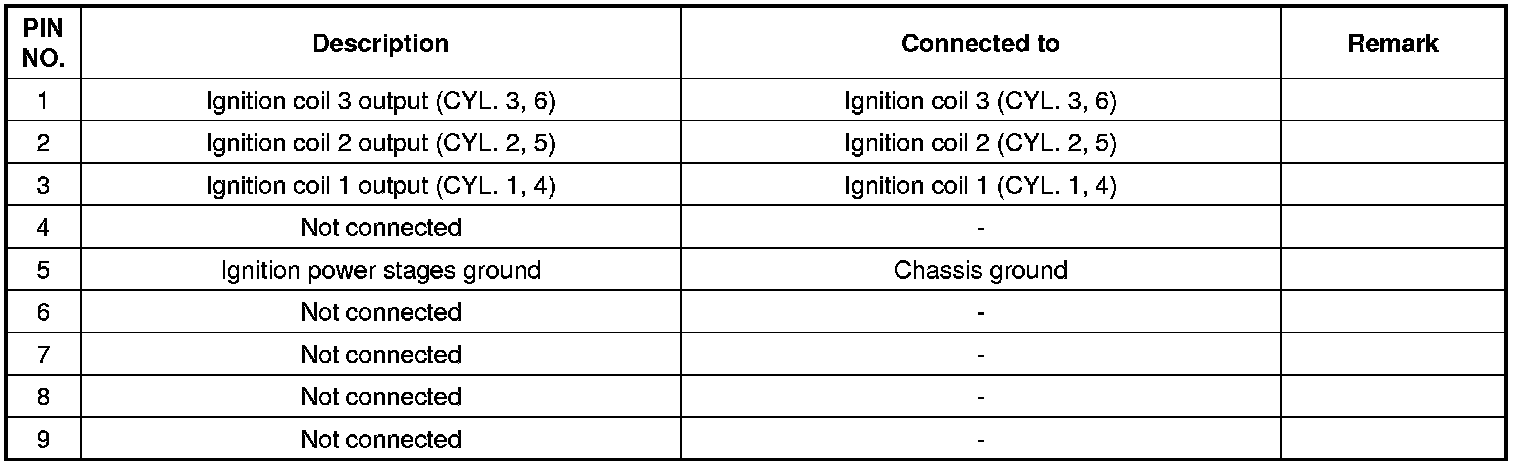

2. ECM Terminal Function
[Connector C30-1]





[Connector C30-2]





[Connector C30-3]









[Connector C30-4]





[Connector C30-5]

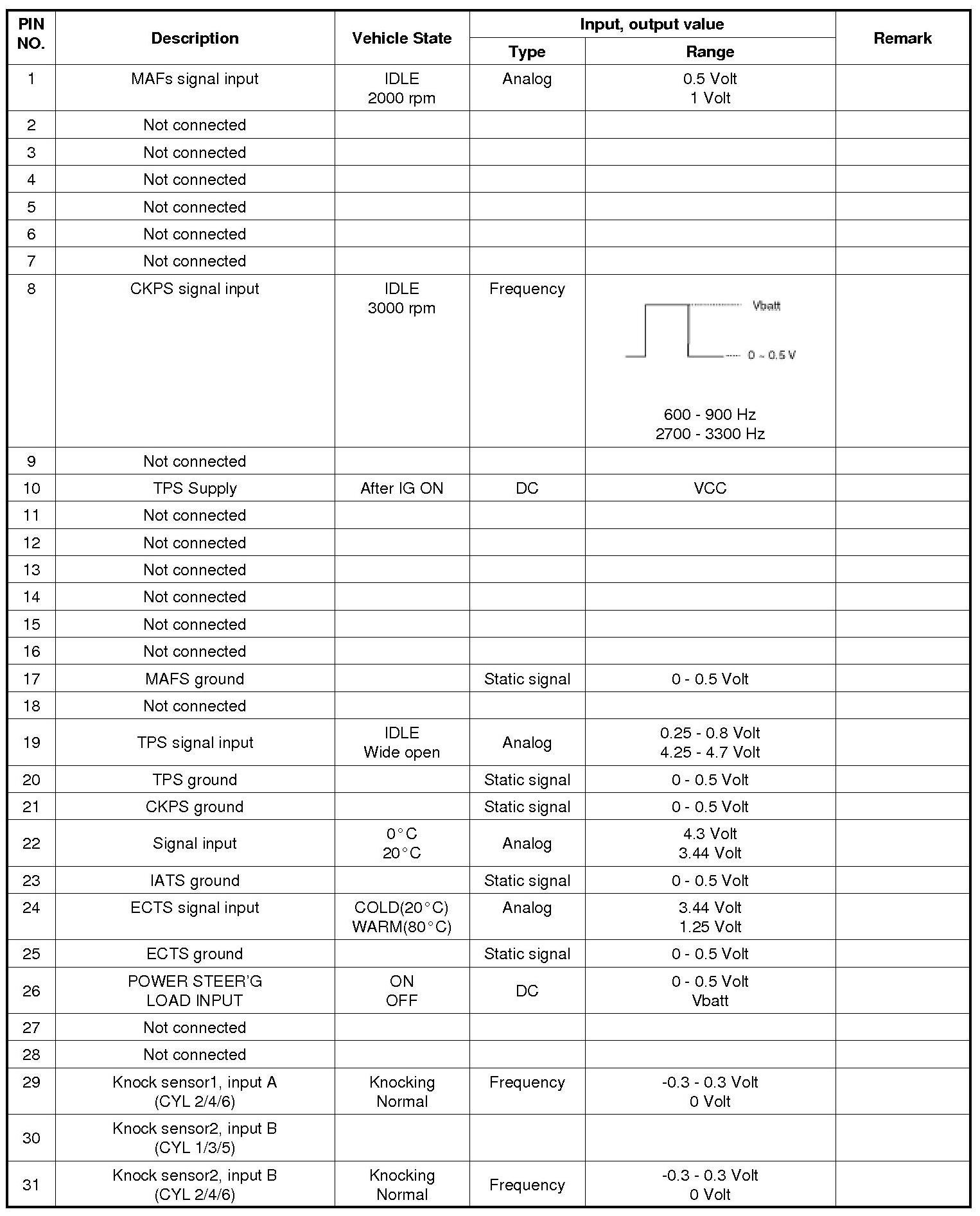

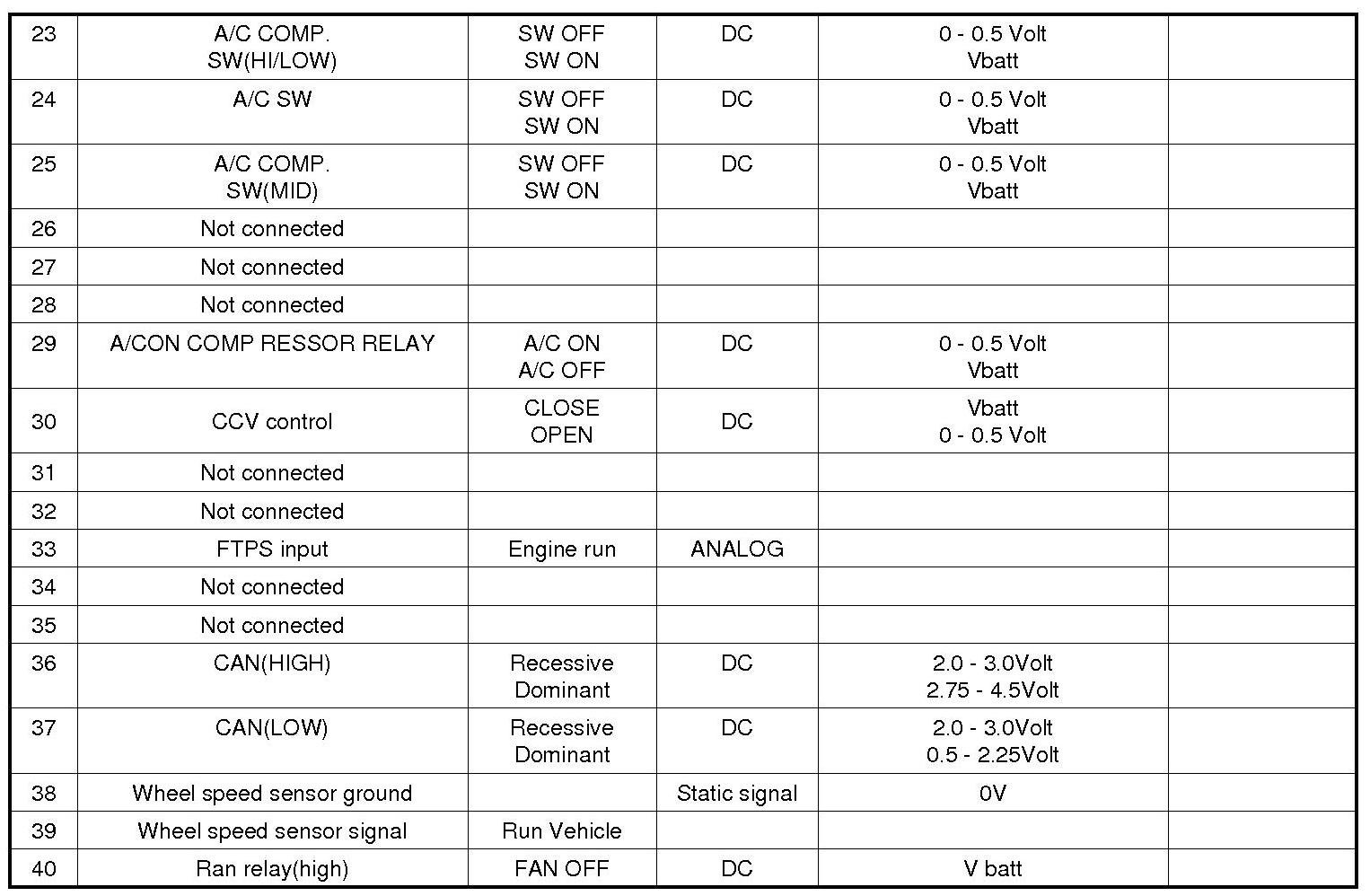

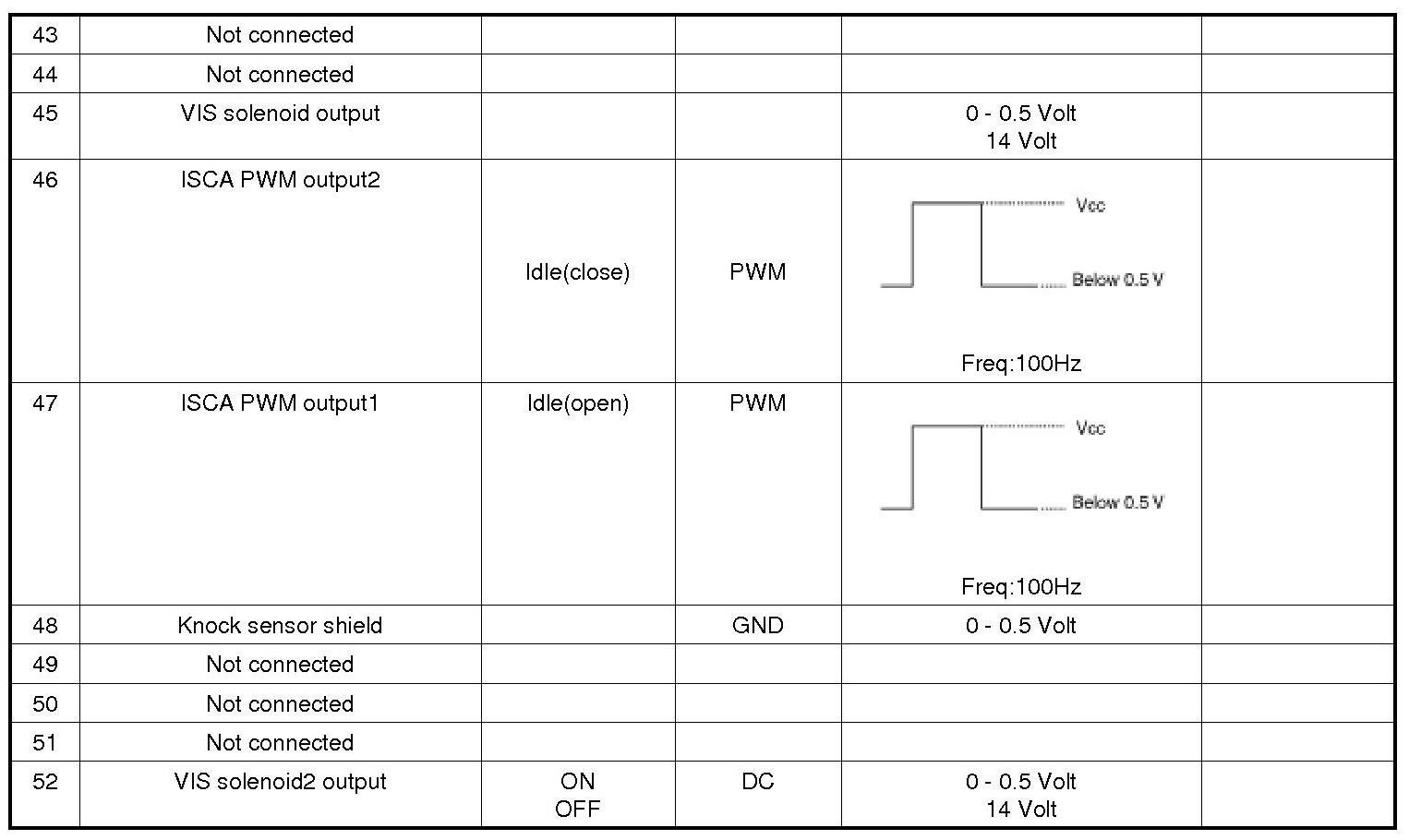

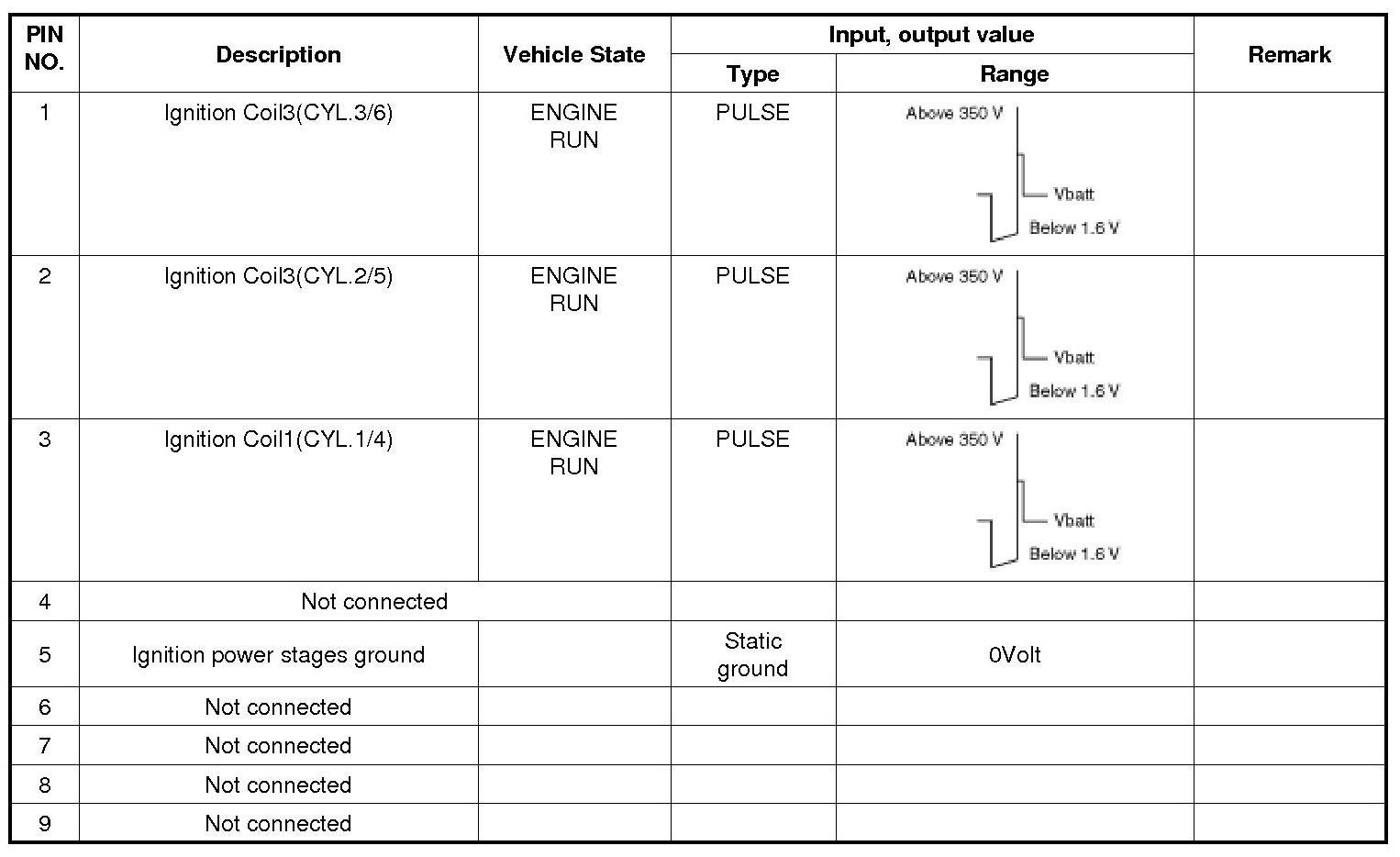

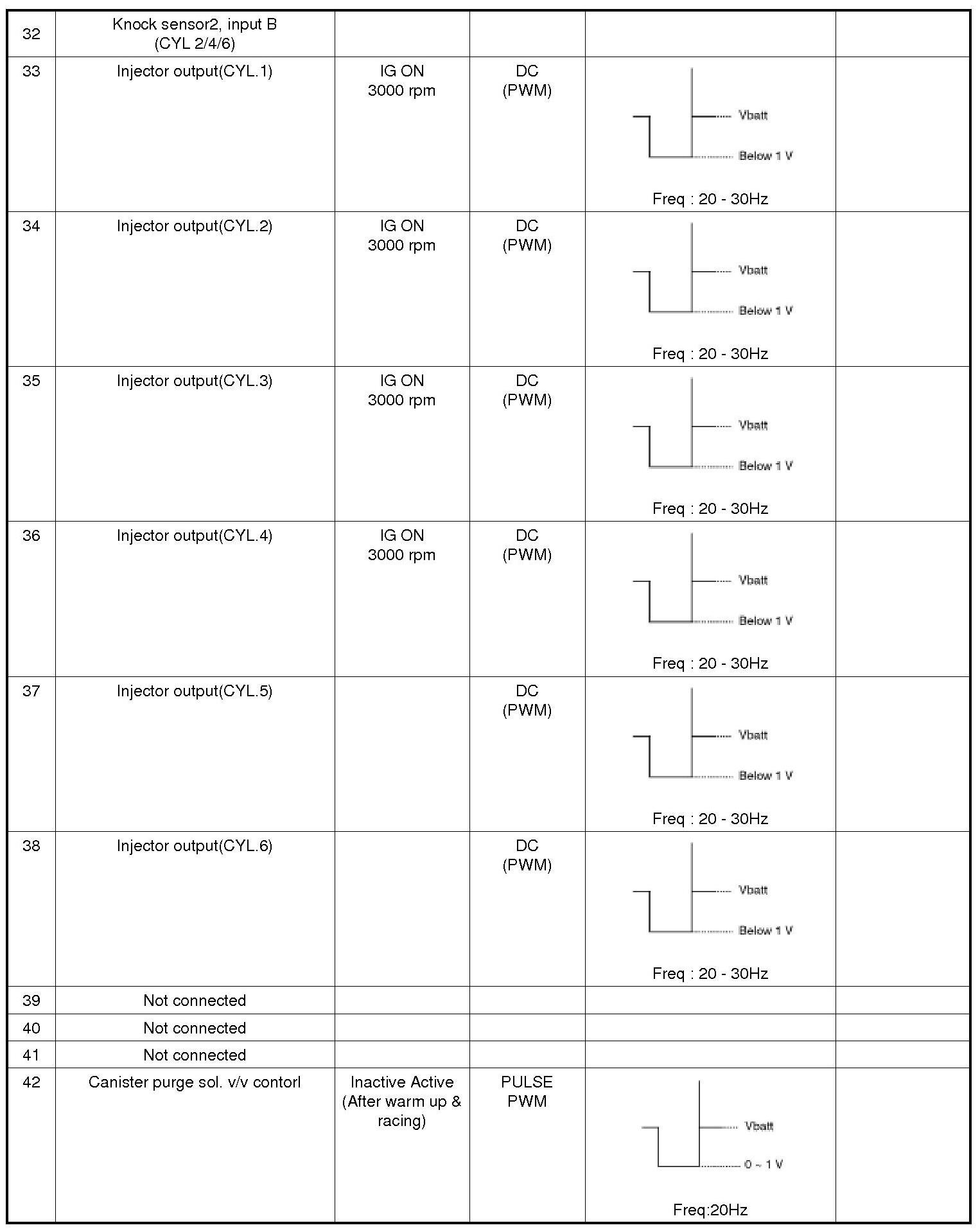

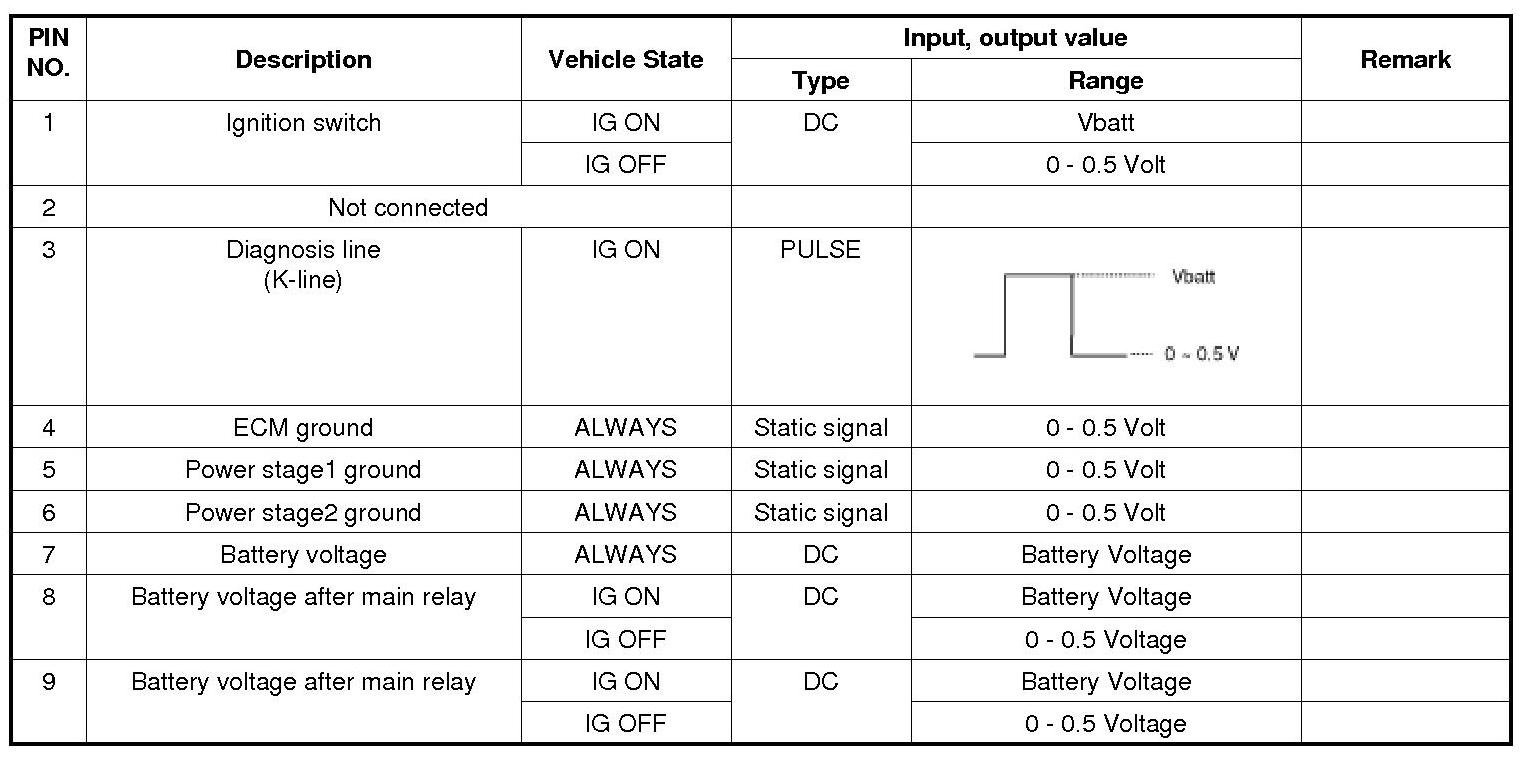

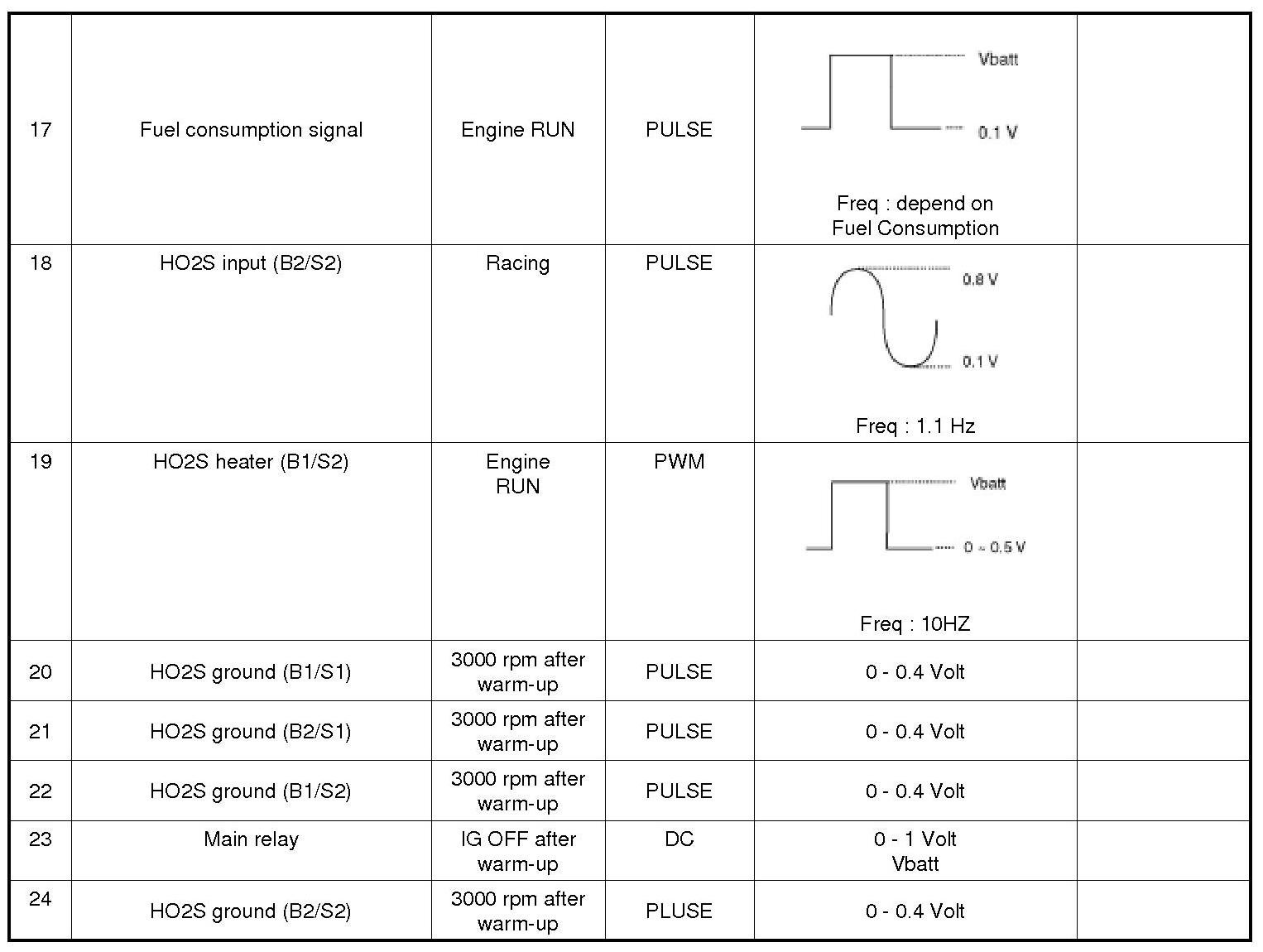

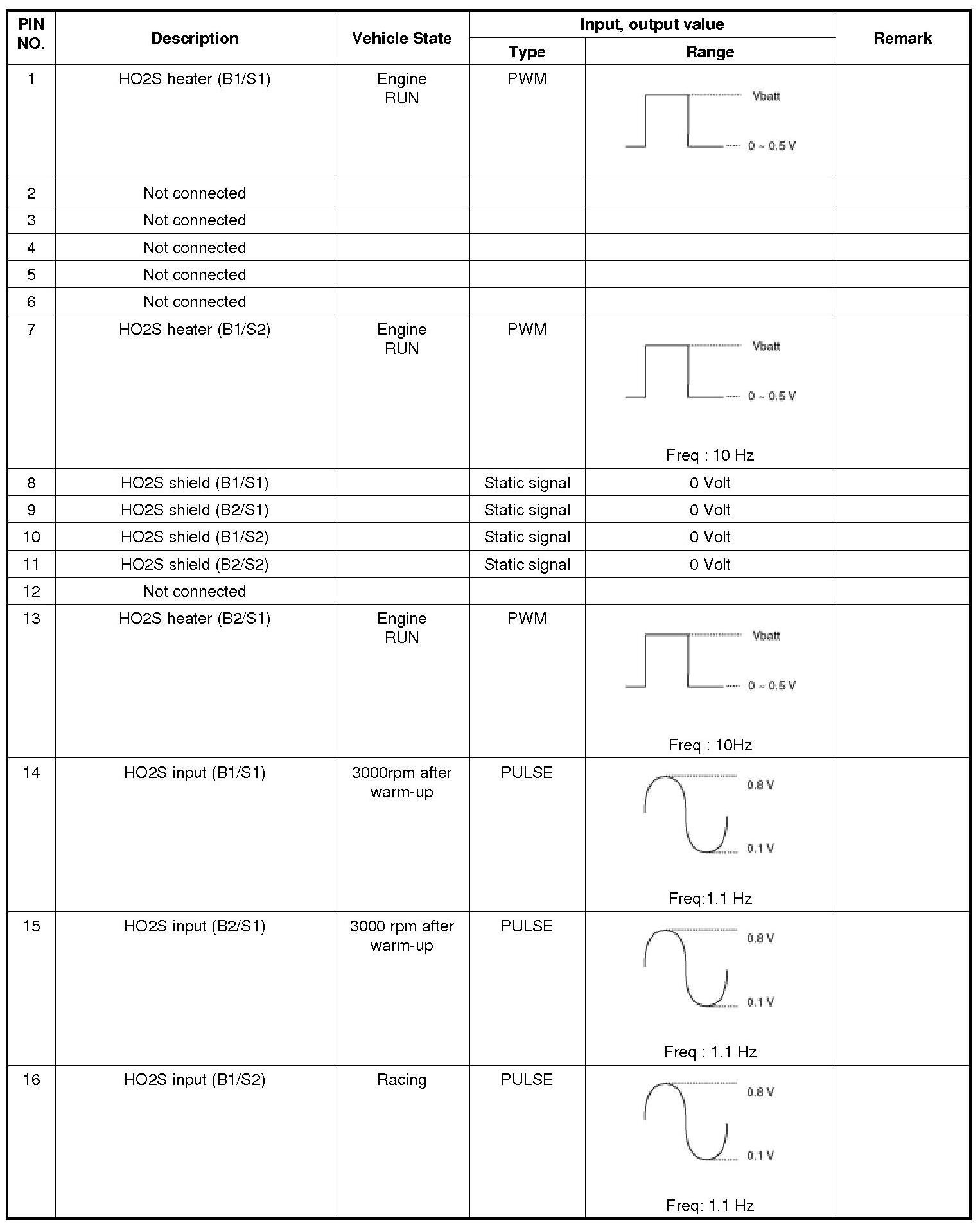

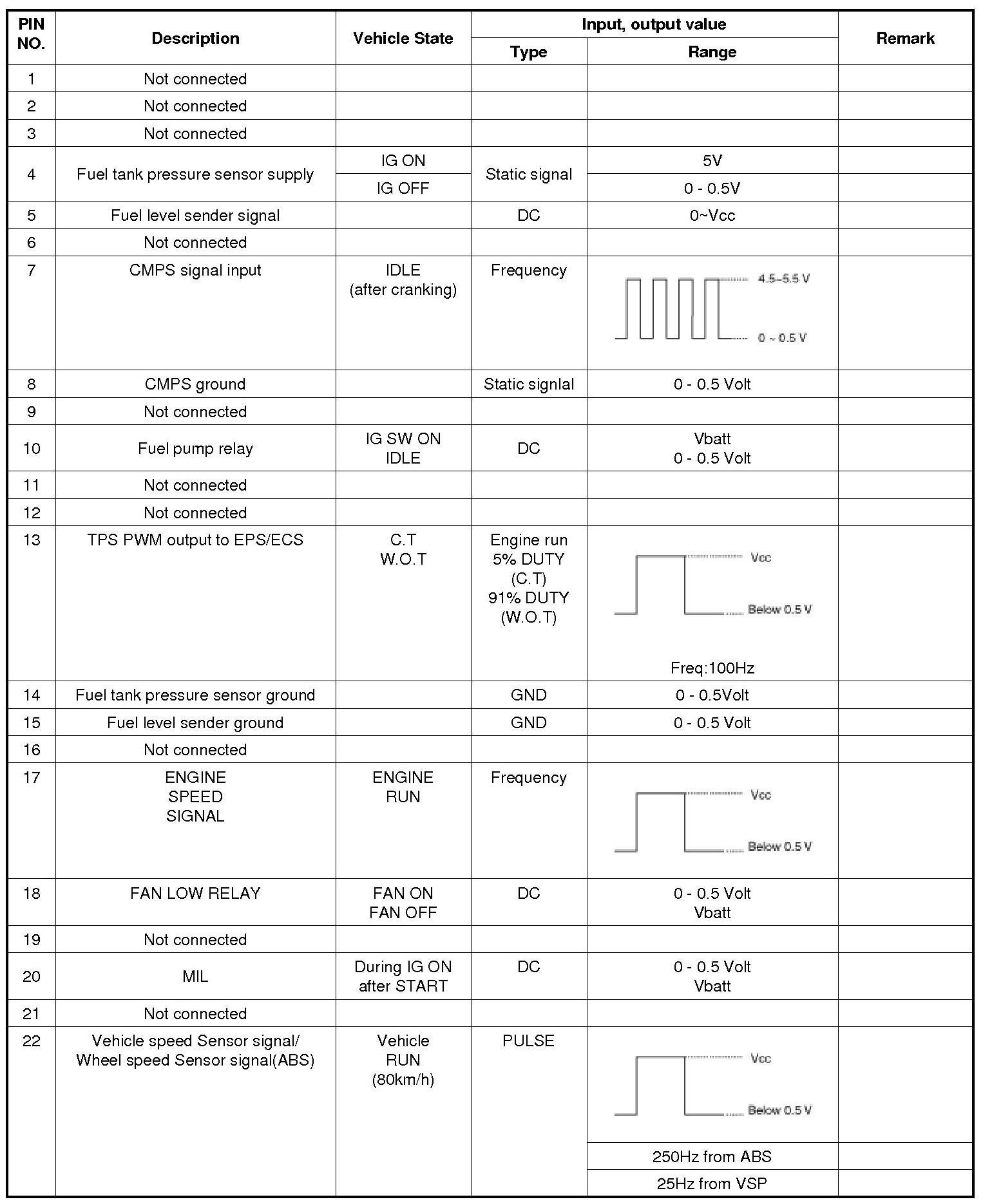

3. ECM Terminal Input/output Signal
[Connector C30-1]





[Connector C30-2]









[Connector C30-3]













[Connector C30-4]









[Connector C30-5]
