Connecting Rod Bearing

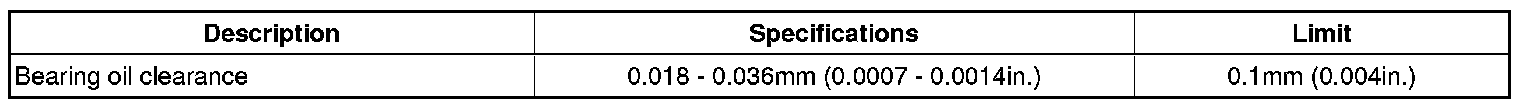

Connecting Rod Bearing Oil Clearance






Connecting Rod Bearing Cap

Reinstall the bearing half and cap, and torque the bolts.
Tightening torque 16 - 20 Nm (1.6 - 2.0 kgf.m, 12 - 15 lb-ft) + 90°
