Repair Procedures

Replacement

1. Disconnect the negative cable from the battery.
2. Remove the crash pad (see BD group - crash pad).
3. Disconnect the connectors from the blower relay the blower motor, the blower resistor (or power transistor) and the fresh and recirculation actuator.

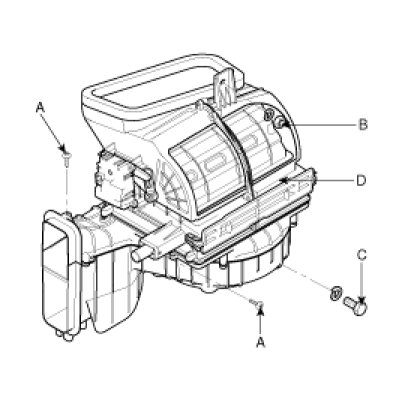

Remove the self-tapping screws(A), the mounting nut(B), the mounting bolt(C) and the blower unit(D).





NOTE:
Make sure that there is no air leaking out of the blower and duct joints.

4. Install in the reverse order of removal.
