General Information

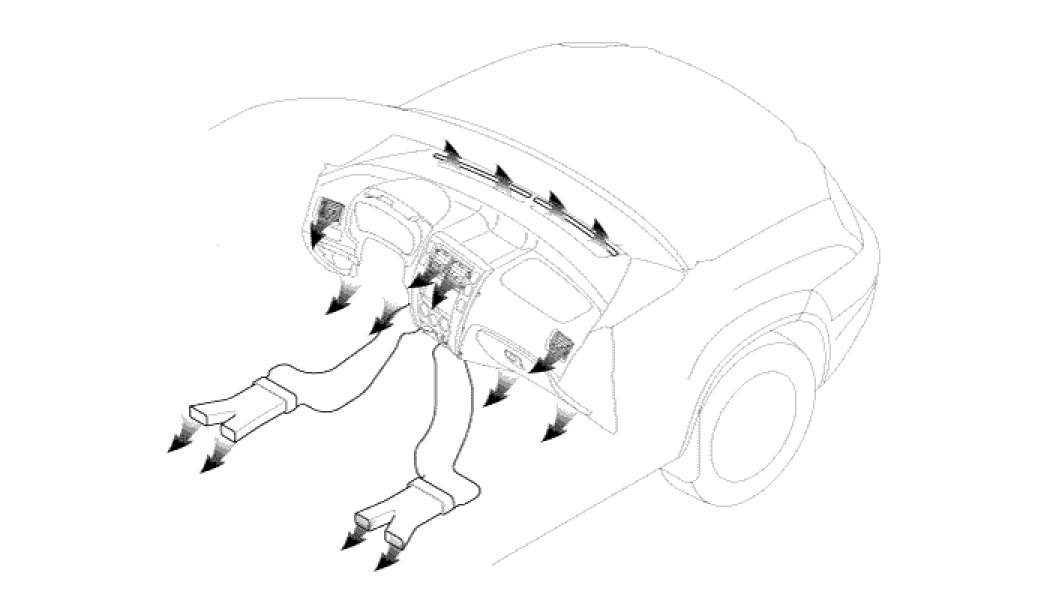

Air Flow Description

Manual Air Condition Control Panel

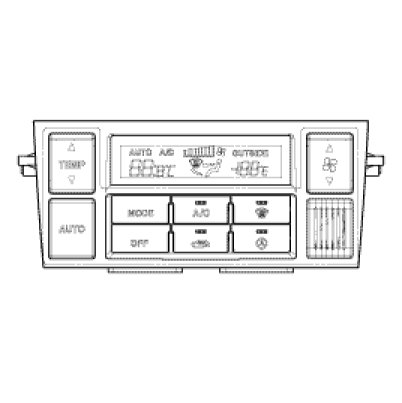

Automatic Air Condition Control Panel

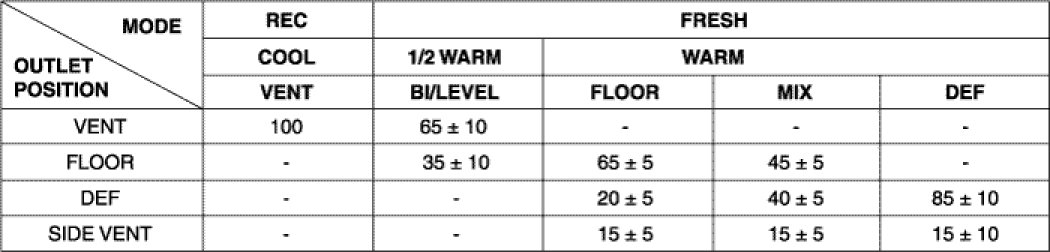

AIR FLOW DISTRIBUTION OF MODE (%)

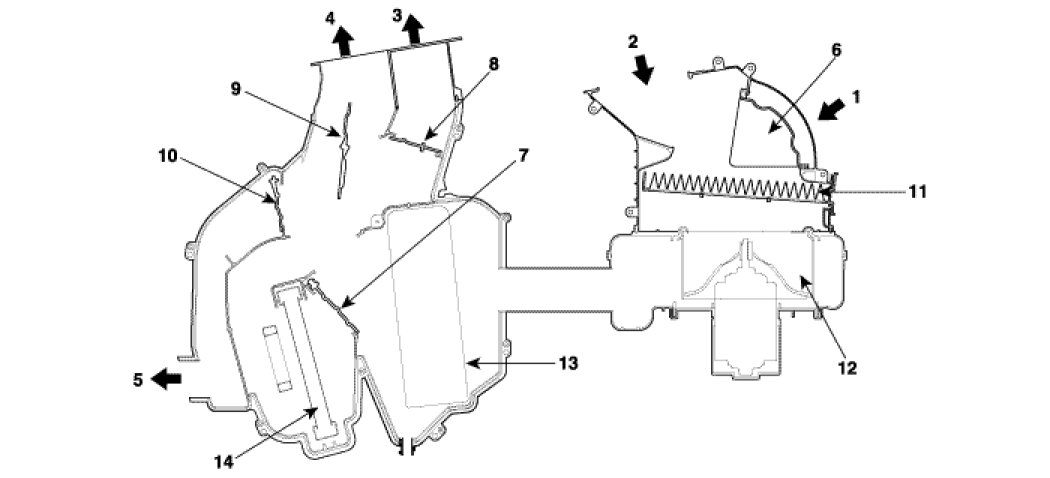

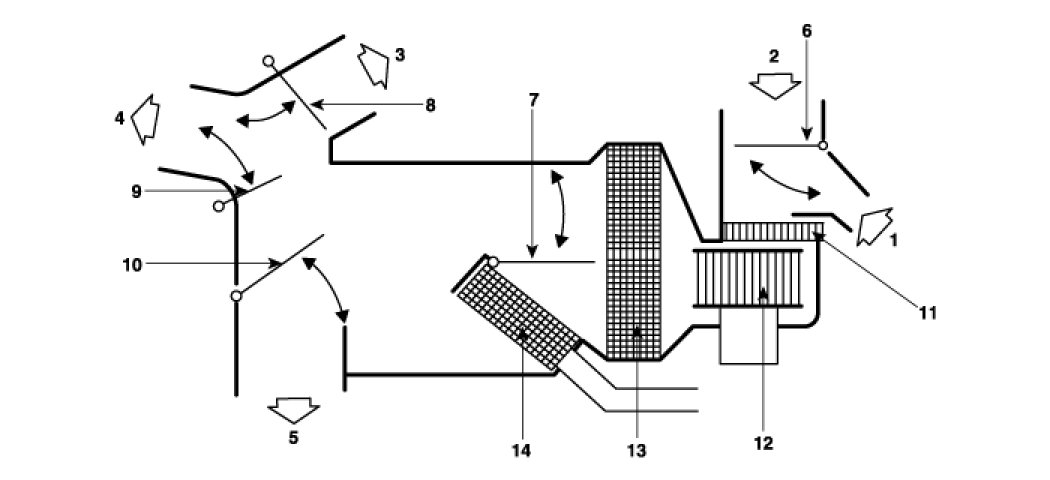

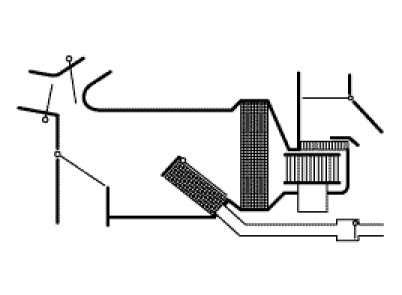

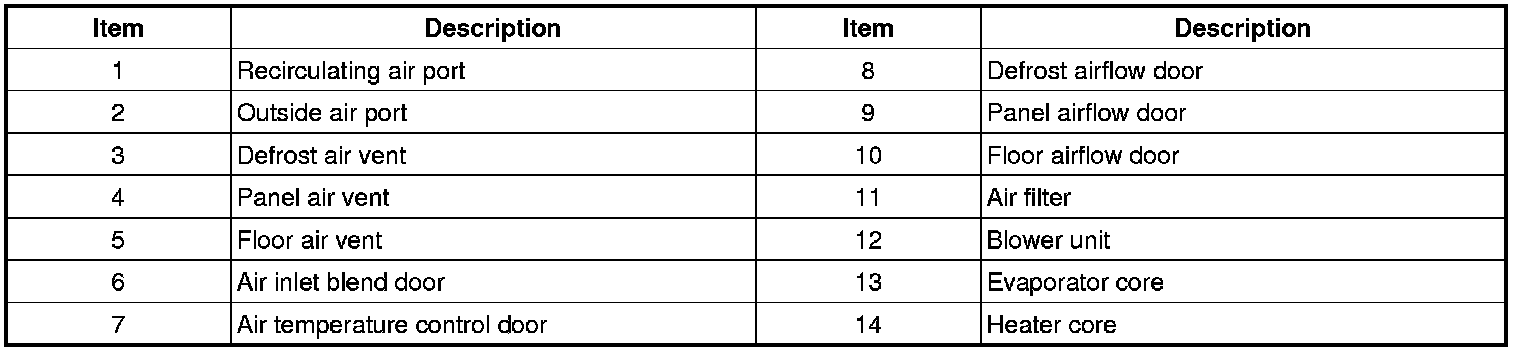

COMPONENT SCHEMATIC

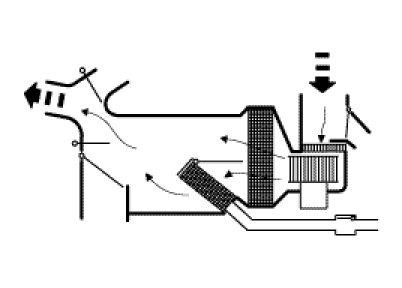

SYSTEM AIR FLOW DESCRIPTION

MAA/C

- Air inlet blend door : Recirc
- Air temperature control door : Enable to select
- Defrost airflow door : Close
- Panel airflow door : Open
- Floor airflow door : Close
- A/C compressor : ON
- Blower motor : ON

A/C

- Air inlet blend door : Enable to select
- Air temperature control door : Enable to select
- Defrost airflow door : Enable to select
- Panel airflow door : Enable to select
- Floor airflow door : Enable to select
- A/C compressor : ON
- Blower motor : ON

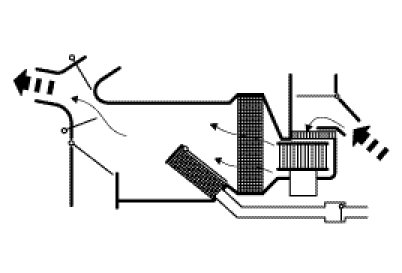

PANEL

- Air inlet blend door : Enable to select
- Air temperature control door : Enable to select
- Defrost airflow door : Close
- Panel airflow door : Open
- Floor airflow door : Close
- A/C compressor : Enable to select
- Blower motor : ON

OFF

- Air inlet blend door : Fresh
- Air temperature control door : Enable to select
- Defrost airflow door : Open
- Panel airflow door : Close
- Floor airflow door : Close
- A/C compressor : OFF
- Blower motor : OFF

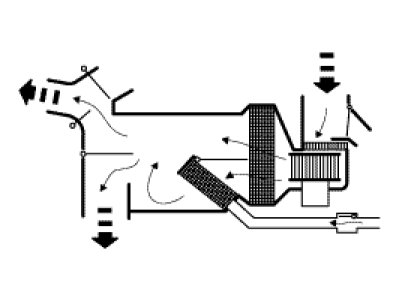

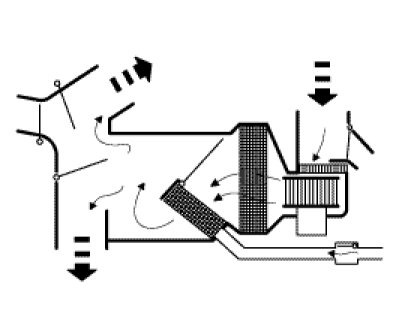

PANEL/FLOOR

- Air inlet blend door : Enable to select
- Air temperature control door : Enable to select
- Defrost airflow door : Close
- Panel airflow door : Open
- Floor airflow door : Open
- A/C compressor : Enable to select
- Blower motor : ON

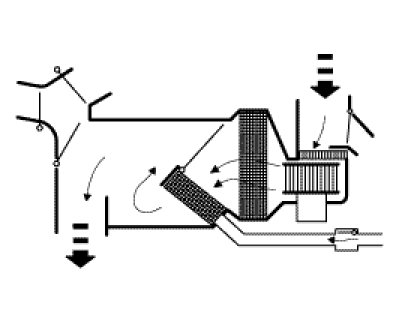

FLOOR

- Air inlet blend door : Fresh
- Air temperature control door : Enable to select
- Defrost airflow door : Open
- Panel airflow door : Close (Except for side panel air flow)
- Floor airflow door : Open
- A/C compressor : Enable to select
- Blower motor : ON

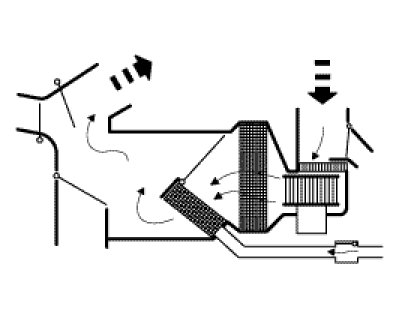

FLOOR/DEFROST
