Trunk Lamp: Service and Repair

Removal

1. Disconnect the negative (-) battery terminal.

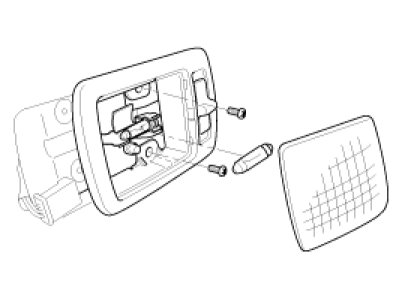

2. Remove the trunk room lamp lens with a flat-tip screwdriver and replace the bolt.
3. Remove the trunk room lamp assembly after removing 2 screws, then disconnect the 3P connector.




4. Installation is the reverse of removal.
