Tailgate Window Glass: Service and Repair

Tailgate Glass Replacement

NOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Take care not to scratch the surface the tailgate glass.
- Wear gloves to protect hands from injury.

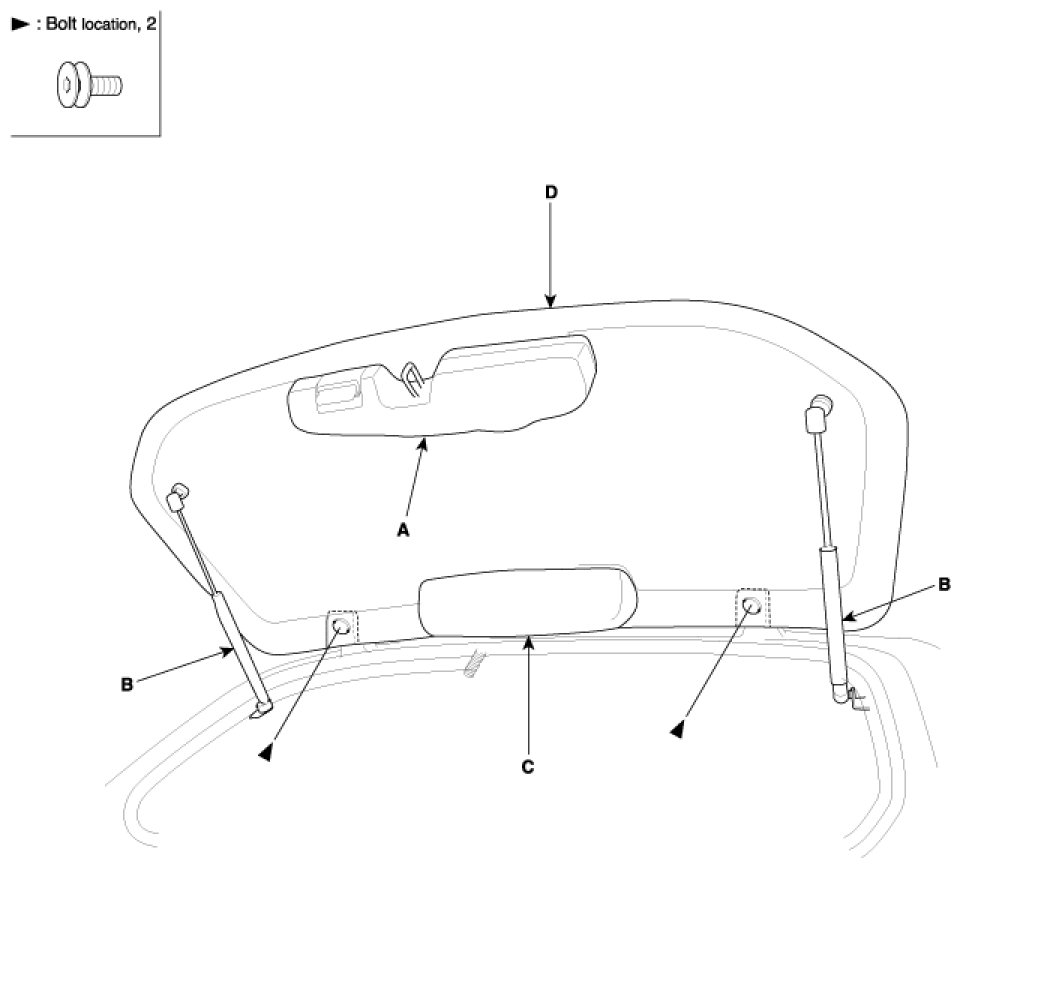

1. Remove the following items.
A. Rear wiper assembly [A ].
B. Tailgate lifter [B ].
C. High stop lamp [C ].
2. After loosening the mounting bolts remove the tailgate glass (D).
