Acceleration/Deceleration Sensor: Testing and Inspection

Inspection

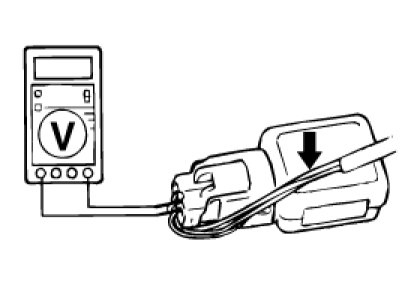

1. Connect a tester to both 2 and 3 terminals of the G sensor.
2. Measure the output voltage when IGN is on.

Specification :2.5V

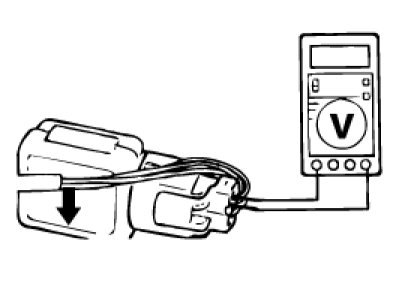

3. Measure the output voltage between 2 and 3 terminals, posing the arrow mark on the G sensor downward.

Specification :3.5V





4. Replace the G sensor if the output voltage is not on the specification.
