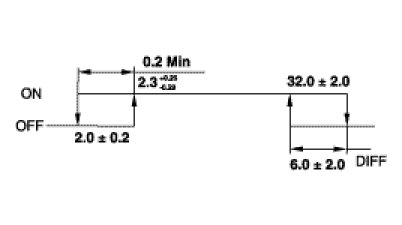

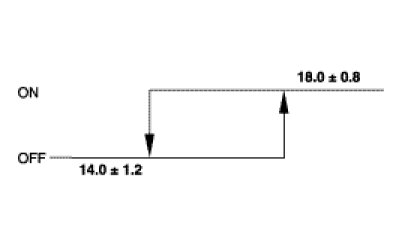

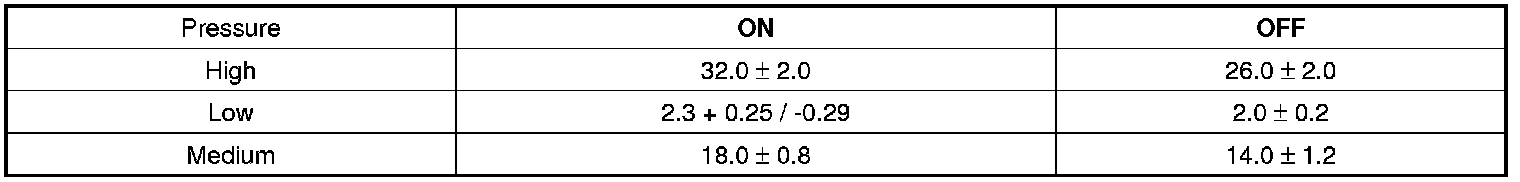

Refrigerant Pressure Sensor / Switch: Description and Operation

Descrip4tion

- Rating load : Inductive load DC 12V, 10 - 250mA
- Applicable voltage range : DC 8V ~ DC 16V
- Applicable temperature range : -30°C ~ 120°C
- Applicable refrigerant : R-134a
- Insulation resistance : Min. 100MOhms at DC 500V
