Piston

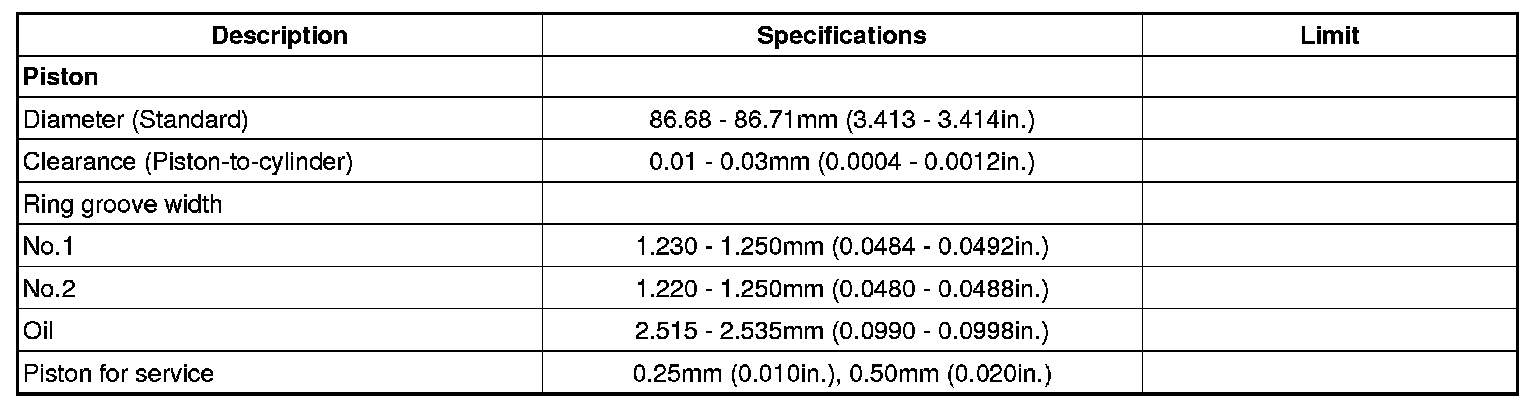

Piston Dimensions and Clearances






Piston ring side clearance
No. 1 0.04 - 0.08 mm (0.0016 - 0.0031 in.)
No. 2 0.03 - 0.07 mm (0.0012 - 0.0028 in.)

Limit
No. 1 0.1 mm (0.004 in.)
No. 2 0.1 mm (0.004 in.)

Piston ring end gap

Standard
No.1 0.20 - 0.35 mm (0.0079 - 0.0138 in.)
No.2 0.37 - 0.52 mm (0.0146 - 0.0205 in.)

Limit
Oil ring 0.2 - 0.7 mm (0.0079 - 0.0276 in.)
