Hyundai Truck
>>
2009
>>
Tucson FWD V6-2.7L
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Engine
>>
Cylinder Head Assembly
>>
Exhaust Manifold
Exhaust Manifold
Exhaust Manifold

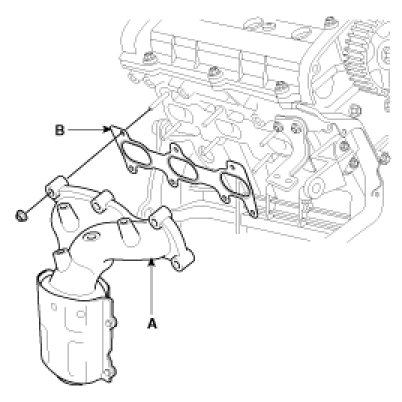

Install the
exhaust manifold
(A) and gasket(B)
Tightening torque
30 - 35 Nm (3.0 - 3.5 kgf.m, 22 - 26 lb-ft)
