Specifications
>>
Mechanical Specifications
>>
Engine
>>
System Specifications
>>
Intake Manifold
Intake Manifold
Intake Manifold

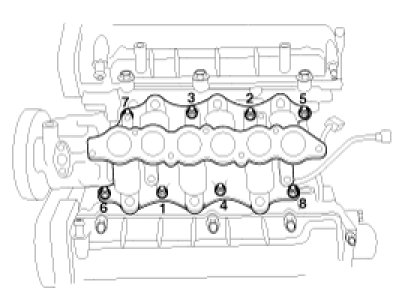

Install the
intake manifold
and gasket
Tightening torque
19 - 21 Nm (1.9 - 2.1 kgf.m, 14 - 15 lb-ft)
