Rear Door

Power Window Motor Replacement
1. Remove the rear door trim .

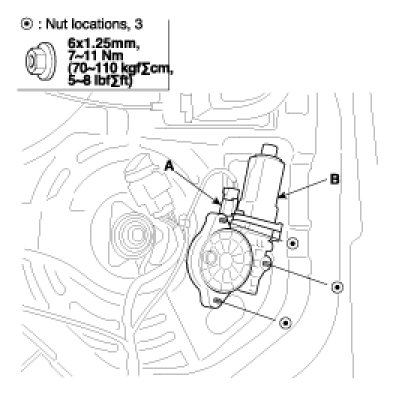

2. Disconnect the power window motor connector (A).
3. After loosening the mounting nut, remove the power window motor (B).




4. Installation is the reverse of removal.

NOTE:
- Make sure that there is no clearance between the glass and glass run channel when the glass is closed.
- Adjust the position of the glass as necessary.
