Engine Control Module: Diagrams





ECM Terminal And Input/Output signal

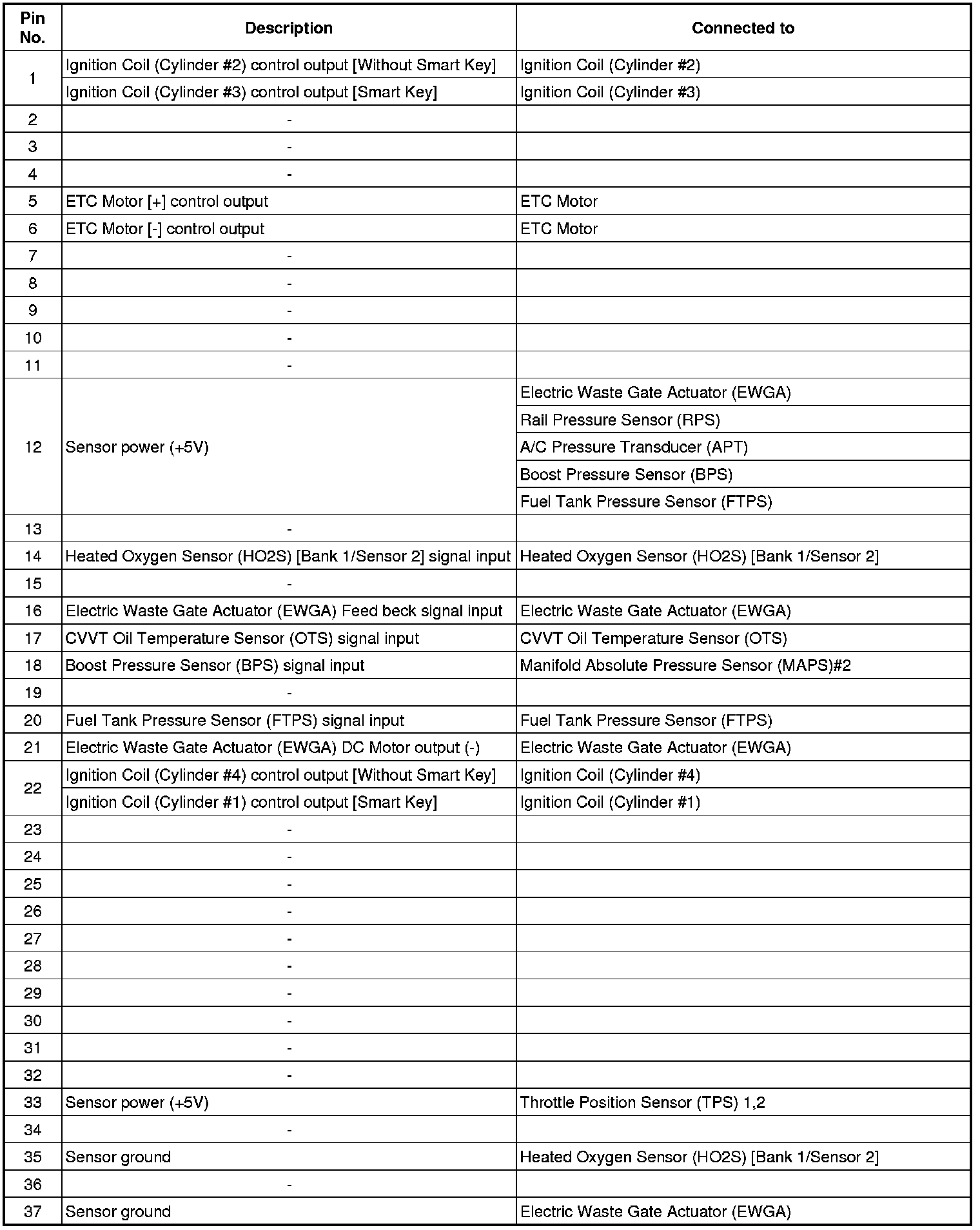

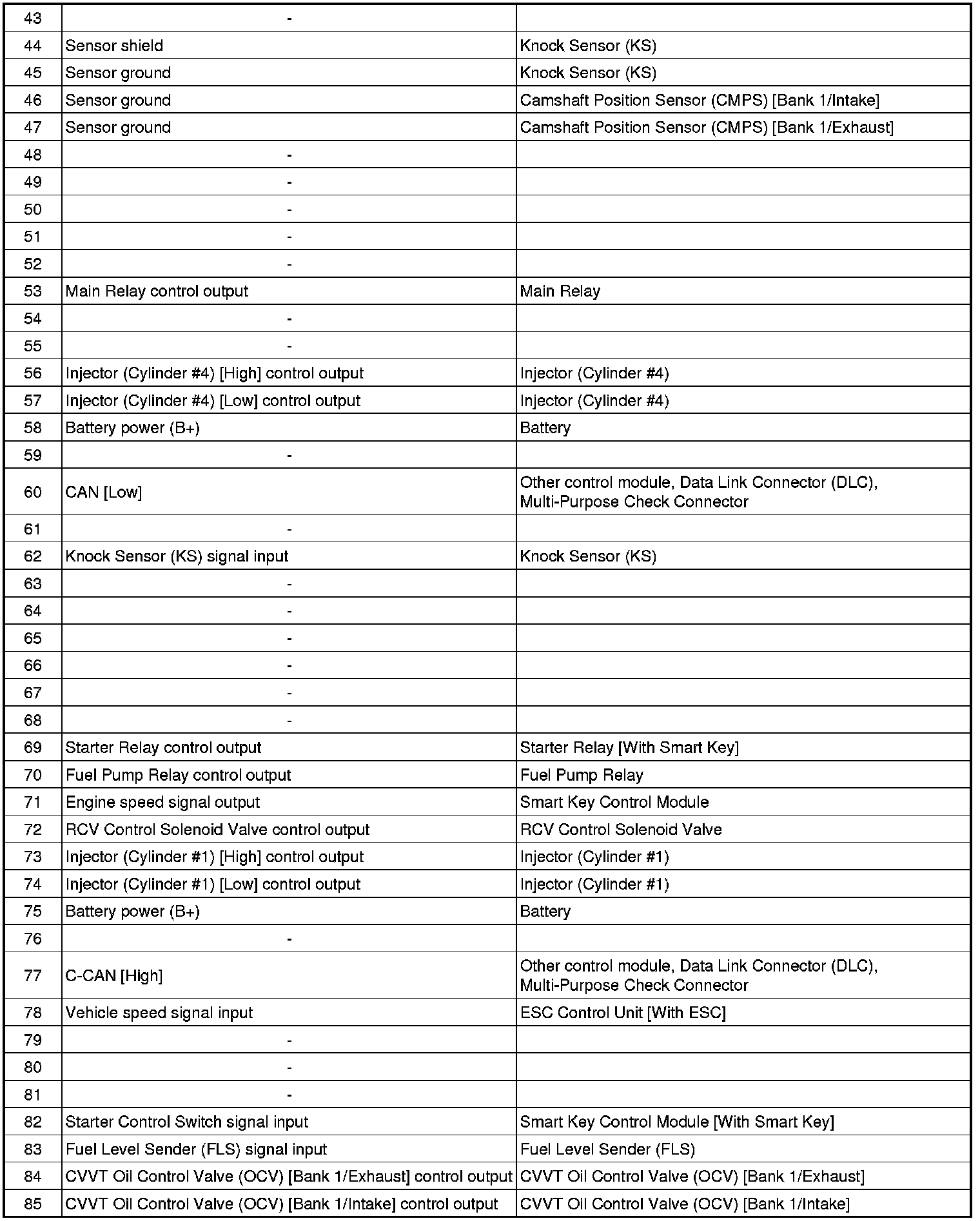

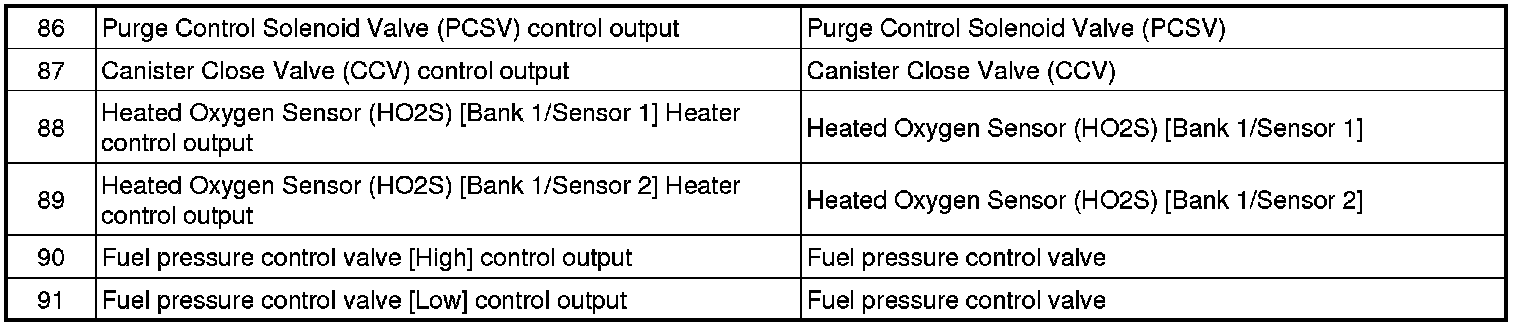

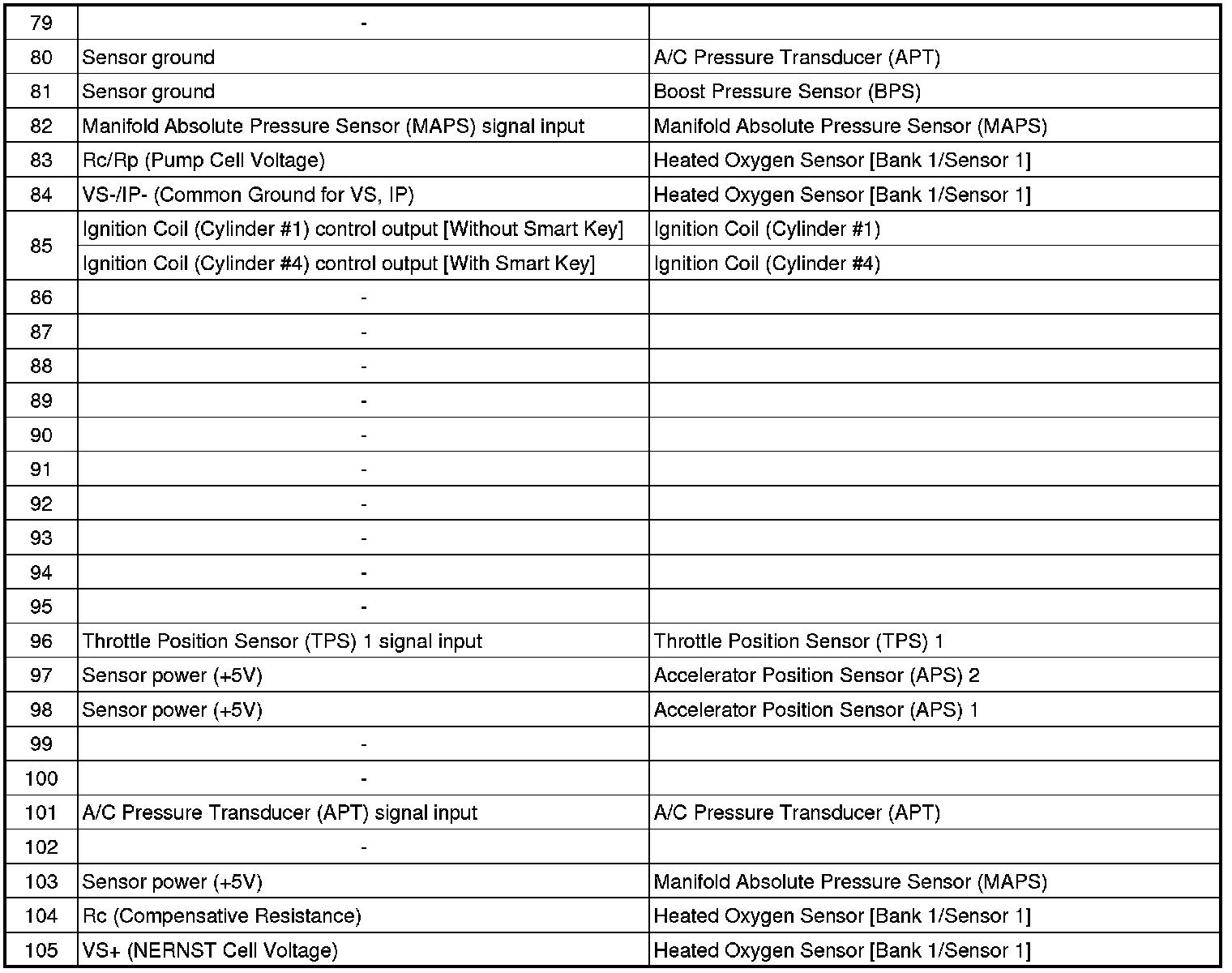

ECM Terminal Function

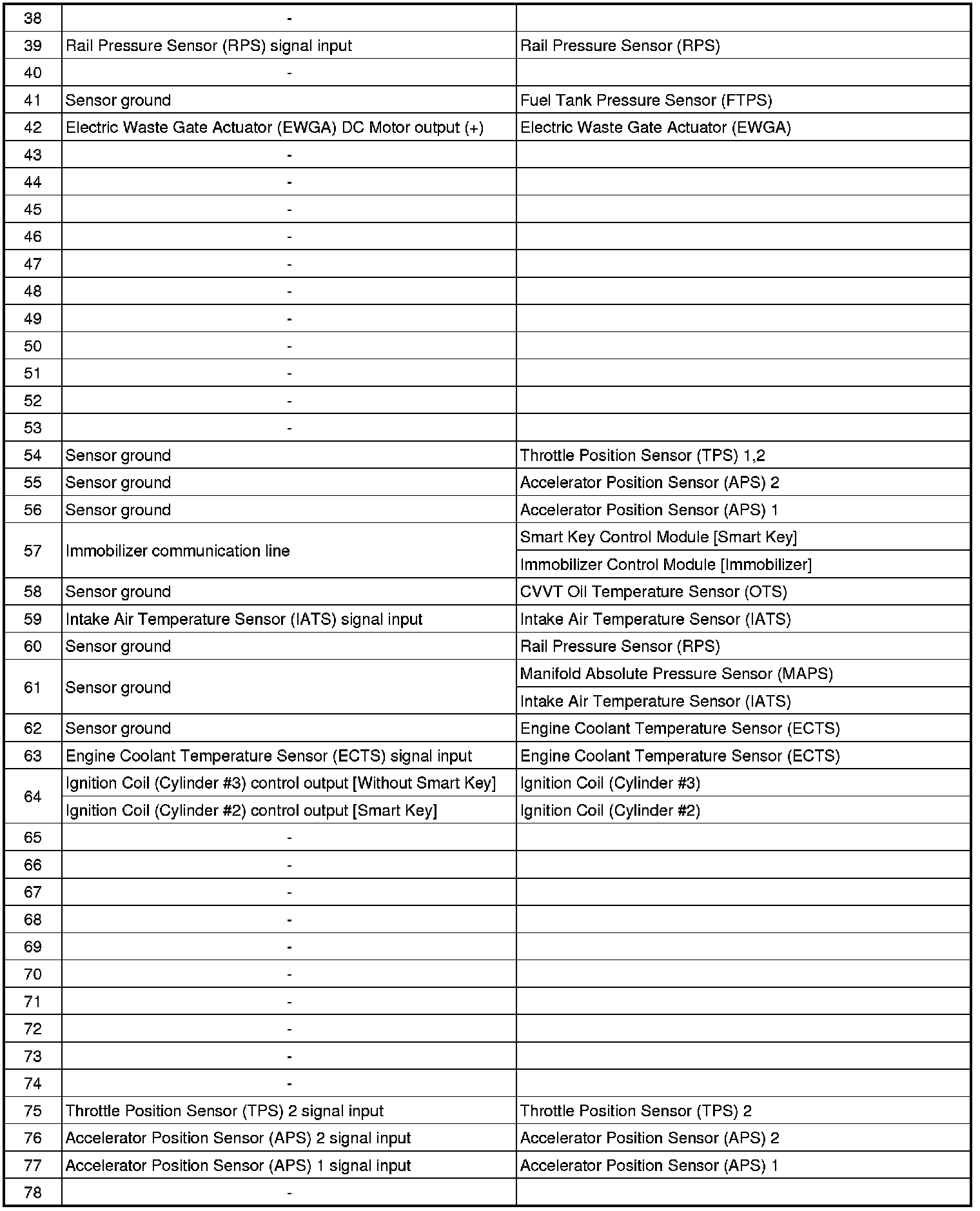

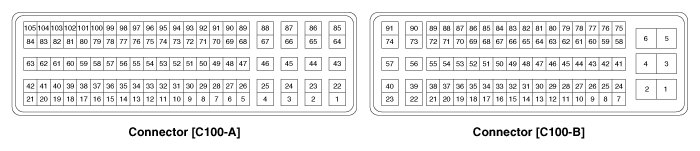

Connector [C100-A]

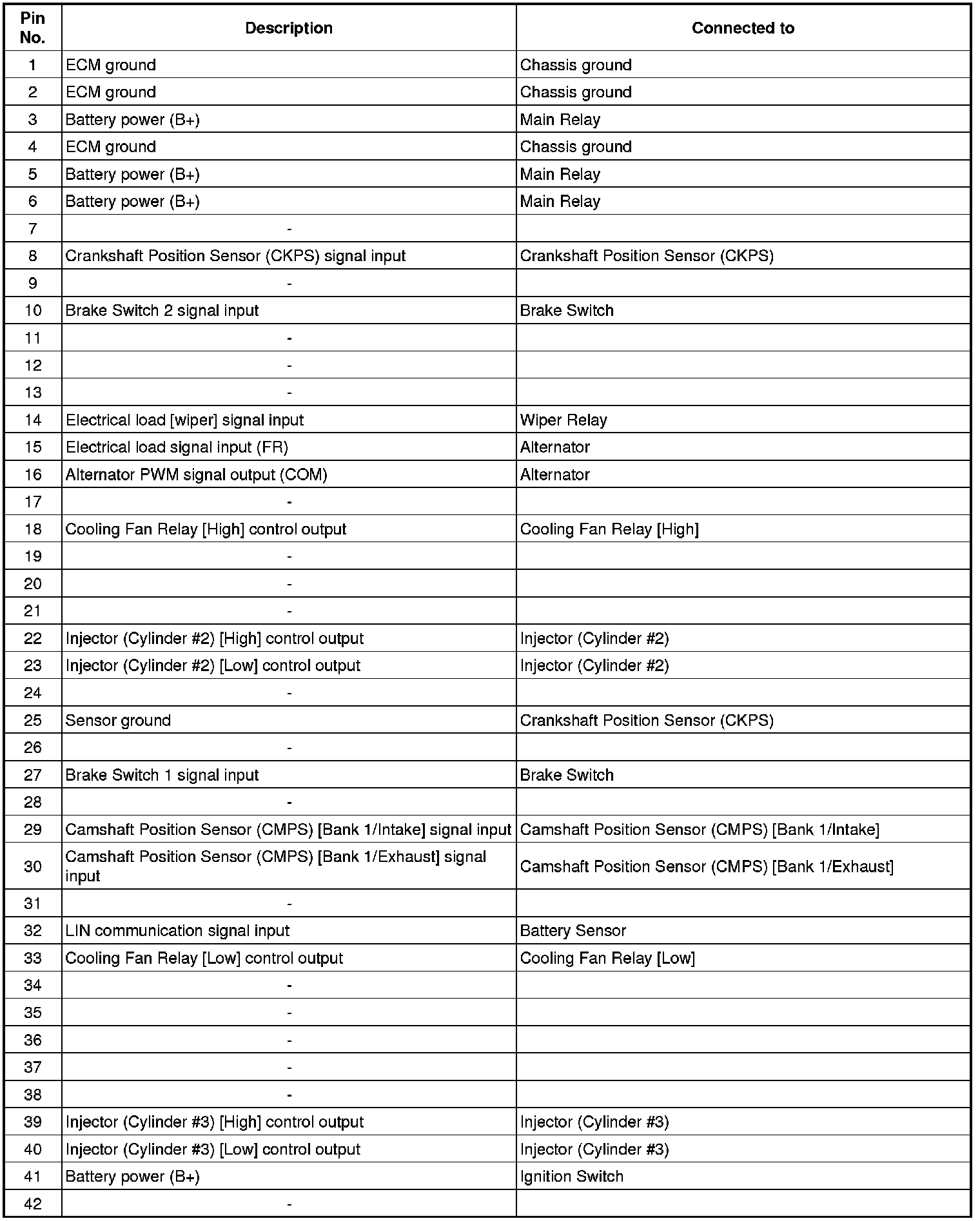

Connector [C100-B]

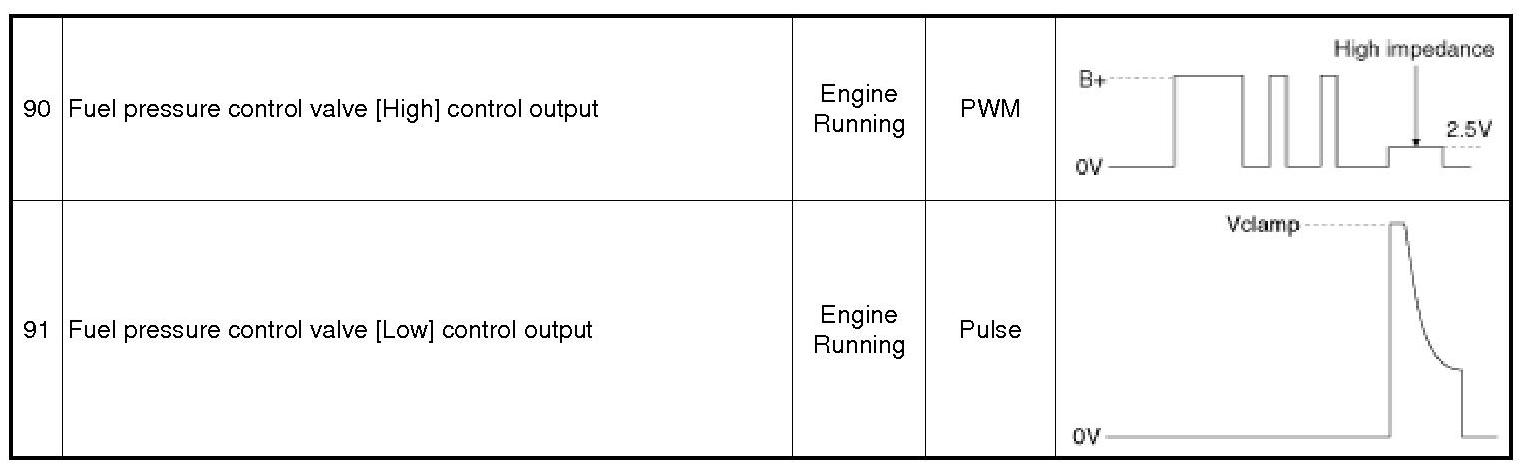

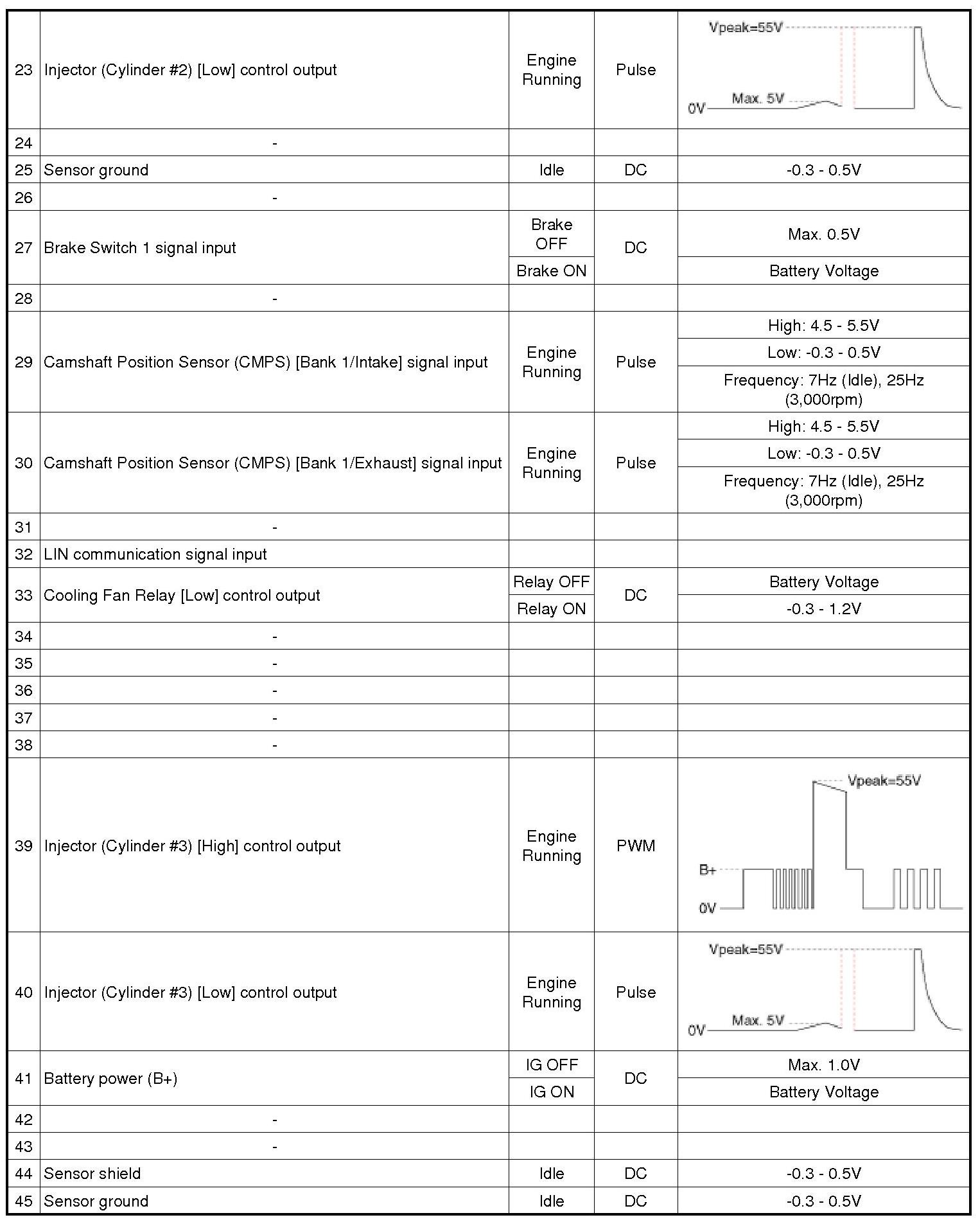

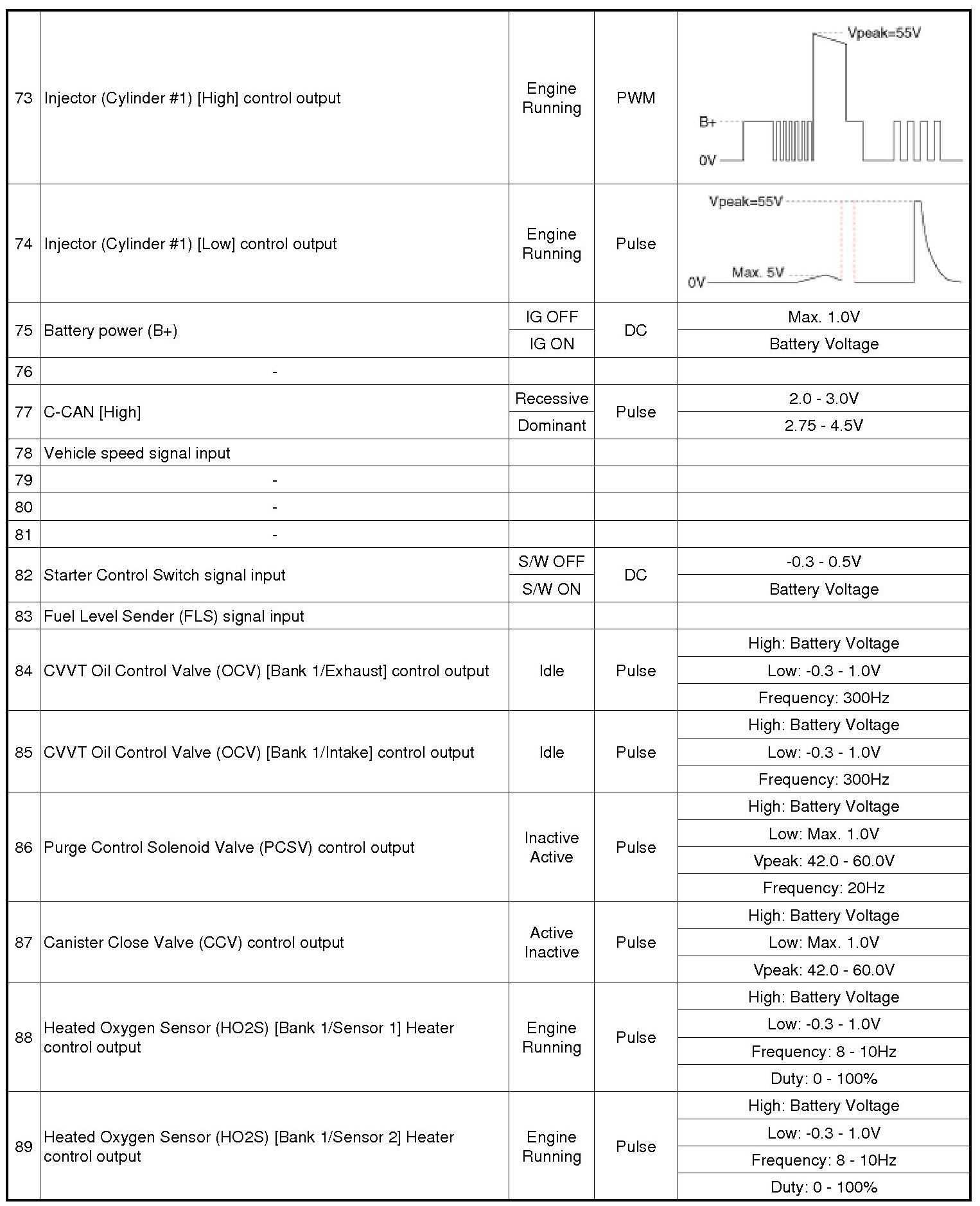

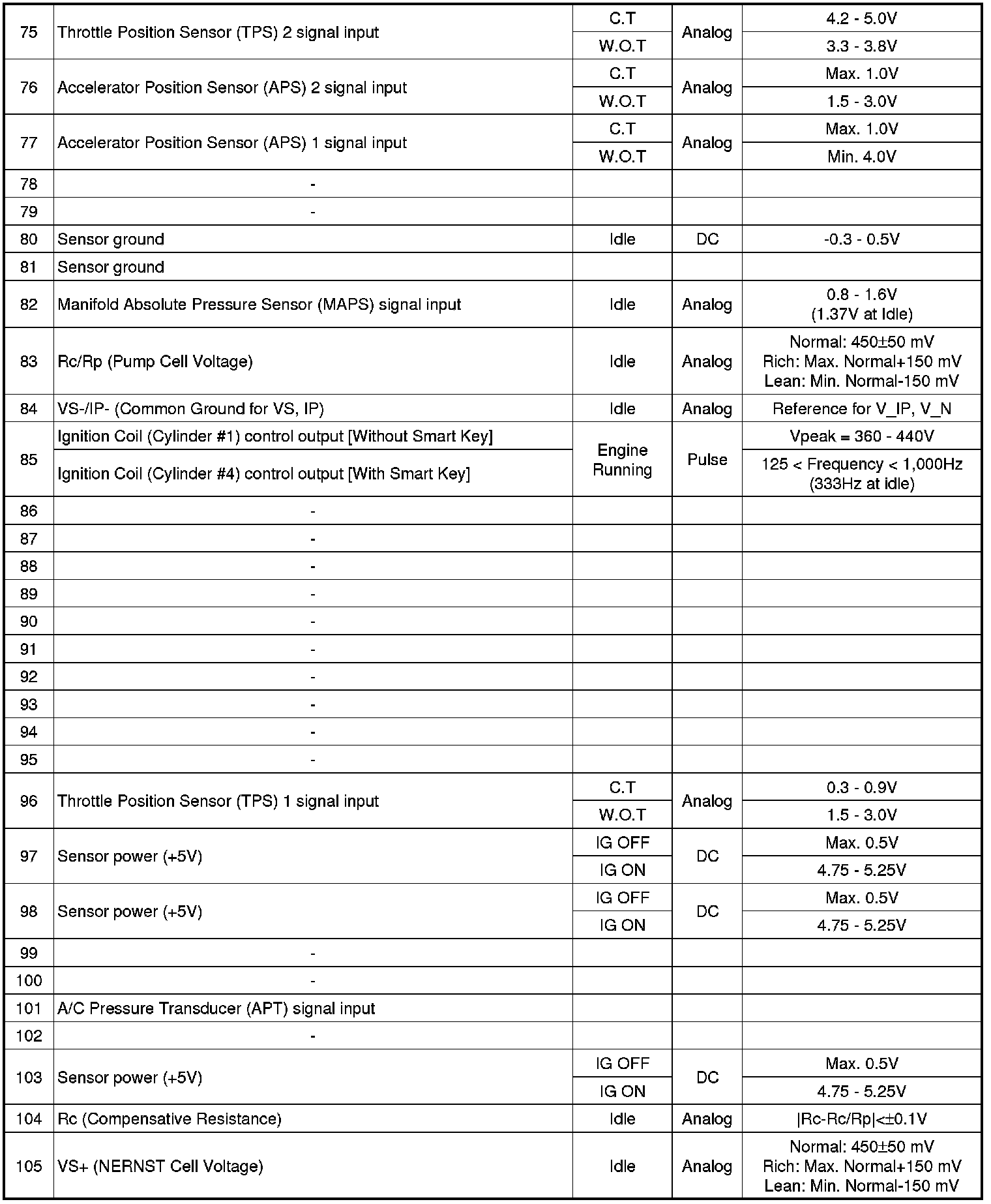

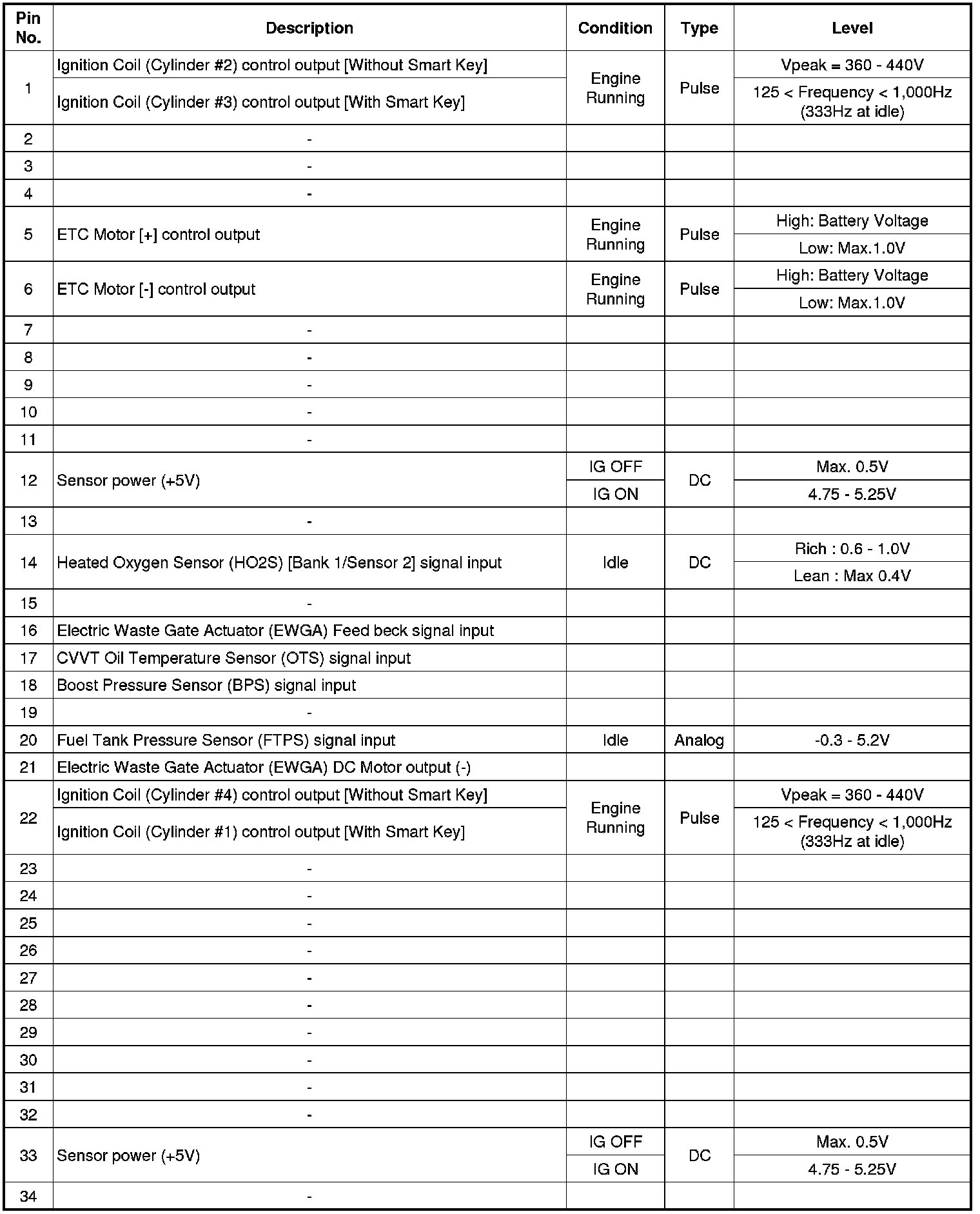

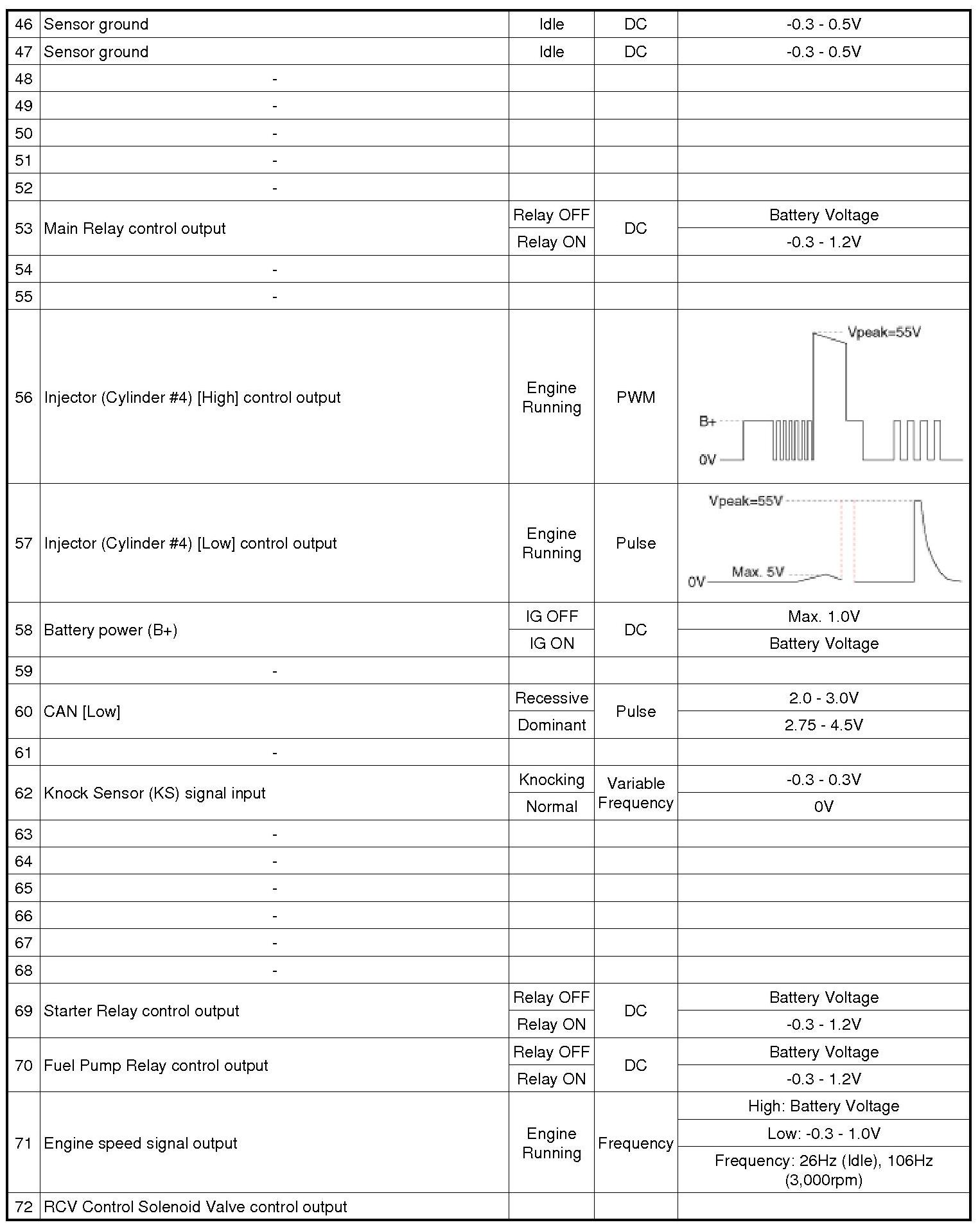

ECM Terminal Input/ Output signal

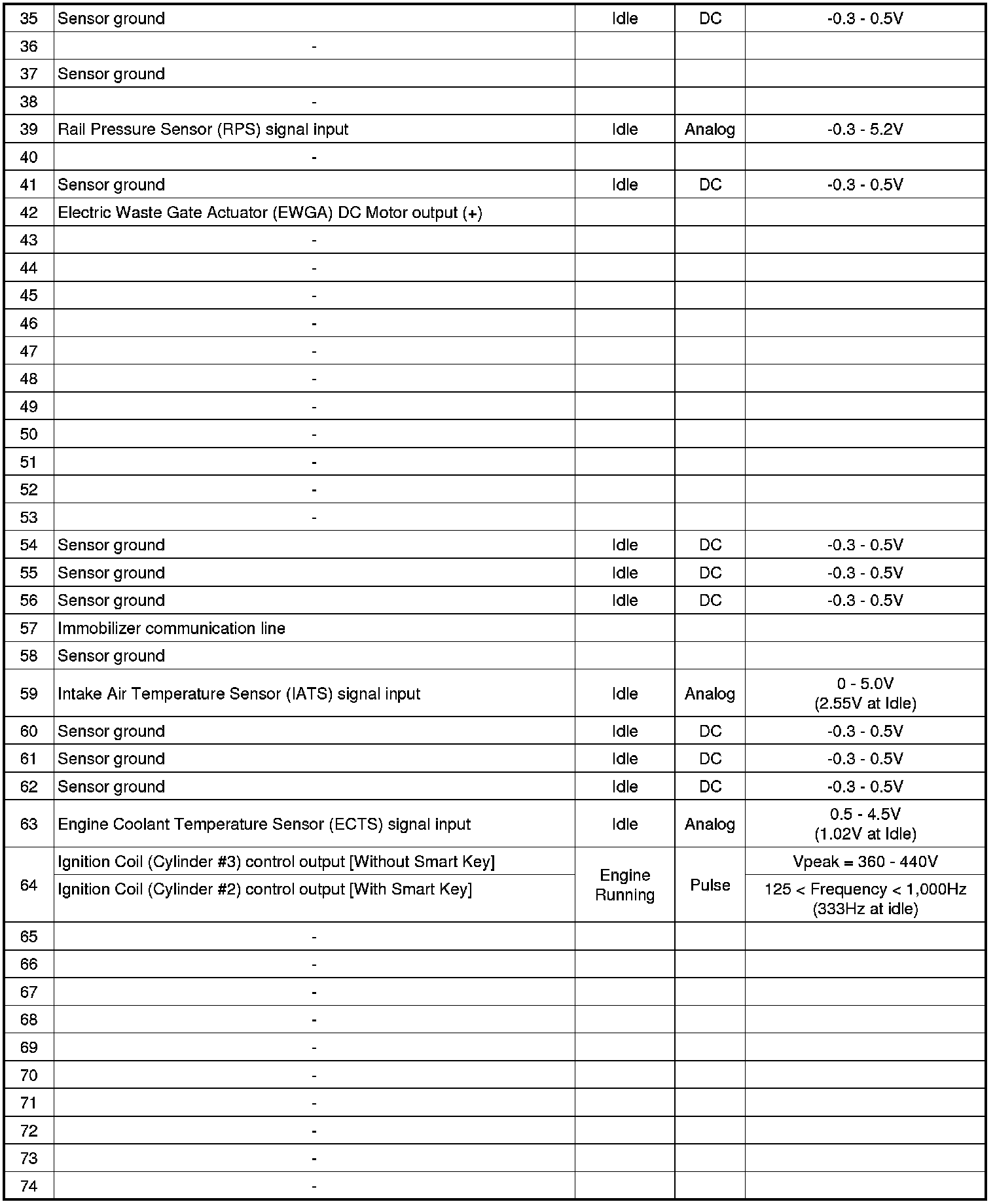

Connector [C100-A]














Connector [C100-B]

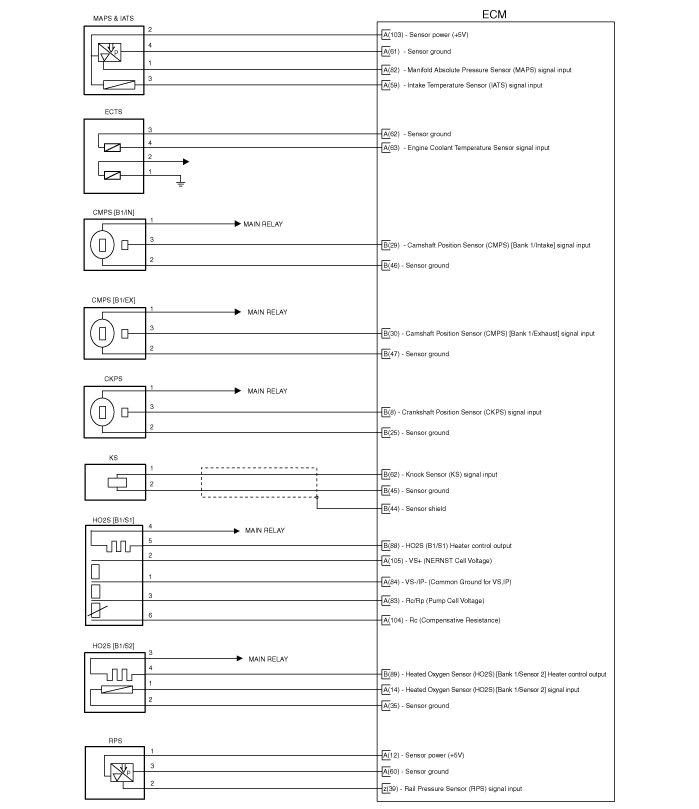

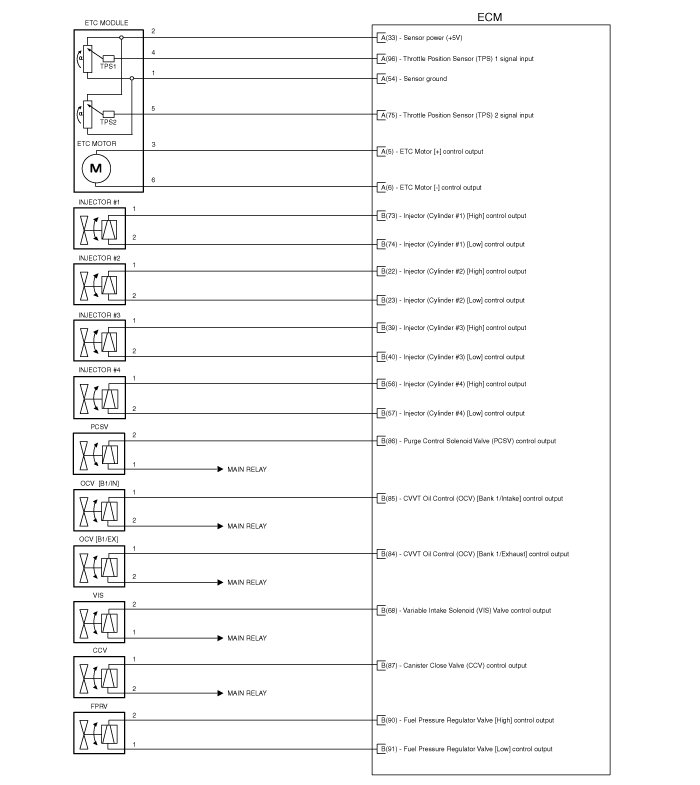

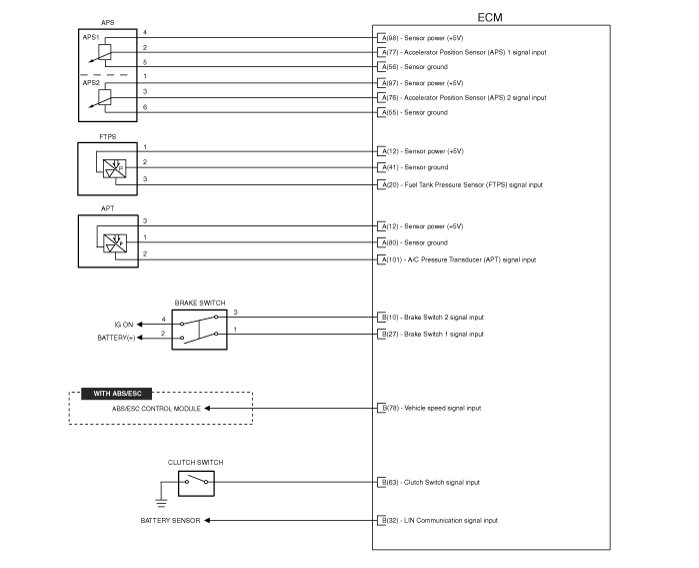

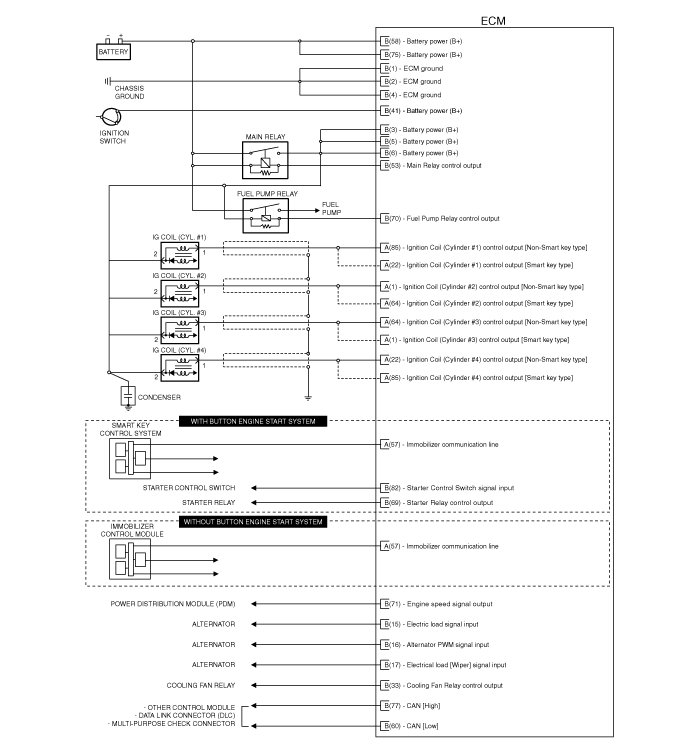

Circuit Diagram
