Operation CHARM
: Car repair manuals for everyone.
Home
>>
Hyundai
>>
1990
>>
Sonata V6-3.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
Federal and Canada
>>
Complete System Diagram
Complete System Diagram

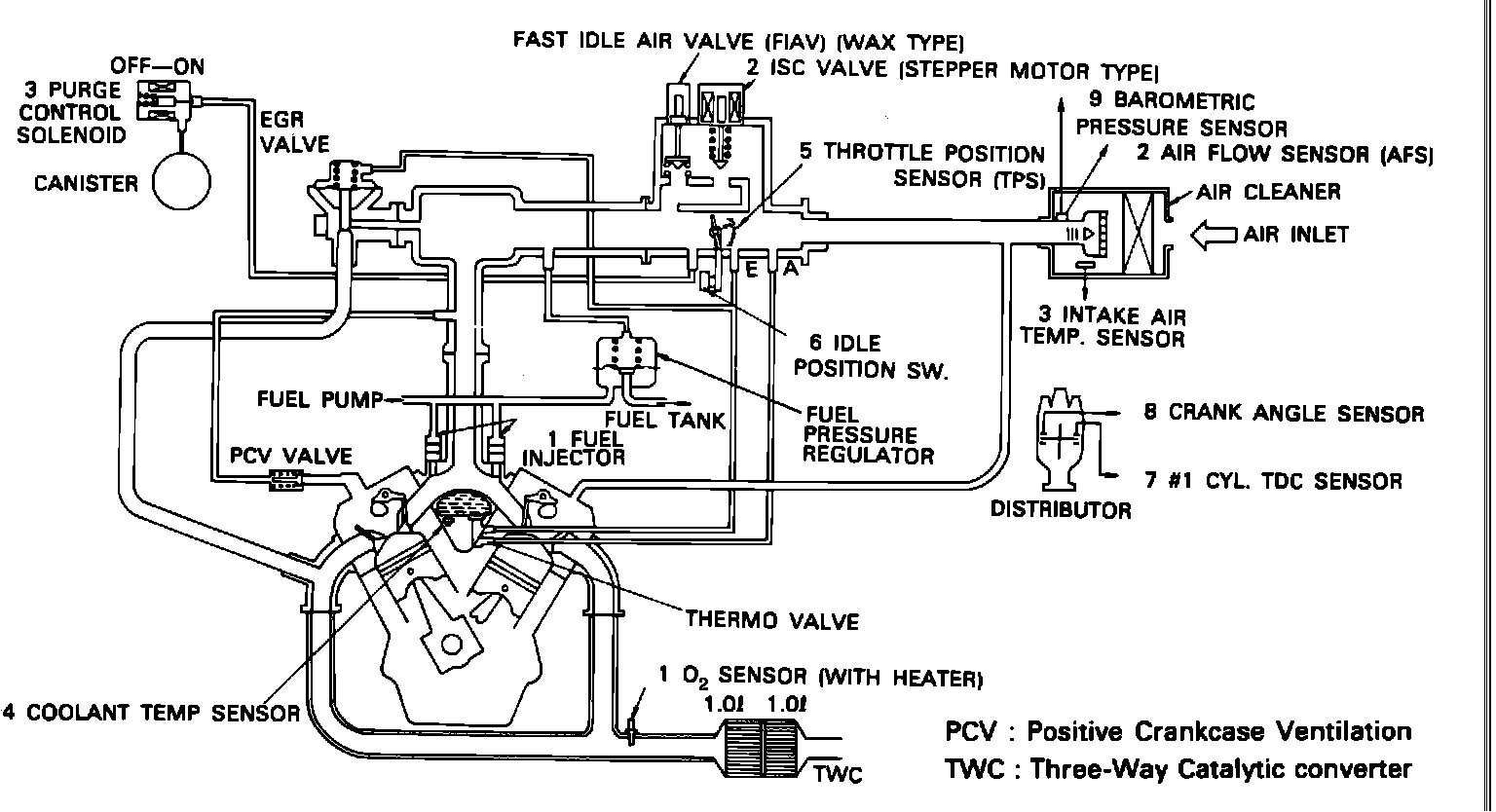

Vacuum System (Federal And Canada):
